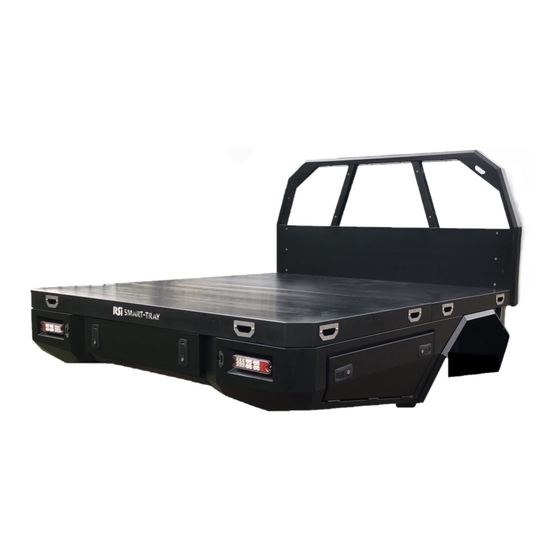

- Page 1 ASSEMBLY INSTRUCTIONS FORD / TOYOTA DC SMART TRAY PLEASE ENSURE TO READ ASSEMBLY INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO INSTALL. LIKE SHARE FOLLOW...
- Page 2 ASSEMBLY KIT CONTENTS ASSEMBLY KIT CONTENT (HARDWARE) DESCRIPTION EXAMPLE Nyloc Nut M6 M6 FLAT WASHERS M6 X 16 BUTTON HEAD SCREWS M10 X 30 SET SCREWS M10 FLAT WASHERS Nyloc Nut M10 ASSEMBLY KIT CONTENT (COMPONENTS) DESCRIPTION EXAMPLE FLAT DECK HEADER BOARD GUSSET DOCUMENT REVISION 1.
- Page 3 WARNING LABELS Ensure that only the recommended tools are used during the assembly procedure of the RSI SMARTCANOPY to avoid damaging the RSI SMARTCANOPY. Take note to the symbols indicating possible safety hazards during assembly and to use the relevant personal protective equipment and safety measures as indicated.
- Page 4 2. ONLY USE THE HARDW ARE PROVIDED IN THE ASSEMBLY KIT OUTLINED ON THE PAGE BEFORE 3. HANDLE ALL RSI SMARTCANOPY COMPONENTS WITH CARE UPON UNPACKING 4. TO AVOID SCRATCHING DO NOT PLACE RSI SMARTCANOPY COMPONENTS ON A ROUGH SURFACE 5. NEVER USE ACETONE ON PAINTWORK STEP 1.
- Page 5 ASSEMBLY OF THE RSI SMARTDECK ENSURE HEADERBOARD IS SQUARE(90 DEGREES). STEP 1. ONCE THE HEADERBOARD IS BOLTING ON STRAIGHT AND SQUARE, BOLT ON THE FRONT GUSSET. 2. ONLY USE THE HARDWARE DEPICTED BELOW, WORK WITH CAUTION TO AVOID ANY UNNECESSARY THREE FORMS OF DAMAGE.
- Page 6 ASSEMBLY OF THE RSI SMARTDECK GUSSETS BOLTED IN PLACE. 1. ONCE YOU HAVE REACHED THIS STEP PLEASE MAKE SURE THAT THE HEADERBOARD IS STRAIGHT AND SQUARE, THEN MAKE SURE ALL FIXINGS ARE SUFFICIENTLY TIGHTENED, EVEN THE BOLTS HOLDING STEP THE GUSSETS IN PLACE. 2.
