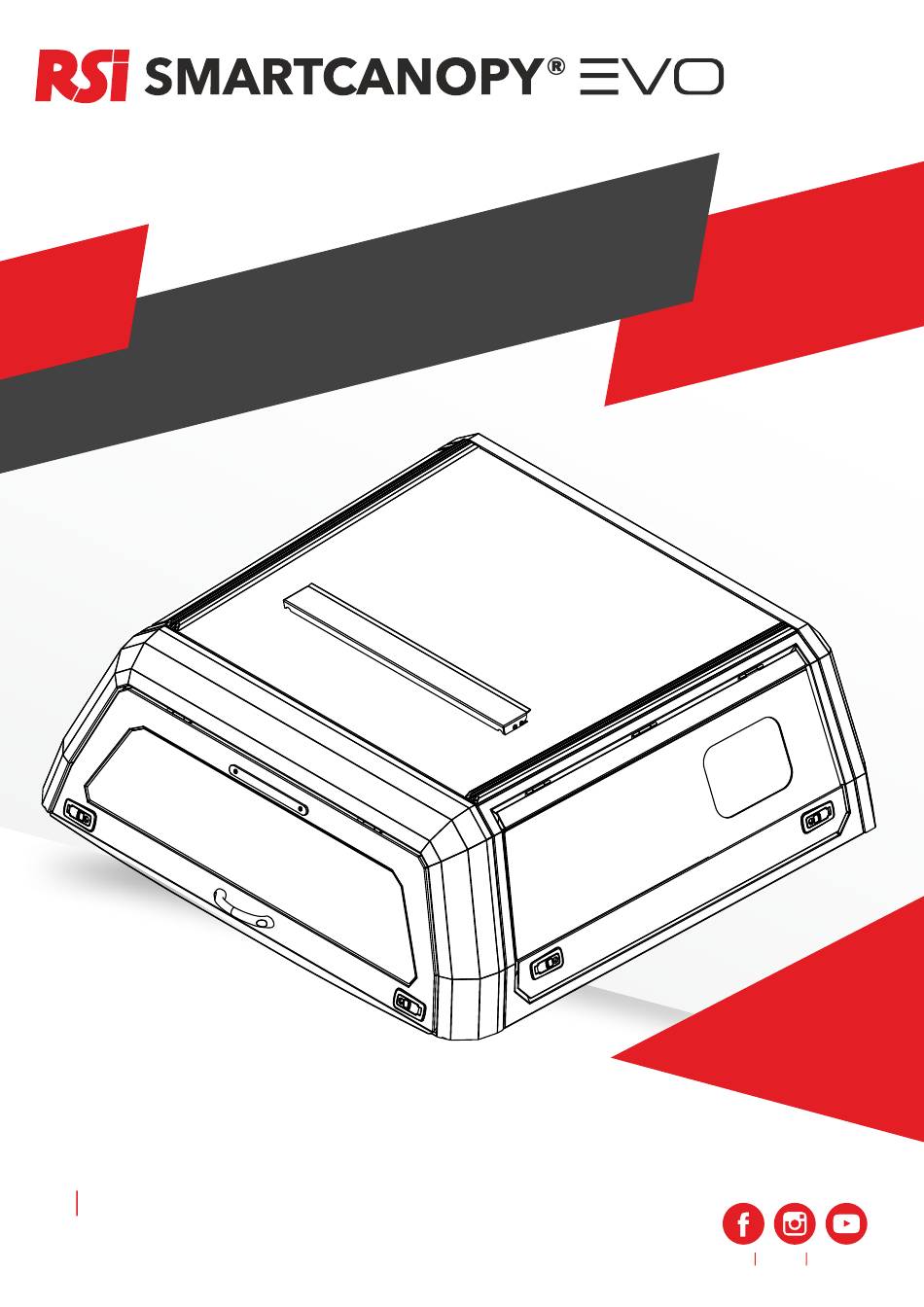

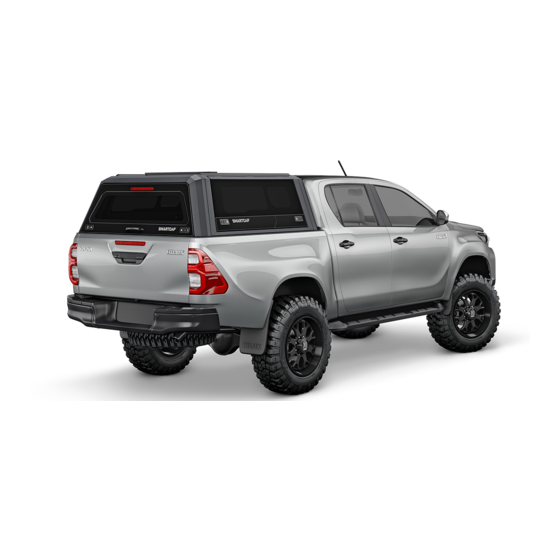

ASSEMBLY INSTRUCTIONS
VW AMAROK
PLEASE ENSURE TO READ ASSEMBLY INSTRUCTIONS CAREFULLY
BEFORE ATTEMPTING TO ASSEMBLE.
LIKE SHARE FOLLOW

Advertisement

loading
Need help?

Need help?

Do you have a question about the EVO and is the answer not in the manual?

Questions and answers

Related Manuals for RSi Smartcanopy EVO

Summary of Contents for RSi Smartcanopy EVO

  • Page 1 ASSEMBLY INSTRUCTIONS VW AMAROK PLEASE ENSURE TO READ ASSEMBLY INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE. LIKE SHARE FOLLOW...
  • Page 2 ASSEMBLY KIT CONTENTS ASSEMBLY KIT CONTENT (HARDWARE) DESCRIPTION EXAMPLE 8 / 8 M6 X12 Button Head Screw / End Caps M6 X 12 SET SCREWS Nyloc Nut M6 M6 Fastener Block M6 X 25 FENDER WASHER M6 Flat Washer Load Spreader Plates ASSEMBLY KIT CONTENT (COMPONENTS) DESCRIPTION EXAMPLE...

  • Page 3: Front End

    WARNING LABELS Ensure that only the recommended tools are used during the assembly procedure of the RSI SMARTCANOPY to avoid damaging the RSI SMARTCANOPY. Take note to the symbols indicating possible safety hazards during assembly and to use the relevant personal protective equipment and safety measures as indicated.
  • Page 4 2. ONLY USE THE HARDW ARE PROVIDED IN THE ASSEMBLY KIT OUTLINED ON THE PAGE BEFORE 3. HANDLE ALL RSI SMARTCANOPY COMPONENTS WITH CARE UPON UNPACKING 4. TO AVOID SCRATCHING DO NOT PLACE RSI SMARTCANOPY COMPONENTS ON A ROUGH SURFACE 5. NEVER USE ACETONE ON PAINTWORK STEP 1.
  • Page 5 STEP 1. LOCATE BOTH SIDE PANELS AND PLACE THEM EITHER SIDE OF THE ROOF AS INDICATED (PLEASE NOTE THAT THE BLUE STICKERS MUST BE ORIENTATED TO THE ONE SIDE OF THE RSI SMARTCANOPY AND THE THREE RED STICKERS TO THE OTHER.
  • Page 6 ASSEMBLY OF THE RSI SMARTCANOPY 1. ALIGN THE FRONT END TO THE SIDE PANELS AND ROOF ASSEMBLY, THE FL, FR RED ORIENTATION STICKERS SHOULD BE ON THE SAME SIDE. USING THE M6 FASTENER BLOCKS AND ITS RELATIVE STEP FASTENERS, BOLT THE FRONT FLANGE TO THE SIDE PANEL AND ROOF. TIGHTEN SUFFICIENTLY.
  • Page 7 ASSEMBLY OF THE RSI SMARTCANOPY STEP 1. BOLT THE SIDE PANELS TO THE REAR FLANGE USING THE CORRECT FASTENERS. ENSURE THE REAR FLANGE SLIDE OVER THE SIDE PANELS SEVEN USE 2X M6X12 BUTTON HEAD SCREWS, 4X M6 FLAT WASHERS AND 2X M6 NYLOC NUTS.
  • Page 8 4. REMOVE THE ADHESIVE BACKING ON THE D-RUBBER PROGRESSIVELY AS YOU START TO STICK DOWN THE RUBBER ONTO THE RSI SMARTCANOPY FOLLOWING THE EDGE ALL THE WAY ROUND. When sticking the rubber on the front part of the canopy, when edges start to lift, stick it back down to the canopy using a very small amount of glue...
  • Page 9 ASSEMBLY OF THE RSI SMARTCANOPY STEP 5. CUT THE OVERHANG ON THE D-RUBBER SHORTER, BE SURE TO LEAVE SOME OVER HANG IN ORDER ELEVEN TO HELP SEAL THE REAR. Cut straight. THANK YOU FOR PURCHASING A RSI SMARTCANOPY. SHOULD YOU HAVE ANY ENQUIRIES ABOUT THE ASSEMBLY, FEEL FREE TO CONTACT US...
