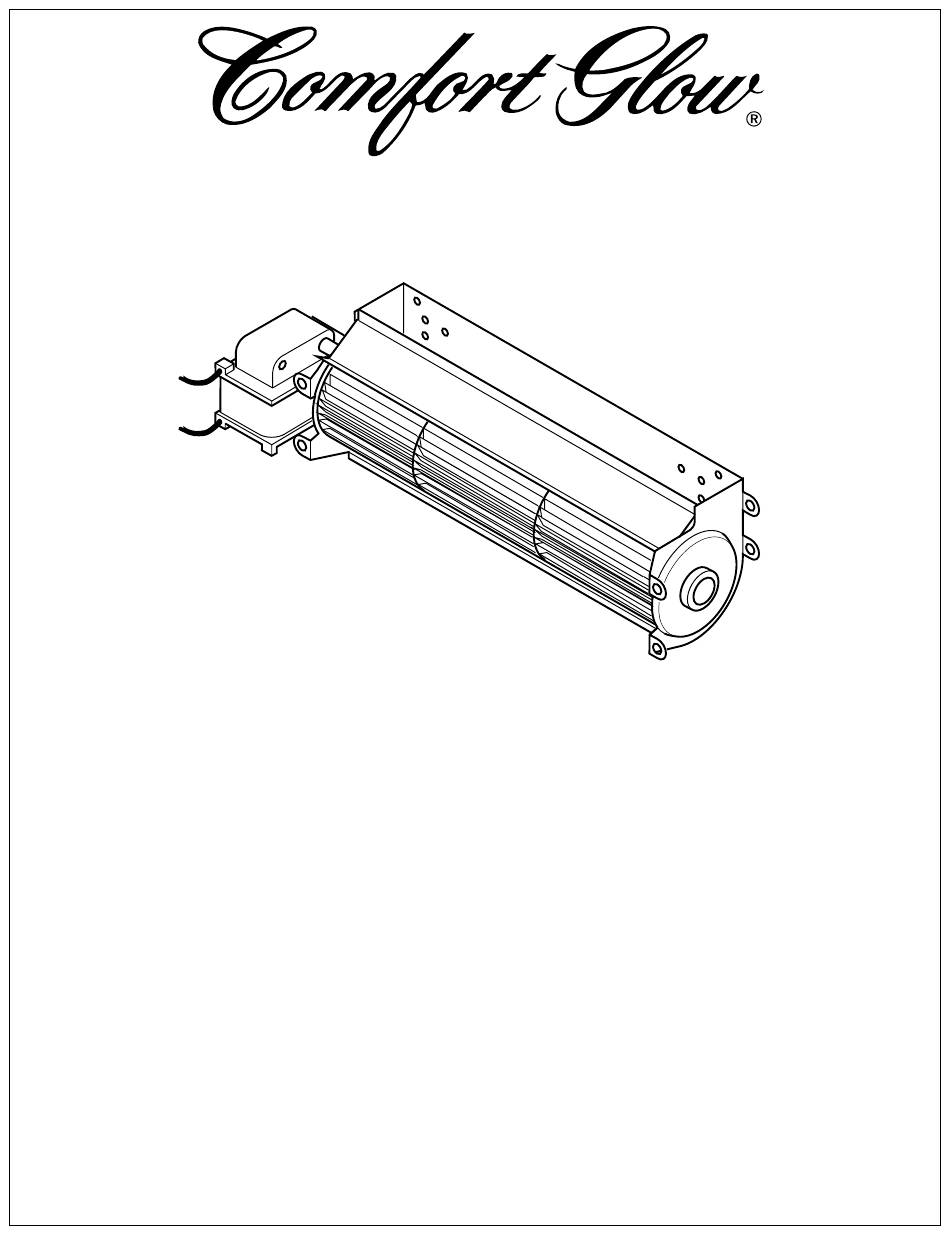

INSTALLATION INSTRUCTIONS FOR
GA3750 BLOWER ACCESSORY
Note: This blower kit should be used with Comfort Glow model CGFB32C
or CGFB36C Series fireboxes; or model CGFP28N, CGFP28P, CGFP28NT,
CGFP28PT, LFP33NR, LFP33PR Series fireplaces; or model CDV or
CHDV Series Comfort Glow direct vent fireplaces.
Parts included with this kit:
Part No.
103649-01
103650-01
103651-01
M11084-38
101629-01
101584-05
Tools Required
• Pliers
• Phillips Screwdriver
If any of these pieces are missing or damaged, or if the installation instructions for your
fireplace or stove are not included in this manual, contact the dealer where you purchased
this kit or DESA International at 1-800-972-7879 for referral information.
Description

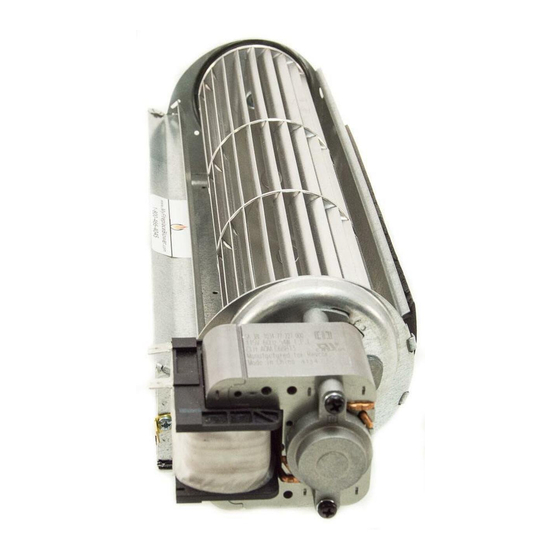

Blower with speed control and 6-foot cord.
Instruction Sheet
Mounting Hardware Kit (includes all parts below)
Control Knob
Lock Nut
#8 x 3/8" sheet metal screws
Plastic Hole Bushings
Wiring Diagram Decal
Quantity
1
1
1
1
4
2
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Desa Comfort Glow GA3750
Summary of Contents for Desa Comfort Glow GA3750
- Page 1 If any of these pieces are missing or damaged, or if the installation instructions for your fireplace or stove are not included in this manual, contact the dealer where you purchased this kit or DESA International at 1-800-972-7879 for referral information.
- Page 2 Installing GA3750 Blower Accessory in Comfort Glow Model CGFB32C Series Firebox and turning lock nut with pliers clock- Check to make sure that the power cord NOTICE: If a log set is currently wise until it is tight against front panel. is completely clear of the blower wheel installed in the firebox, discon- Place control knob provided on shaft...
- Page 3 Installing GA3750 Blower Accessory in Comfort Glow Direct Vent Fireplace Models CDV and CHDV Series Remove screws securing the plate con- Check to make sure that the power cord NOTICE: Shut off gas supply and taining the ON/OFF switch to the bot- is completely clear of the blower wheel disconnect heater from gas sup- tom of the firebox and set aside.
- Page 4 Installing GA3750 Blower Accessory in Comfort Glow Fireplace Models CGFP28N, CGFP28P, CGFP28NT, CGFP28PT, LFP33NR, or LFP33PR Series 5. Be certain that all wire terminals are b. If your fireplace system installation NOTICE: Shut-off gas supply and securely attached to terminals on is recessed, you must install GA3555 disconnect heater from gas sup- blower motor and that the screw retain-...
- Page 5 Bushing 120 Vac. 60 Hz. . 78 Amps Figure 12 - Installing Plastic Bushing for 101584-05 DESA International, Bowling Green, KY Power Cord Figure 13 - Location of Wiring Diagram Decal, 12" in Front of Blower and 3" from Blower Speed Control...
- Page 6 2701 Industrial Drive, P.O. Box 90004 Bowling Green, KY 42102-9004 Technical Service Department 1-800-323-5190 Parts Department 1-800-972-7879 103964 01 NOT A UPC 103964-01 REV. D 11/98...
