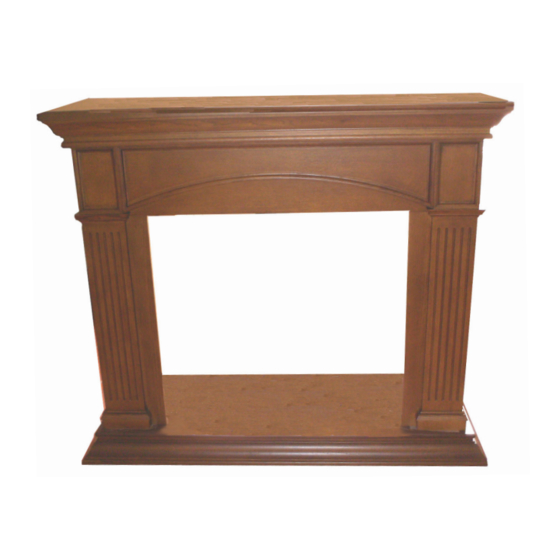

Desa Mantel and Base W32RO Assembly And Installation Instructions

Important: Read entire instruction sheet before
assembling or installing mantel kit.
this mantel is only approved for use with DesA
Heating, LLC 32" fireplace systems. Do not use
mantel with any other product.
This mantel kit contains the following:
• Mantel pieces - unassembled and marked as follows:
#1 Base
#2 Right Side with arrow
#3 Right Front Leg with arrow
#4 Left Side with arrow
#5 Left Front Leg with arrow
#6 Header with arrow
#7 Top
• Hardware Kit*
14 - Metal Brackets
28 - Screws M6 x 12 mm (1/2")
11 - Screws M6 x 30 mm (1
11 - Washers M6
1 - Allen Wrench
* Extra hardware may be included.
If any wood pieces are missing or damaged, contact the
dealer where you purchased this mantel for replacement.
If hardware is missing or damaged, contact DESA Heating,
LLC at 1-866-672-6040 for referral. You can also visit DESA
Heating, LLC's web site at www.desatech.com.
Note: Gather all mantel pieces together before assembling.
W32RO Mantel and Base

asseMBlY and InstallatIOn InstRUCtIOns

118937-01
121149-01
1 / ") 121335-01
4
121336-01
121337-01
www.desatech.com

Assembling mAntel

WARning: Use only 1/2" screws to attach metal
angle brackets. Damage to mantel will result if other
screws are used for this purpose.
imPORtAnt: more than one person is required to lift
assembled mantel. lift mantel by leg assemblies. lifting
by header or mantel top could damage mantel.
When assembling mantel do not tighten screws completely
until told to do so. There should be some play in the pieces
to allow for proper alignment and best possible fit. It is very
important that more than one person assemble mantel. Panels
must be held in proper alignment to each other while tighten-
ing screws to assure fewer gaps and proper surface align-
ment. When tightening screws, do not over tighten. This may
cause threads to strip. The supplied Allen wrench should be
used rather than a power screwdriver. Panels have threaded
inserts installed at screw locations. Screws should start and
turn easily in threaded holes when assembled according to
instructions. Do not force screws into holes.
IMPORTANT: A serial number label is located inside of right
side panel and on outside package. When calling to request
technical assistance or for replacement parts please have
serial number ready.
