1.7. Connecting the IP camera with B-Smart function in conjunction with the
Behnke a/b door intercom series 20 (20-/21-/50-2907A-IP, 43-9587A,
50-1204A/-1207A)
▸

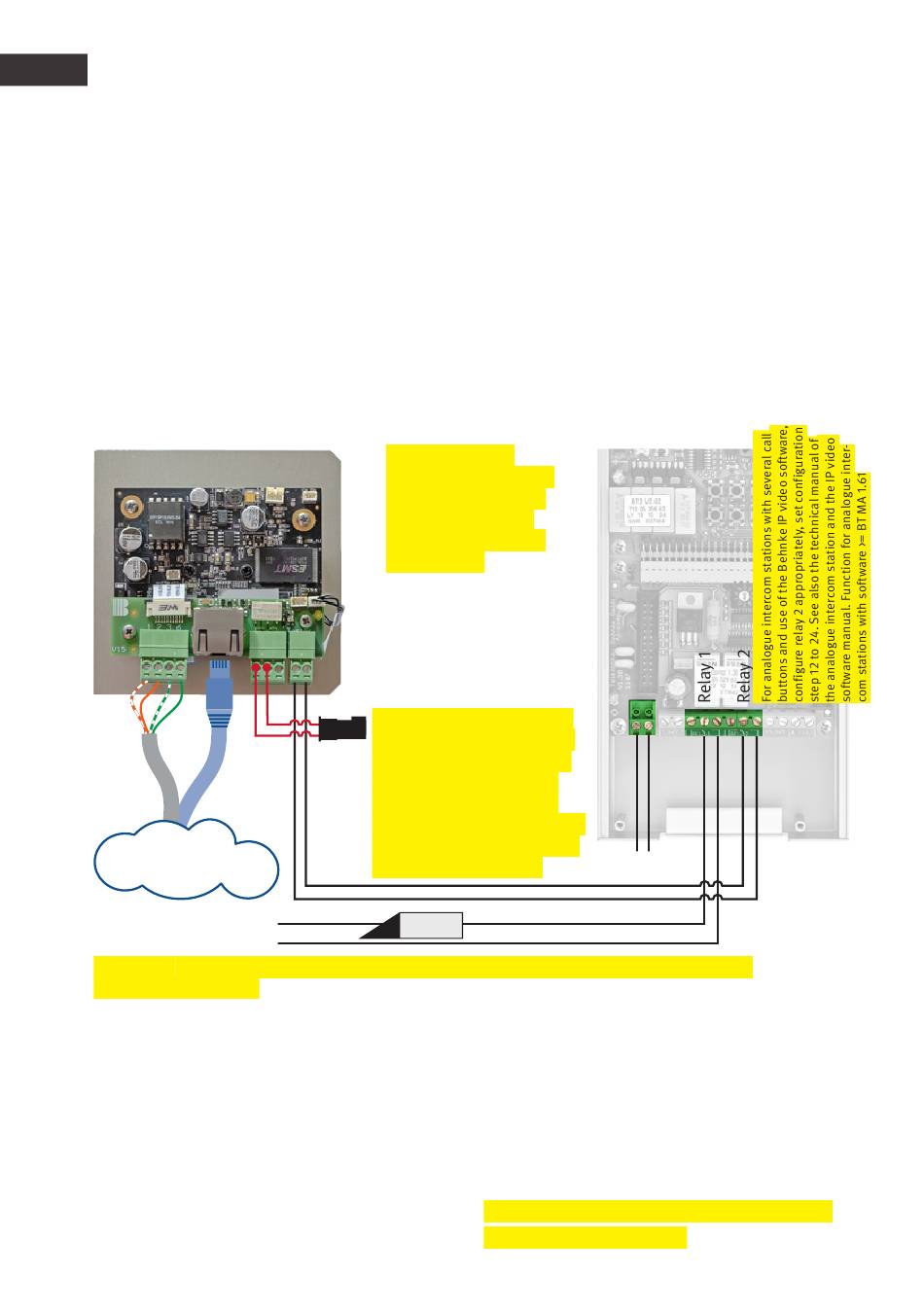

IP camera with B-Smart function (20-/21-/50-2907A-IP, 43-9587A, 50-1204A/-1207A) in conjunc-
tion with an analogue Behnke door intercom series 20 (20-0001,/-0002/-0005/-0006/-0013
*
-0014/-0041
▸ The camera with B-Smart function only supports video and a open door function via app.
▸
Camera power supply through POE class 0
or
Network
Voltage supply
on site.
Important: Observe the relay switching capacities in the camera specifications and the
a / b intercom station.
*
2
1. Connect the wire pair with MQS plug to the
flat ribbon cable of button 8 (T8) (female MQS
connector).
2. Configure the a / b intercom station (see type
above and intercom station itself ) as follows:
*0000 Enter Set-Up mode 28 (configuration key
8) *71 # (if door opening is done via relay 1 of
the a / b intercom station). Alternatively for door
opening via relay 2 of the a / b intercom station:
50
/-0043)
This connection to the a / b
intercom station is required
*
2
for door opening via app or
for door opening with the
Behnke IP video software
(license required). Attention:
a maximum of 7 call buttons
*
1
can then be connected.
Connecting cable
between the IP camera
with B-Smart function
and the Behnke a/b
intercom relay cannot
exceed 50 cm
Open door
function
28 (configuration key 8) *72# (if door opening
is done via relay 2 of the a / b intercom station).
Important: Only one relay (relay 1 or 2) can be
switched at a time with this function. If relays 1
and 2 are to be energised simultaneously, they
must be configured as follows:
28 (configuration key 8) *73#
For relay configuration, refer to the instructions for your basic
electronics or the technical manual.
