- Page 1 Florastrasse 42, 8610 Uster, Switzerland +41 1 940 20 06 +41 1 940 22 14 http://www.weiss.ch / http://www.weiss-highend.com GAMBIT ADC2 OPERATING MANUAL Software Version:...

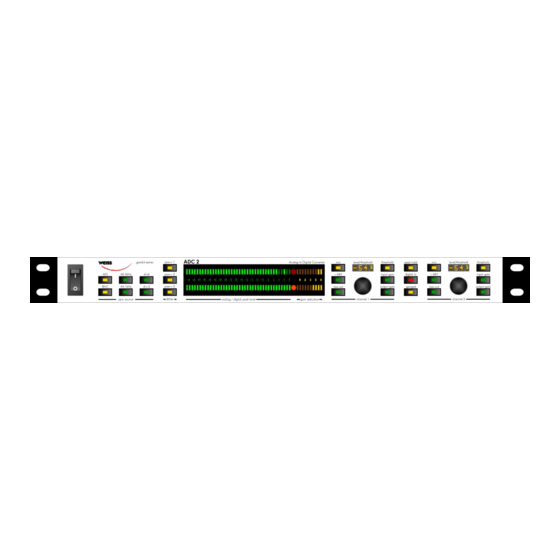

- Page 2 OPERATING INSTRUCTIONS FOR GAMBIT ADC2 24Bit / 192kHz A/D CONVERTER INTRODUCTION INTRODUCTION Congratulations on purchasing the Weiss Gambit Series ADC2 A/D Converter ! The ADC2 is a two channel A/D converter de- Synchronization signed for most demanding audio applications. It Internal sync selectable 44.1kHz, 48kHz,...
-
Page 3: Operation
“ganged” is “sidechain linking ” means that the same gain reduction is applied to both channels to avoid corrupting the stereo balance. Daniel Weiss Engineering Ltd., Florastr. 42, CH-8610 Uster Page 3 of 3 +41 1 940 20 06 +41 1 940 22 14 http://www.weiss. - Page 4 To clear the peak hold value, double-click the “peak hold” key! Double-click resets both input and output peak hold. Daniel Weiss Engineering Ltd., Florastr. 42, CH-8610 Uster Page 4 of 4 +41 1 940 20 06 +41 1 940 22 14...
- Page 5 –3 dBFS, Fig. 5 shows –6 dBFS. The range of possible threshold values is listed on p. 13. Daniel Weiss Engineering Ltd., Florastr. 42, CH-8610 Uster Page 5 of 5 +41 1 940 20 06 +41 1 940 22 14 http://www.weiss.
- Page 6 The term “black” comes from digital image formats, where black is represented by the value zero. Daniel Weiss Engineering Ltd., Florastr. 42, CH-8610 Uster Page 6 of 6 +41 1 940 20 06 +41 1 940 22 14...
- Page 7 (Fig. 8). Fig. 8 1kHz sine wave dithered to 16bit Daniel Weiss Engineering Ltd., Florastr. 42, CH-8610 Uster Page 7 of 7 +41 1 940 20 06 +41 1 940 22 14 http://www.weiss.
-
Page 8: Dip Switches
Table 3 AES OUT 2 WIRE switch in down position Daniel Weiss Engineering Ltd., Florastr. 42, CH-8610 Uster Page 8 of 8 +41 1 940 20 06 +41 1 940 22 14 http://www.weiss. ch weiss@weiss.ch... - Page 9 If another unit is connected, this dip switch must be in the up position. Daniel Weiss Engineering Ltd., Florastr. 42, CH-8610 Uster Page 9 of 9 +41 1 940 20 06 +41 1 940 22 14...
-
Page 10: Technical Data
110 Ohm Format: single wire or double wire for fs higher than 48kHz (switch selectable) Daniel Weiss Engineering Ltd., Florastr. 42, CH-8610 Uster Page 10 of 10 +41 1 940 20 06 +41 1 940 22 14 http://www.weiss. ch weiss@weiss.ch... - Page 11 110 / 220 Volts with voltage selector Fuse rating: 0.63A slow blow Power Consumption: 60VA max. Daniel Weiss Engineering Ltd., Florastr. 42, CH-8610 Uster Page 11 of 11 +41 1 940 20 06 +41 1 940 22 14 http://www.weiss. ch weiss@weiss.ch...
-
Page 12: Frequency Response
All measurements taken at the least sensitive setting of the input attenuators, i.e. +26dBu sensitivity for line and +6dBu sensitivity for mic inputs. (= sensitivity for 0dBFS output level). Daniel Weiss Engineering Ltd., Florastr. 42, CH-8610 Uster Page 12 of 12... -
Page 13: Parameter Tables
-2.6 , -2.4 , -2.2 , -2.0 , -1.8 , -1.6 , -1.4 , -1.2 , -1.0 , -0.8 , -0.6 , -0.4 , -0.2 , 0.0 Sampling Rate [kHz]: 44.1, 48.0, 88.2, 96.0, 176.4, 192.0 Daniel Weiss Engineering Ltd., Florastr. 42, CH-8610 Uster Page 13 of 13 +41 1 940 20 06 +41 1 940 22 14 http://www.weiss. - Page 14 Fig. 10 Output spectrum with 80dBFS / 1kHz sine wave, dithered to 16 Bits, using the three POW-R algorithms at 44.1kHz and 88.2kHz respectively Daniel Weiss Engineering Ltd., Florastr. 42, CH-8610 Uster Page 14 of 14 +41 1 940 20 06 +41 1 940 22 14 http://www.weiss.
