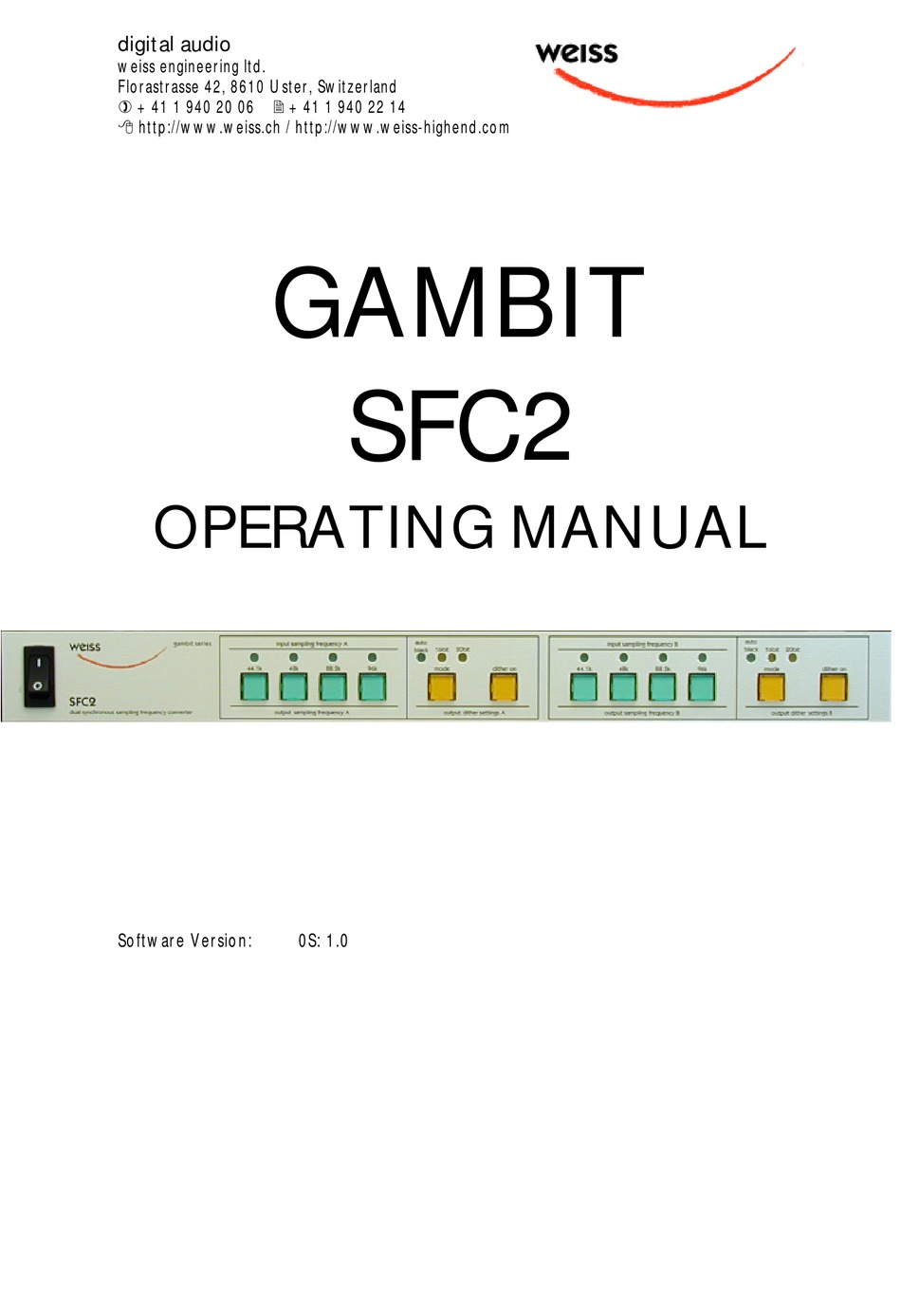

- Page 1 Florastrasse 42, 8610 Uster, Switzerland ) +41 1 940 20 06 2 +41 1 940 22 14 8 http://www.weiss.ch / http://www.weiss-highend.com GAMBIT SFC2 OPERATING MANUAL Software Version: 0S: 1.0...
-
Page 2: Table Of Contents
AES/EBU Input A & B __________________________________________________________________ 6 AES/EBU Output A & B_________________________________________________________________ 6 Power_______________________________________________________________________________ 6 Dither_______________________________________________________________________________ 7 Conversion Spectra ____________________________________________________________________ 8 Daniel Weiss Engineering Ltd., Florastr. 42, CH-8610 Uster Page 2 of 8 +41 1 940 20 06 +41 1 940 22 14 http://www.weiss.ch... -

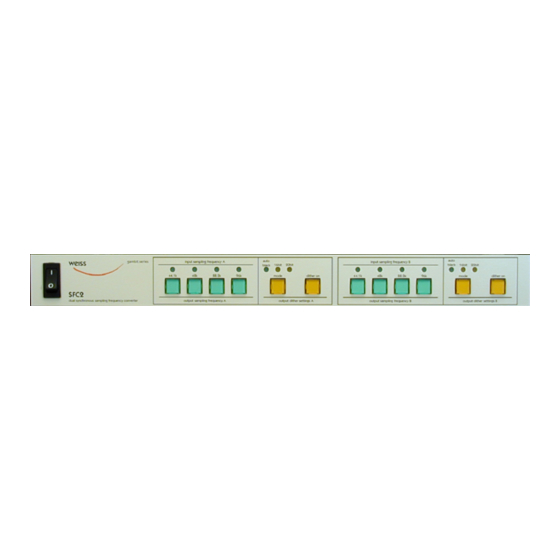

Page 3: Front Panel
Ž - Mains power switch This manual will explain how to operate the SFC2 according to these groups Daniel Weiss Engineering Ltd., Florastr. 42, CH-8610 Uster Page 3 of 8 +41 1 940 20 06 +41 1 940 22 14... -
Page 4: Introduction
OPERATING INSTRUCTIONS FOR GAMBIT SFC2 INTRODUCTION INTRODUCTION Congratulations on purchasing the Weiss Gambit Series SFC2 ! The main function of the SFC2 will be inte- Features grating playback or outboard equipment into Auto detection and display of input sam- an environment that either runs at double- or pling frequency standard-sampling frequency. -
Page 5: Operation
This ensures that breaks between programs are still at digital zero, regardless of dither. Daniel Weiss Engineering Ltd., Florastr. 42, CH-8610 Uster Page 5 of 8 +41 1 940 20 06 +41 1 940 22 14... -
Page 6: Technical Data
110 / 220 Volts with voltage selector Fuse rating: 500 mA slow blow Power Consumption: 40VA max Daniel Weiss Engineering Ltd., Florastr. 42, CH-8610 Uster Page 6 of 8 +41 1 940 20 06 +41 1 940 22 14 http://www.weiss.ch... -
Page 7: Dither
Graphic shows the same sine wave, but dithered to 16bit. This eliminates quantization distortion. Graphic 3: Sine wave dithered Daniel Weiss Engineering Ltd., Florastr. 42, CH-8610 Uster Page 7 of 8 +41 1 940 20 06 +41 1 940 22 14... -
Page 8: Conversion Spectra
1kHz Sine 0dB Converted From 44.1kHz to 96kHz -100 -120 -140 -160 -180 11719 23438 35156 46875 Frequency [Hz] Daniel Weiss Engineering Ltd., Florastr. 42, CH-8610 Uster Page 8 of 8 +41 1 940 20 06 +41 1 940 22 14 http://www.weiss.ch...
