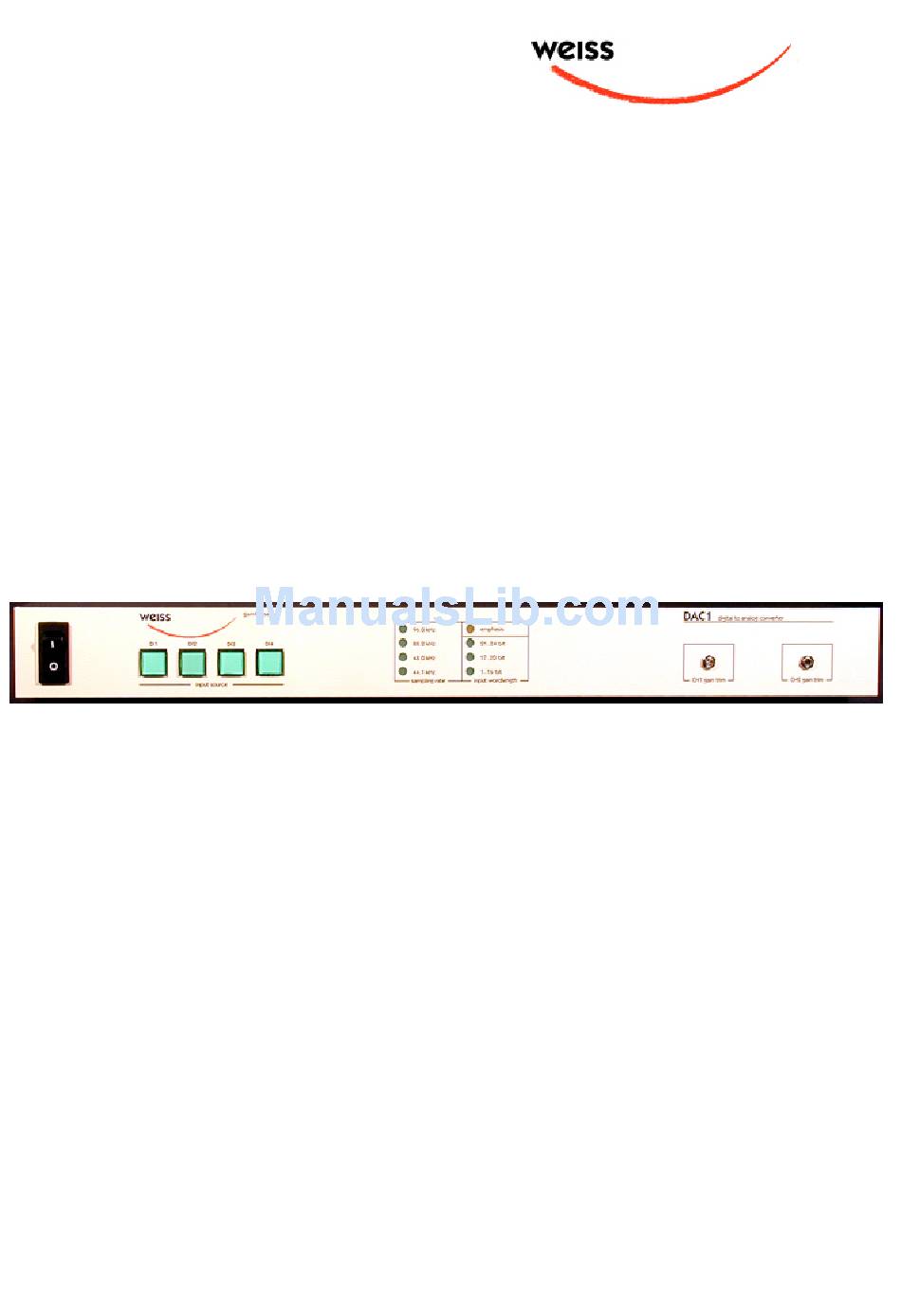

- Page 1 Florastrasse 42, 8610 Uster, Switzerland ) +41 1 940 20 06 2 +41 1 940 22 14 8 http://www.weiss.ch / http://www.weiss-highend.com GAMBIT DAC1 OPERATING MANUAL Software Version: OS: 3.1 DSP: 2.1...
- Page 2 OPERATING INSTRUCTIONS FOR GAMBIT DAC1 24Bit / 96kHz D/A CONVERTER INTRODUCTION INTRODUCTION Congratulations on purchasing the Weiss Gambit Series DAC1 D/A Converter ! D/A converters with equal wordlength and The DAC1 is a stereo 24 bit / 96khz D/A con-...
- Page 3 OPERATING INSTRUCTIONS FOR GAMBIT DAC1 24Bit / 96kHz D/A CONVERTER INTRODUCTION Frontpanel Elements * Four switches for input selection * Four LEDs for sampling frequency dis- play (44.1 / 48 / 88.2 / 96) * Three LEDs for input wordlength dis- play (1..16, 17..20, 21..24 bits)
- Page 4 OPERATING INSTRUCTIONS FOR GAMBIT DAC1 24Bit / 96kHz D/A CONVERTER OPERATION OPERATION The states of all buttons are stored in non-volatile memory, i.e. the setup is retained when powering Input Source Selection the unit off. The input source pushbuttons correspond to the...
- Page 5 OPERATING INSTRUCTIONS FOR GAMBIT DAC1 24Bit / 96kHz D/A CONVERTER OPERATION Remote Control Connector The maximum voltage across the switch is 5V, the maximum current is 5mA. A self-made remote control can be hooked up to Input source indication lamps: the remote control connector.
- Page 6 OPERATING INSTRUCTIONS FOR GAMBIT DAC1 24Bit / 96kHz D/A CONVERTER TECHNICAL DATA TECHNICAL DATA Three AES/EBU Inputs Input fs range: 44.1kHz +- 80ppm 48.0kHz +- 80ppm 88.2kHz +- 80ppm 96.0kHz +- 80ppm Maximum Input Wordlength: 24 Bits Channel Status Data: Input accepts professional or consumer format.
- Page 7 OPERATING INSTRUCTIONS FOR GAMBIT DAC1 24Bit / 96kHz D/A CONVERTER TECHNICAL DATA Remote Connector 15 pin DSUB connector pinout: ground ground key # 2 (switch to ground, selects input # 2) key # 4 (switch to ground, selects input # 4)
- Page 8 OPERATING INSTRUCTIONS FOR GAMBIT DAC1 24Bit / 96kHz D/A CONVERTER TECHNICAL DATA Measurements Measurements taken at the following conditions (unless otherwise noticed): +27dBu output level, 44.1kHz sampling frequency (fs), 22kHz measurement bandwidth Frequency Response: @ fs = 44.1kHz: DC ... > 20kHz +- 0.05dB @ fs = 48.0kHz: DC ...
