PORT
DSL

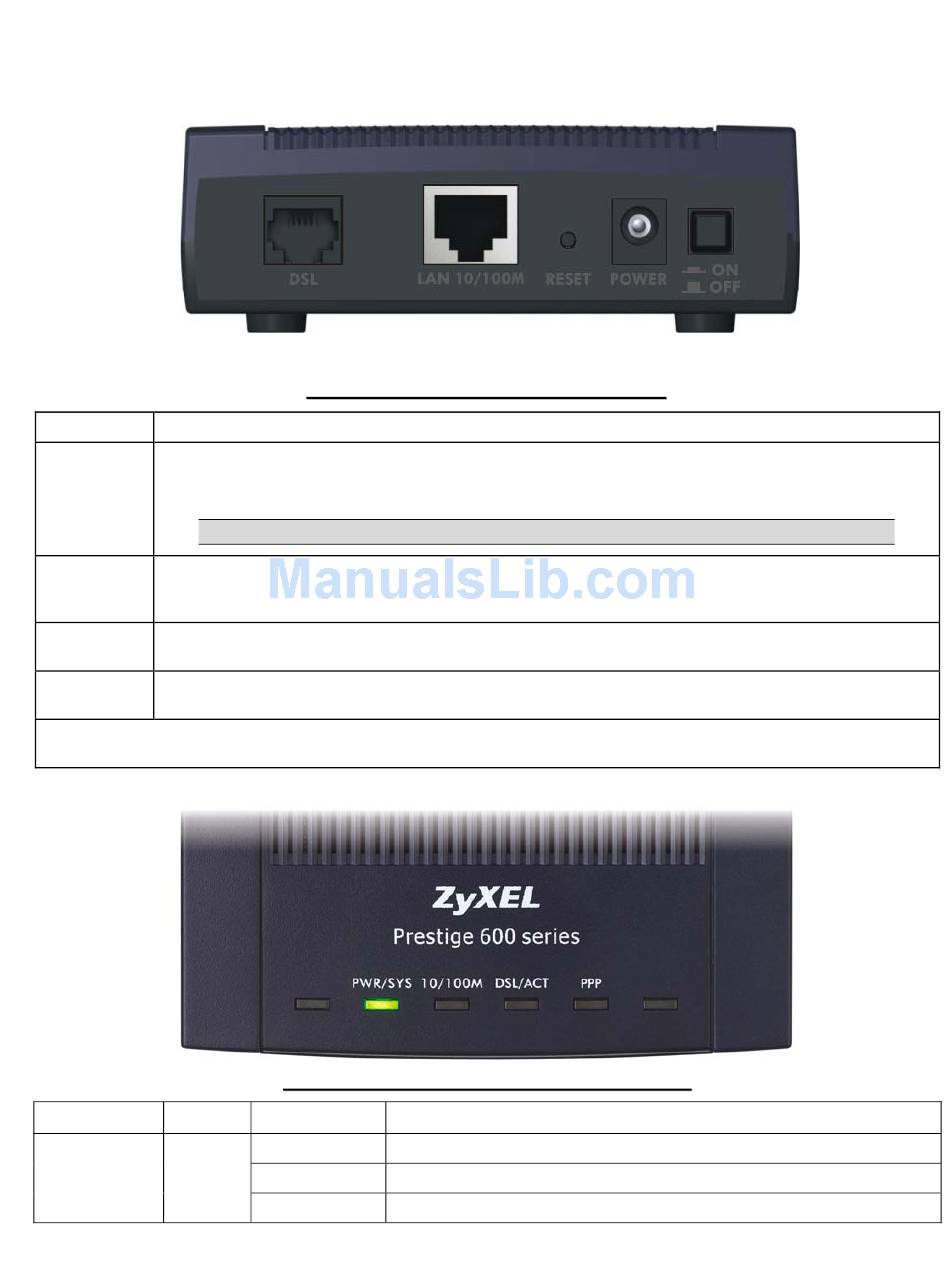

Connect the DSL port on the Prestige to the wall jack using the included DSL cable (telephone wire).
Connect the micro filter(s) (optional – see the appendix in your User's Guide for details) between the wall
jack and your telephone(s).
LAN 10/100M
Use an Ethernet cable to connect this port to a computer (with an Ethernet card) or a hub (if your network
has more than one computer). The port is auto-negotiating (can connect at 10 or 100Mbps) and auto-
crossover (automatically adjust to straight-through or crossover Ethernet cable).
RESET
You only need to use this button if you have forgotten the Prestige's password or IP address. It returns the
Prestige to the factory defaults.
POWER
Connect the end of the included power adaptor for your region to this power socket.
(9V AC)
After you've made the connections, connect the power adaptor to a power supply and push in the power button to turn on the
Prestige. The power button is not available on all models.
LED
COLOR
PWR/SYS
Green
Prestige 660R-6xC Quick Start Guide
P
r
e
s
t
i
g
e
R
P
r
e
s
t
i
g
e
R
Be careful not to insert an RJ-11 connector into the RJ-45 port.
P
r
e
s
t
i
g
e
F
r
o
n
P
r
e
s
t
i
g
e
F
r
o
n
STATUS
On
The Prestige is receiving power and functioning properly.
Blinking
The Prestige is rebooting.
Off
The Prestige is not ready or has malfunctioned.
