2.4 Connection of CAN-USB board / control panel PCB

Connect the small green CAN-USB adapter board via the two red connectors to the backside of the iQ-LED
board (picture flag 2). You can fix the adapter board with a screw to the main board if needed. If you use more
than one iQ-LED in a row, you still need one CAN-USB adapter on the first iQ-LED in the row.
The control panel board (if needed) must be connected to the CAN-USB adapter board via the ribbon connector
cable.
On the control panel PCB, it is possible to set different light settings for the iQ-LED´s (without a connection to a
PC):
o
o
o
o
To create and store illuminants (or sequences) on your device, please follow the instructions in the SW manual.
Image Engineering Error! Use the Home tab to apply Titel to the text that you want to appear here.
Error! Use the Home tab to apply Überschrift 1 to the text that you want to appear here.

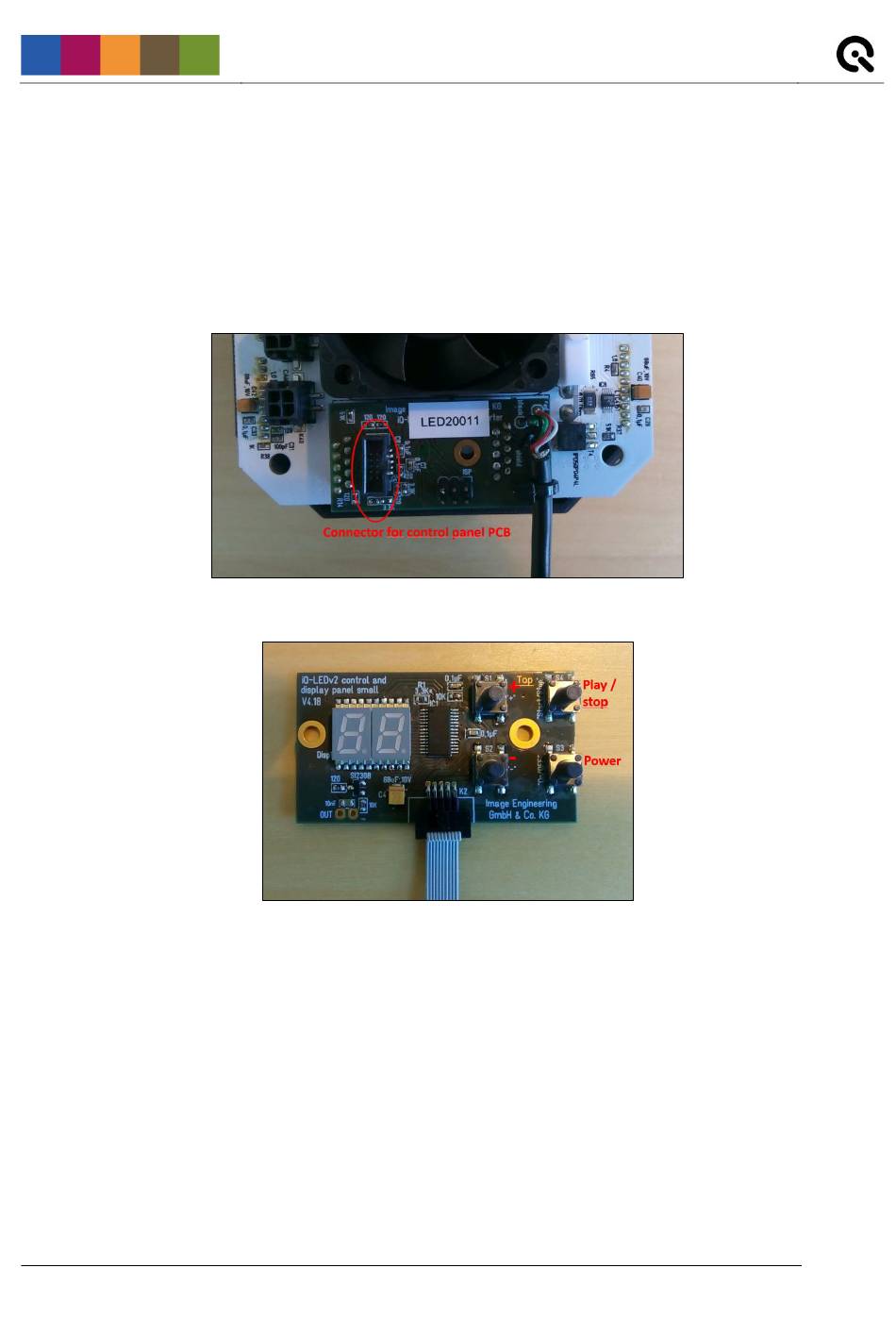

Connected CAN-USB adapter board
with the "+" and "-" buttons you can switch between 44 saved illuminants
numerical display to show the storage of the illuminants
with the play and stop button you can start and stop a saved light sequence with different
illuminates (it is possible to save one sequence)
with the power button, you can turn on and off the light
Control panel PCB
Seite 5 von 11
