2.3 Overview iQ-LED (V2) board

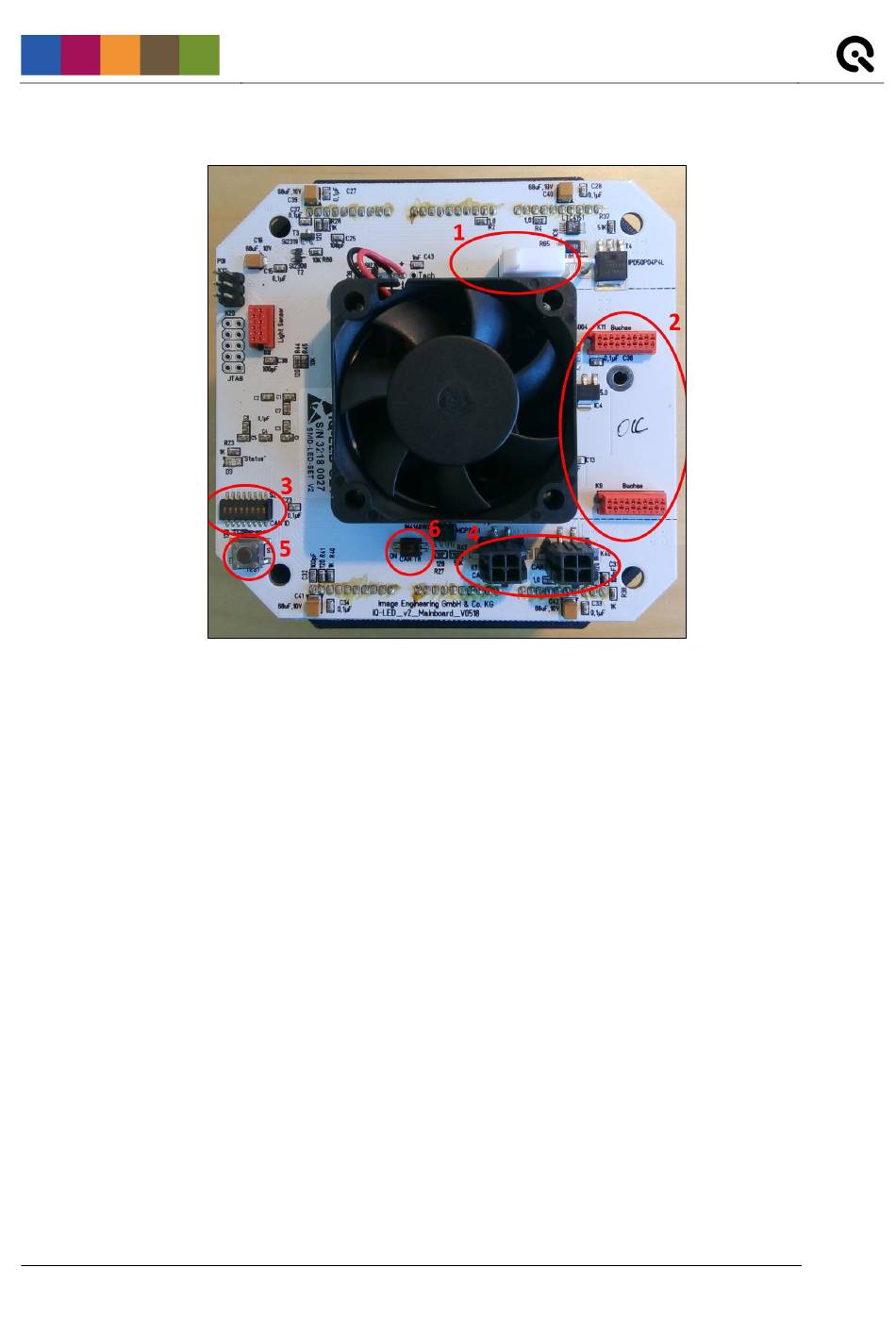

iQ-LED V2 from the backside
1 power connector
2 CAN-USB adapter connectors
3 iQ-LED ID dip switch
4 CAN connector for several iQ-LED usages (both in and out)
5 test button
6 load resistance dip switch
