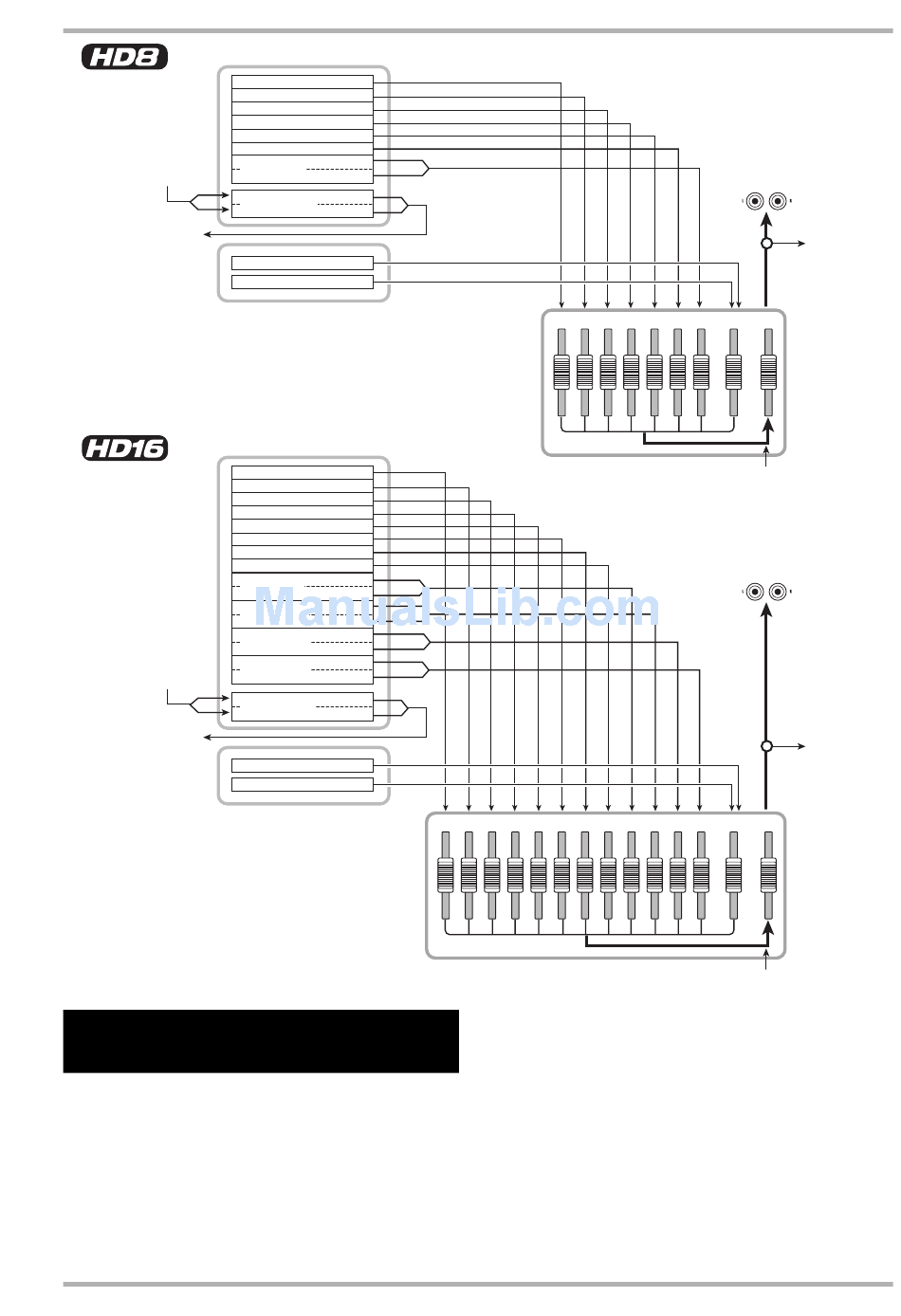

Recorder section
From directly after
[MASTER] fader
To directly before
[MASTER] fader
Rhythm section
Recorder section
From directly after
[MASTER] fader
To directly before
[MASTER] fader
Rhythm section
Assigning input signals to
recording tracks
This section explains how to adjust the sensitivity for signals
input from the INPUT jacks, and how to send them to audio
tracks in the recorder section.
1.
Make sure that the instrument or mic that you
want to record is connected to the respective
INPUT jack.
ZOOM HD8/HD16
Track 1
Track 2
Track 3
Track 4
Track 5
Track 6
Tracks 7/8
Master track
Bass program
Drum kit
Track 1
Track 2
Track 3
Track 4
Track 5
Track 6
Track 7
Track 8
Tracks 9/10
Tracks 12/11
Tracks 13/14
Tracks 15/16
Master track
Bass program
Drum kit
Track mixer
1 2 3
Track mixer
1 2 3 4 5 6 7 8
2.
From the main screen, press the [ON/OFF]
key of the input to which the instrument or
microphone is connected, so that the key is
lit in red.
Input selection is performed with the [ON/OFF] keys in the
input section. If you press an [ON/OFF] key while another key
is already lit, the previous key goes out and the new key lights
up. While the key is lit, the input is active.
Normally, up to two keys can be activated simultaneously. To
activate two inputs, hold down one [ON/OFF] key and then
press the other key.
Reference [Mixer]
MASTER OUTPUT
RHYTHM MASTER
4 5 6 7/8
From master track
MASTER OUTPUT
9/10 11/12 13/14 15/16 RHYTHM MASTER
From master track
To master
track
To master
track
