JABSCO 37010 Series Quick Start Manual

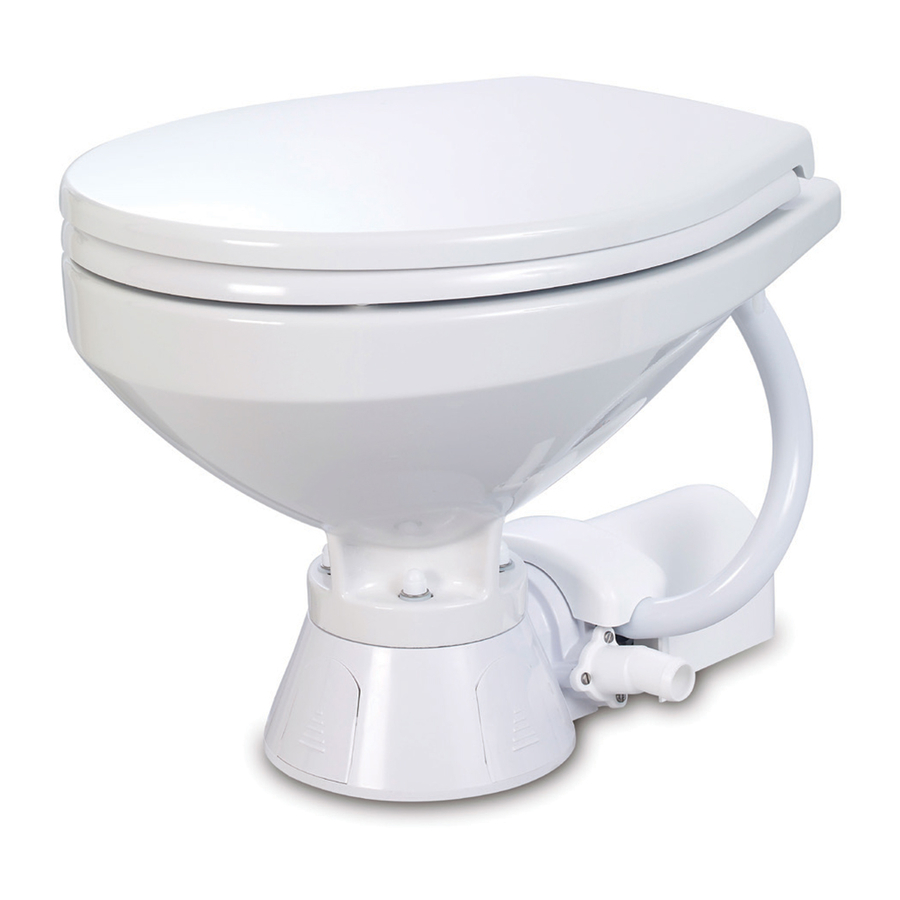

ELECTRIC TOILET BASE KIT
FEATURES
• High Capacity Macerator and Bowl Scavenger Pump
• Flexible Impeller Flush Pump
• Permanent Magnet Type Motor, Fully Enclosed,
with Stainless Steel Shaft
• Complies with USCG 183.410 and ISO 8846
MARINE for Ignition Protection
• Simple Push Button Switch included
• All Corrosion Resistant Materials for Marine Use
SPECIFICATIONS
• 5/8" or 3/4" Inlet, 1" Outlet Back Flow Check Valve
in Discharge
• 1" x 1-1/2" Hose Adaptor included to adapt to 1-1/2"
waste plumbing
• Thru Flow Approx. 1-1/2 Qts. per 5 Seconds of
Operation
VARIATIONS
MODEL NO. DESCRIPTION
37010-0092* Toilet Conversion, 12 Volt EMC
37010-0097* Toilet Conversion, 24 Volt EMC
*This model is Marked and complies with EN50081-1 for
suppression of electro-magnetic interference.
APPLICATION
The Jabsco electric toilet may be installed above or below
the waterline. Flush pump is self-priming with a vertical lift
up to 4 feet; discharge macerator pump can operate
against a vertical head up to 4 feet.
The 37010 series can be used to convert the Raritan PH
or Compact, Wilcox-Crittenden "Head Mate", Groco HC,
Brydon No. 9127, 9128, or No. 59128 and virtually any
other model marine toilet using the "standard" bowl
configuration with a 3-3/4" diameter bolt circle, 4 hole
pattern in the base. Check the dimensional drawing to be
sure the bowl will fit the flange dimensions as shown.

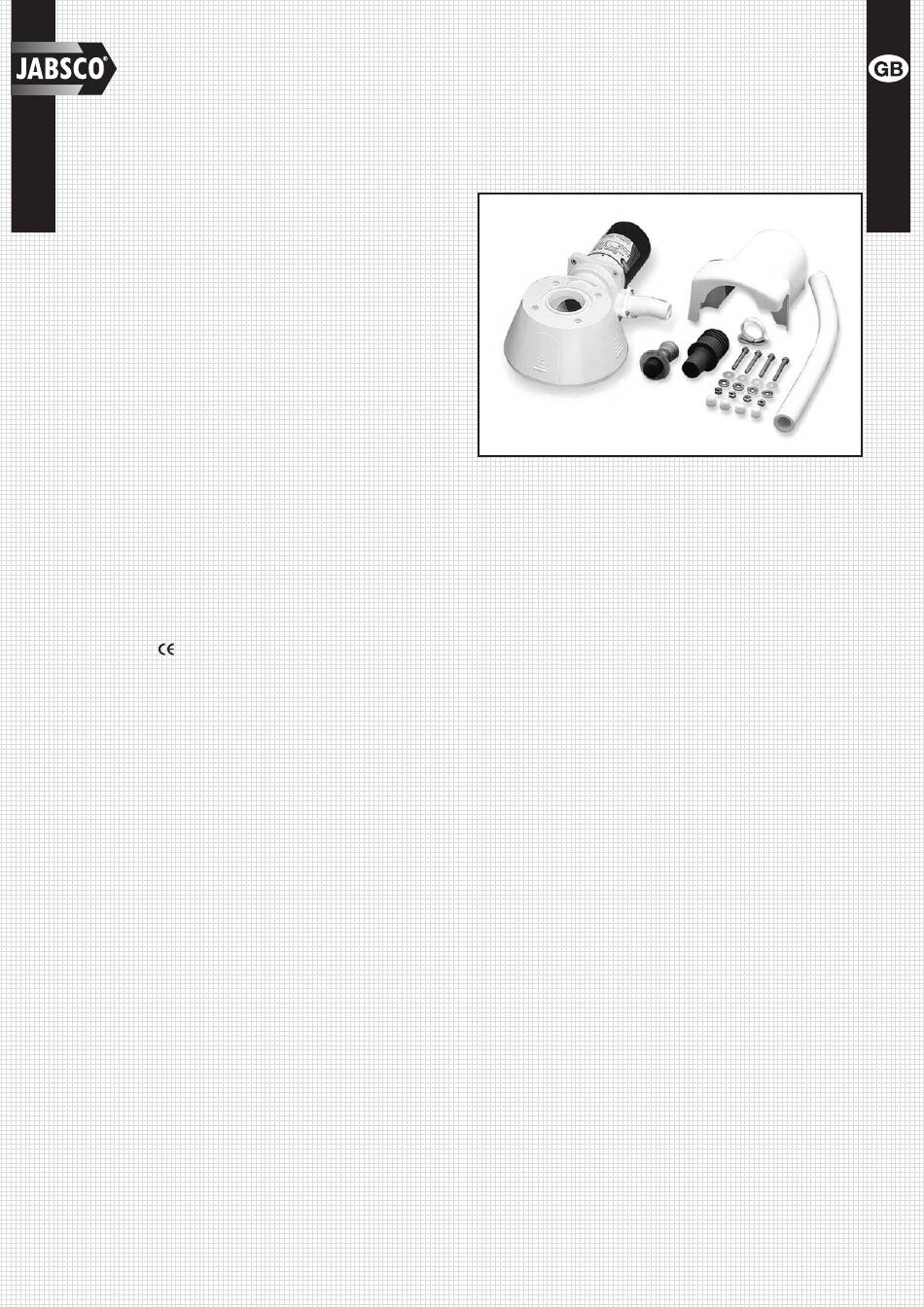

The 37010 series includes the complete motorized base
assembly, bowl gasket, four bolts and washers for bowl,
two 5/8" to 3/4" pump port adaptors, 3/4" white hose, 1"
to 1-1/2" discharge port adaptor, and momentary control
switch.
ASSEMBLY
1. Overall height after conversion may increase up to 1"
on some models, check to be sure adequate space is
available if located under seats or bunks.
2. Screw 6mm machine screws with starlock washer
under each head into nuts positioned in the hex
recess on the top of the base to form bowl attachment
studs (see exploded view).
3. Remove complete manual base assembly and mount
bowl on Jabsco motorized base. NOTE: M6 x 50mm
Model 37010-Se ries
long machine screws supplied are suitable for most
bowls; however some bowl flanges are heavier and
longer machine screws must be used. Place plastic
washers against bowl flange, positioning base for
most convenient hose connection arrangement.
4. Connect pump outlet to rear bowl connection with
3/4" hose. Install the hose clamp on the pump
discharge port only.
5. Position complete toilet assembly and fasten securely
on flat surface. Be sure not to warp toilet base when
tightening toilet base down.
6. Connect existing inlet hose to pump inlet port. A 5/8"
to 3/4" sleeve adaptor is included for fitting to
commonly used 3/4" inlet hose size. Make sure all
connections are airtight and free of sharp bends or
restrictions.
7. Connect 1" discharge hose to discharge port (1-1/2"
hose when using 1-1/2" discharge adaptor) and
make suitable connection to holding tank or other
discharge system. Avoid sharp bends or restrictions.
8. For installation below the waterline, install a vented
loop in the intake hose and position about 8" above
the waterline at all angles of heel or trim. **A vented
loop should also be used for discharge if connected
to a thru-hull fitting.
9. For installations above water line, make a loop in
discharge line about 8 inches above base of bowl to
retain water in bowl. Some installations may need a
check valve in the intake line to aid primeability of
flush water pump.
10. If thru-hull seacocks cannot be conveniently operated
from toilet location, install suitable shut-off valves for
inlet and discharge connections.
** In some installations when a vented loop is installed in the
intake hose, the flushing pump primeability and flow
characteristics are reduced and may adversely affect toilet
function. To restore pump performance, connect a solenoid
valve (Jabsco No. 37068-2000) to the vent air inlet to
interrupt the air supply during the flush cycle. Screw the 1/4"
brass connector onto the vented loop and wire the solenoid
in parallel with the toilet motor. See Diagram 1 for installation
and wiring illustration.
