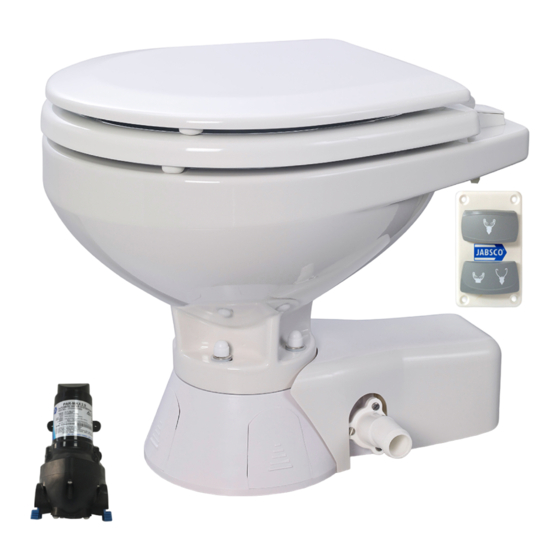

Quiet-flush electric toilet

Advertisement

QUIET-FLUSH
ELECTRIC TOILET

FEATURES

• Very quiet flush cycle - like a household toilet
• Single button flush actuator - with dual function water
level control switch
• Supplied with PAR-MAX 2.9 self priming pump to
provide sea or lake or river water to rinse the bowl
• White vitreous china bowl available in compact or
comfortable household size
• Baked enamel seat & cover - soft close seat option
available on regular bowl models
• High capacity waste macerator and bowl discharge
pump

SPECIFICATIONS

PAR-MAX 2.9 and Toilet
Ports:
Pump Inlet 3/4" (19mm) Hose Barb
Toilet Outlet 1" (25mm) Hose Barb
Pump and Toilet meet U.S.C.G.
Motor
Regulation 183.410 and ISO 8846
& Switch:
Marine for Ignition Protection.
1-2 Quarts (Litres)/Flush
Water
Consumption:

VARIATIONS

Model Number
37245-3092
Compact Bowl 12V
37245-3094
Compact Bowl 24V
37245-4092
Regular Bowl 12V
37245-4192
Regular Bowl 12V, Soft Close Seat/Lid
37245-4094
Regular Bowl 24V
37245-4194
Regular Bowl 24V, Soft Close Seat/Lid
Description
Model 37245-Series

OPERATION

The Quiet-Flush toilet provides both quiet operation
anduser control of water levels in the toilet bowl. A single
rocker switch provides a simple flush mode by activating
both the rinse water supply and the macer-ator
discharge pump simultaneously. An additional dual
action rocker switch offers independent control of the
rinse watersupply and discharge pump separately so the
bowlwater level can be easily raised or lowered by the
user.This provides a method of minimizing water use,
whendesired, as well as a means of raising the water
level inthe bowl when appropriate for user comfort. It
alsoallows for complete evacuation of the bowl water
whileunderway in rough sea conditions.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 37245-3092 and is the answer not in the manual?

Questions and answers

Steen Jørgensen
May 19, 2025

Is it possible to adjust tha amount of water coming into the toilet?

Summary of Contents for JABSCO 37245-3092

  • Page 1 A single rocker switch provides a simple flush mode by activating Model Number Description both the rinse water supply and the macer-ator 37245-3092 Compact Bowl 12V discharge pump simultaneously. An additional dual 37245-3094 Compact Bowl 24V...
  • Page 2 The Pumpgard strainer should be secured with two fas- INSTALLATION teners to a solid mounting surface with the flow arrow The 37245-Series Quiet Flush Toilet is complete with a pointing towards the pump. The inlet hose should be cut dedicated PAR-MAX 2.9 pump to provide either sea or and each end attached to the strainer’s ports.
  • Page 3 ELECTRICAL SPECIFICATIONS FUSE WIRE SIZE PER FEET OF RUN* VOLTAGE DRAW SIZE 0'-10' (0 M-3 M) 10'-15'(3 M-4.6 M) 15'-25'(4.6 M-7.6 M) 25'-40'(7.6 M-12.2 M) 40'-60'(12.2 M-18.3 M) 12 Vdc #16 (1.5 mm #14 (2.5 mm #12 (4 mm #10 (6 mm #8 (10 mm 24 Vdc #16 (1.5 mm...
  • Page 4 Carefully slide the pump assembly from the base ensuring the macerator housing also slides out of the base with the The Jabsco Quiet-Flush Toilet does not require routine pump. The pump chopper will engage the macerator hous- maintenance other than occasional cleaning to maintain ing and it may be necessary to gently tap the chopper a hygienic sanitary condition.
  • Page 5 Qty. Part Description Req. Number Description Req. Number 1. Seat & Cover † Note - 2018 models identified with Jabsco logo on top † of bowl. Washer, Plastic* † 35445-0000 Compact 29097-1000 Seal Housing † 37043-1000 Regular (Pre 2018) 29127-1000 Lock Washer #10, Stainless Steel†...
  • Page 6 Xylem limited warranty warrants this product to be free of defects and workmanship for a period of (x) years. The warranty is exclusive and in lieu of any and all other express or implied warranties, guarantees, conditions or terms of whatever nature relating to the goods provided hereunder, including without limitation any implied warranties of merchantability and fitness for a particular purpose, which are hereby expressly disclaimed and...
  • Page 7 NOTE...
  • Page 8 43000-0662 Rev D © 2017 Xylem, Inc. All rights reserved. JABSCO is a registered trademark of Xylem Inc. or one of its subsidiaries. © 2012 Xylem, Inc. All rights reserved. JABSCO is a registered trademark of Xylem Inc. or one of its subsidiaries.
