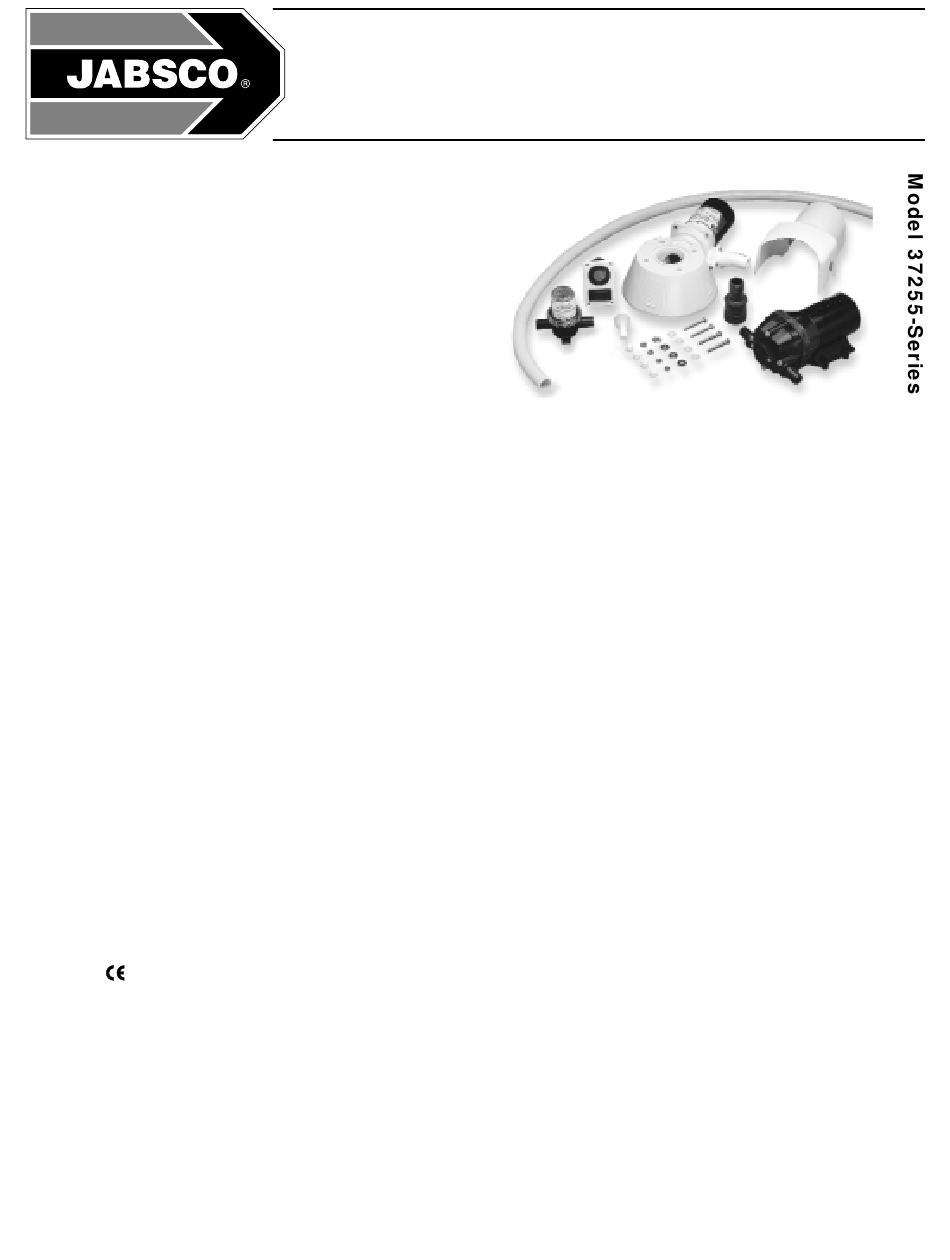

QUIET - FLUSH
ELECTRIC TOILET CONVERSION

FEATURES

• Very quiet flush cycle - like a household toilet
• Converts all Jabsco, Par manual toilets and early
electric toilets to the new Quiet-Flush System
• Also converts Groco HC, HE & HF; Raritan PH,
Cricket, Compact & Crown; Sealand (Mansfield) 750
to 752 series and all Wilcox Crittenden toilets
• Single button flush actuator - with dual function water
level control switch
• Supplied with Par-Max 4 self-priming pump to provide
sea water or lake water to rinse the toilet bowl
• High capacity waste macerator and bowl discharge
pump

SPECIFICATIONS

PORTS
PAR-MAX Pump and Toilet
Inlet 3/4" Hose Barb
Outlet 1" Hose Barb
MOTOR
Pump and Toilet meet U.S.C.G.
& SWITCH
Regulation 183.410 and ISO 8846
Marine for Ignition Protection.
EMC Models Available
WATER
1-2 Quarts (Litres)/Flush
CONSUMPTION
VARIATIONS
MODEL NO.
DESCRIPTION
37255-0012
Toilet Conversion, 12 Volt DC
37255-0092*
Toilet Conversion, 12 Volt EMC
37255-0024
Toilet Conversion, 24 Volt DC
37255-0094*
Toilet Conversion, 24 Volt EMC
*This model is
Marked and complies with EN50081-1 for suppression of
electro-magnetic interference.

OPERATION

The Quiet-Flush Toilet Conversion provides both quiet
operation and user control of water levels in the toilet
bowl. A single large pushbutton switch provides a simple
flush mode by activating both the rinse water supply and
the macerator discharge pump simultaneously. An addi-
tional rocker switch offers independent control of the
rinse water supply and discharge pump separately so
the bowl water level can be easily raised or lowered by
the user. This provides a method of minimizing water
use, when desired, as well as a means of raising the
Model 37255-Series
water level in the bowl when appropriate for user com-
fort. It also allows for complete evacuation of the bowl
water while underway in rough sea conditions.

INSTALLATION

The 37255-Series Quiet-Flush Toilet Conversion is com-
plete with a dedicated PAR-MAX 4 pump to provide either
sea or lake water to rinse the toilet bowl when flushing the
toilet. This pump is intended to be located remotely from
the toilet but will function best if the distance from the toi-
let is kept to a minimum. Because it is self-priming, it may
be located above the vessel's waterline. It must be
installed with the Pumpgard strainer (provided with the
toilet) located somewhere in the inlet plumbing to the
pump. The toilet also includes a multi-function flush con-
trol which should be installed in a bulkhead location that
is convenient to the toilet and allows access for wiring to
run from the power source and to both the toilet dis-
charge pump and the PAR-MAX rinse water pump.
Before beginning the conversion, close all seacocks con-
nected with the toilet's plumbing system and take pre-
caution to ensure they remain closed until the conver-
sion is complete. If the toilet being converted is an elec-
tric toilet, disconnect the electrical power to the toilet and
take precaution to ensure it is not restored until the con-
version is complete.
Disconnect both inlet and discharge hoses from the old
toilet and remove the toilet from its mounting surface. If
the toilet being converted is an electric model, discon-
nect the electrical wiring from the toilet. Remove the
hose connected to the back of the toilet's china bowl and
remove the china bowl and seat & lid assembly from the
old toilet base assembly. Ensure the bottom surface of
the china bowl is clean.The waste pump can be oriented
in any of the four possible mounting positions that pro-
vides the best clearance from surrounding obstructions
but is generally best positioned so it points to the rear of
the toilet bowl. The four 6 mm machine screws must be

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 37255-Series and is the answer not in the manual?

Questions and answers

Summary of Contents for JABSCO 37255-Series

  • Page 1 ELECTRIC TOILET CONVERSION FEATURES • Very quiet flush cycle - like a household toilet • Converts all Jabsco, Par manual toilets and early electric toilets to the new Quiet-Flush System • Also converts Groco HC, HE & HF; Raritan PH, Cricket, Compact &...
  • Page 2 secured into the base to form mounting studs to attach the leading from the pump to the back of the toilet bowl. If china bowl. Place one starlock washer on each of the hex this is not practical, acquire a 3/4" (19 mm) barb to barb head machine screws and a 6 mm hex nut in each of the hose mender and splice the white hose to the supply hex shaped pockets on the top surface of the base.
  • Page 3 ELECTRICAL panel, drill two 1-3/4" (45 mm) diameter holes (slightly over- The electrical wiring should be independent of all other ac- lapping) through the selected switch mounting surface per cessories. It should be made with marine grade copper the attached template. Ensure the template is oriented cor- stranded wire of the gauge specified in the electrical spec- rectly because it is not symmetrical.
  • Page 4 Prevent the motor shaft from turning by inserting a screw- driver in the shaft slot at the rear of the motor and unscrew The Jabsco Quiet-Flush Toilet does not require routine main- the chopper. Remove the chopper, lock washer and macera- tenance other than occasional cleaning to maintain a tor housing from the motor shaft.
  • Page 5 EXPLODED VIEW F L U F L U F IL L D R A F IL L D R A PARTS LIST Qty. Part Qty. Part Description Req. Number Description Req. Number Seat & Cover, Compact Size 18753-0437 Screw 91010-0144 Seat &...
  • Page 6 PAR-MAX SERVICE INSTRUCTIONS rear end bell and position the valve cage against the diaphragm ensuring each cavities seal groove is seated The PAR-MAX rinse water supply pump needs no peri- on its sealing bead molded into the diaphragm. Ensure odic maintenance for proper performance. The only time the O-ring seal that separates the pumps intake chamber service work should need to be performed on the pump from the discharge chamber is properly seated in the ID...
  • Page 7 DIMENSIONAL DRAWING INCHES (MILLIMETRES) C Overall Width 1 Dia (25) 5/16 3-1/8 (79) 3-3/4 5-3/4 (96) (146) (102) 12-7/8 6 (152) (327) 9-1/2 7-1/8 (181) (242) 8-3/8 (213) Compact Size Bowl 3-1/8 (79) 14-1/8 (359) 13-1/8 (333) 16-1/2 (419) 10 (254) 6-1/2 (165) Household Size Bowl 4-5/8 (117)
  • Page 8 U.S.A. UNITED KINGDOM CANADA JAPAN GERMANY Jabsco Jabsco Fluid Products Canada NHK Jabsco Company Ltd. Jabsco GmbH 1485 Dale Way, P .O.Box 2158 Bingley Road, Hoddesdon 55 Royal Road 3-21-10, Shin-Yokohama Oststrasse 28 Costa Mesa, CA 92628-2158 Hertfordshire EN11 OBU...
