Front Panel View; Indication - Zhone 6238-I2 User Manual

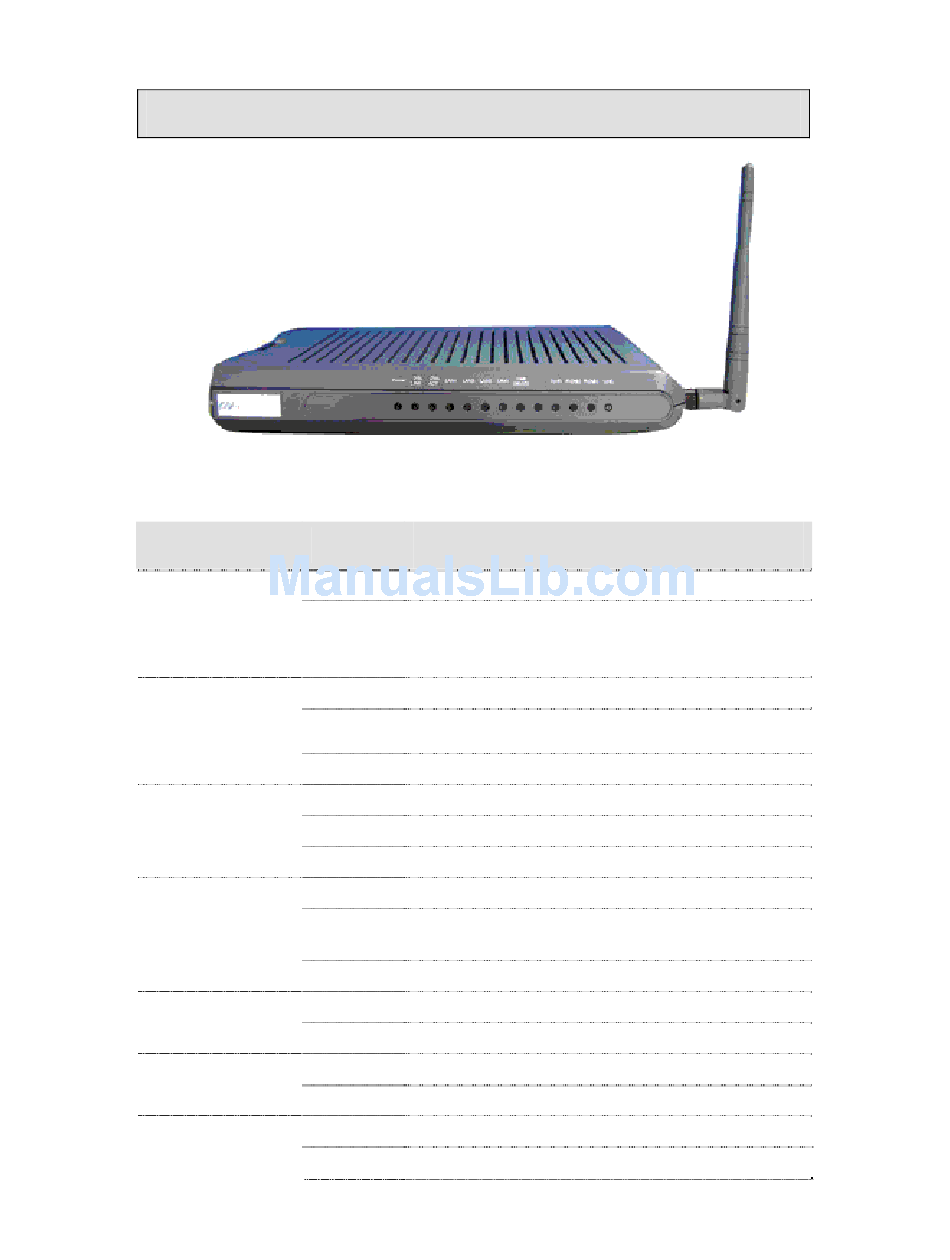

Front Panel View

LED Mode
Solid
Power
No light
Solid
No light
ADSL / LINK
Blinking
Solid
No light
ADSL / ACT
Blinking
Solid
No light
LAN 1-4
Blinking
Solid
USB Device
Flashing
Solid
USB Host
Flashing
Solid
Wi-Fi
No light
6 6238 Wi-Fi Router with VOIP User's Guide

Indication

The router is on.
The router is not on.
Check if the AC power adapter is connected to the
router and plugged in.
ADSL is connected.
ADSL is not connected. ALARM LED will be red.
Router is connected to ADSL.
ADSL is connected; no traffic.
ADSL is not connected.
Presence of ADSL traffic.
Router is connected to LAN.
No connection to LAN. Check if LAN cable is
connected to router.
Presence of LAN traffic.
Connection established using USB.
The router is sending or receiving data using USB.
Connection established using USB.
The router is sending or receiving data using USB.
Wireless is enabled.
Wireless is disabled.
