Mark IP Type of Service— Select from the following choices:
o Normal Service
o Minimize Cost
o Maximize Reliability
o Maximize Throughput
o Minimize Delay
•

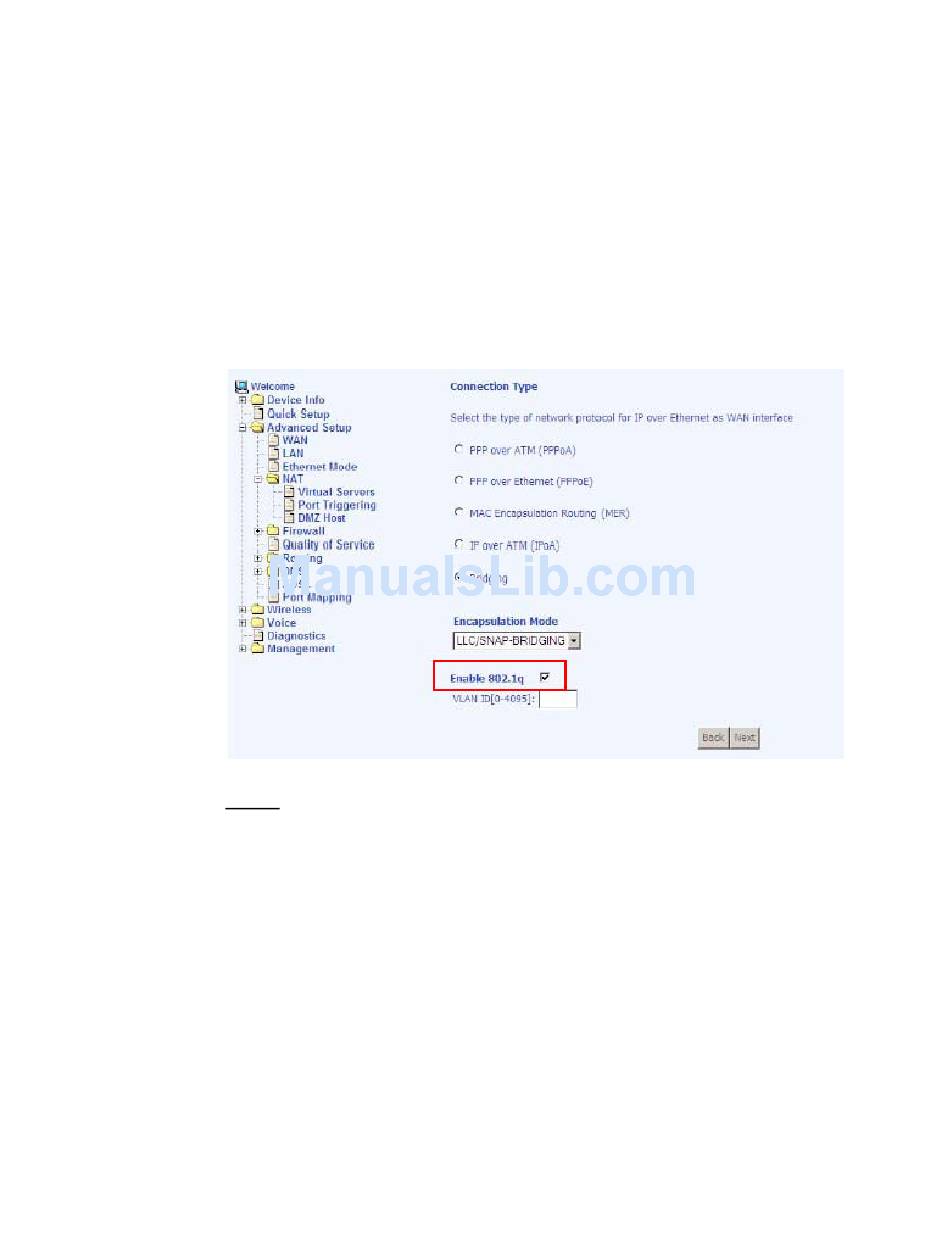

Mark 802.1p if 802.1q is enabled on WAN— (See Connection
Type screen located under WAN under the Advanced group.) The
values range from 0-7.
NOTE: Enter the following conditions either for SET-1 or for SET-2.
SET-1
•
Physical LAN Port— Select the physical port—Ethernet LAN 1-4,
USB, or wireless.
•
Protocol— Select from the following protocols—TCP/UDP, TCP,
UDP, or ICMP.
•
Source IP Address— The IP address for the computer which
packets are coming from.
•
Source Subnet Mask— The subnet mask for the source of the
packets being sent.
