UDP / TCP Source Port (port or port:port)— If TCP or UDP was
selected, then enter the port number.
Destination IP Address— The IP address of the computer where the
packets will be sent.
Destination Subnet Mask— The subnet mask for the destination of
the packets.
UDP / TCP Destination Port (port or port:port)— If TCP or UDP
was selected, then enter the port number.
SET-2
802.1p Priority— If 802.1q was enabled on WAN, then select a
value between 0-7.

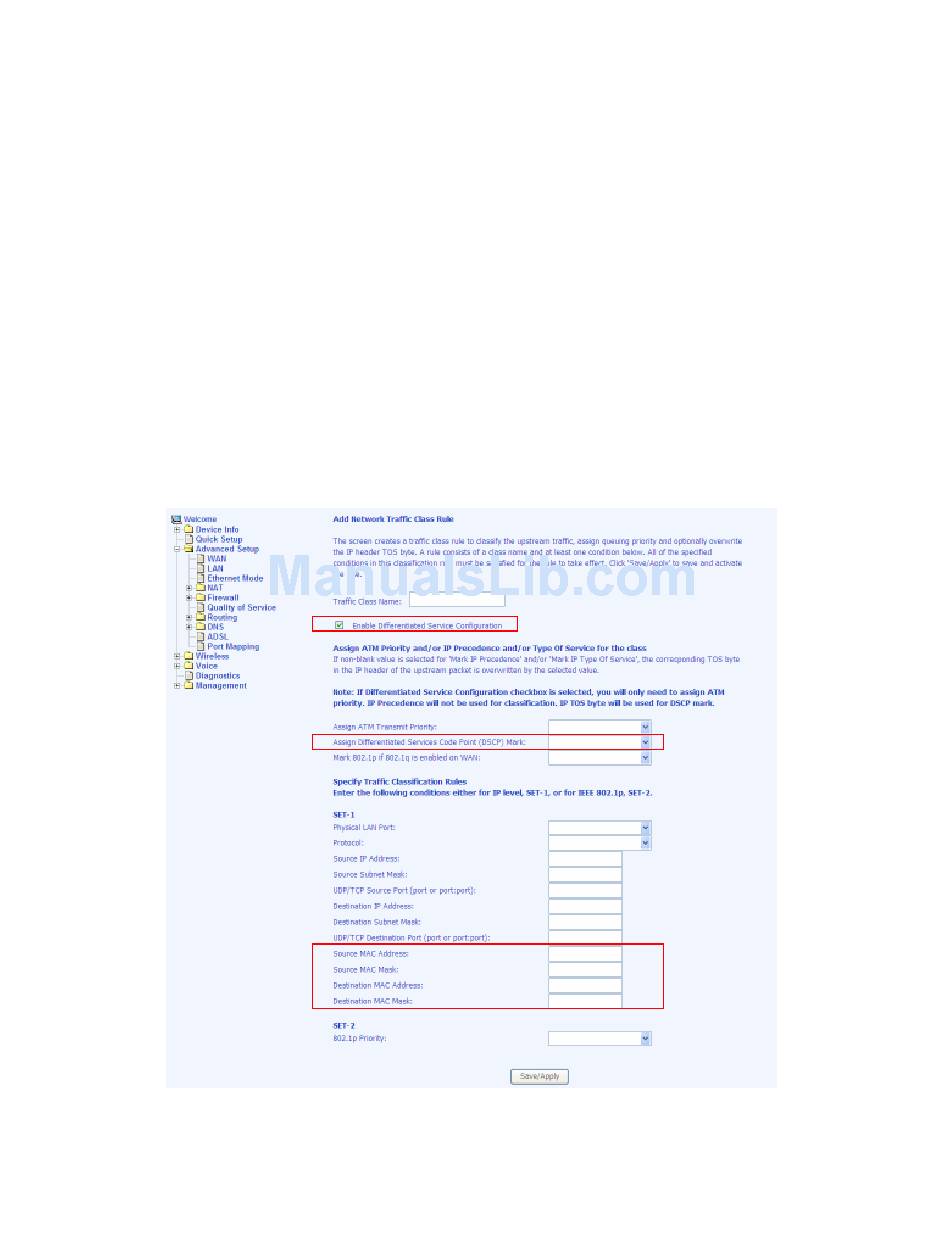

The following screen shows the configuration fields available when the
Enable Differentiated Service Configuration checkbox is checked.
46
6238 Wi-Fi Router with VOIP User's Guide
6238-A2-ZB20-10
