The glass can be installed
either prior to or after in-
stallation of the hood. If the
hood has not been mounted
to the wall, place it on a so-
lid work surface.
2. Undo the (6) wing nuts
securing the glass to the
panel. Fig.2
3. Remove the glass.

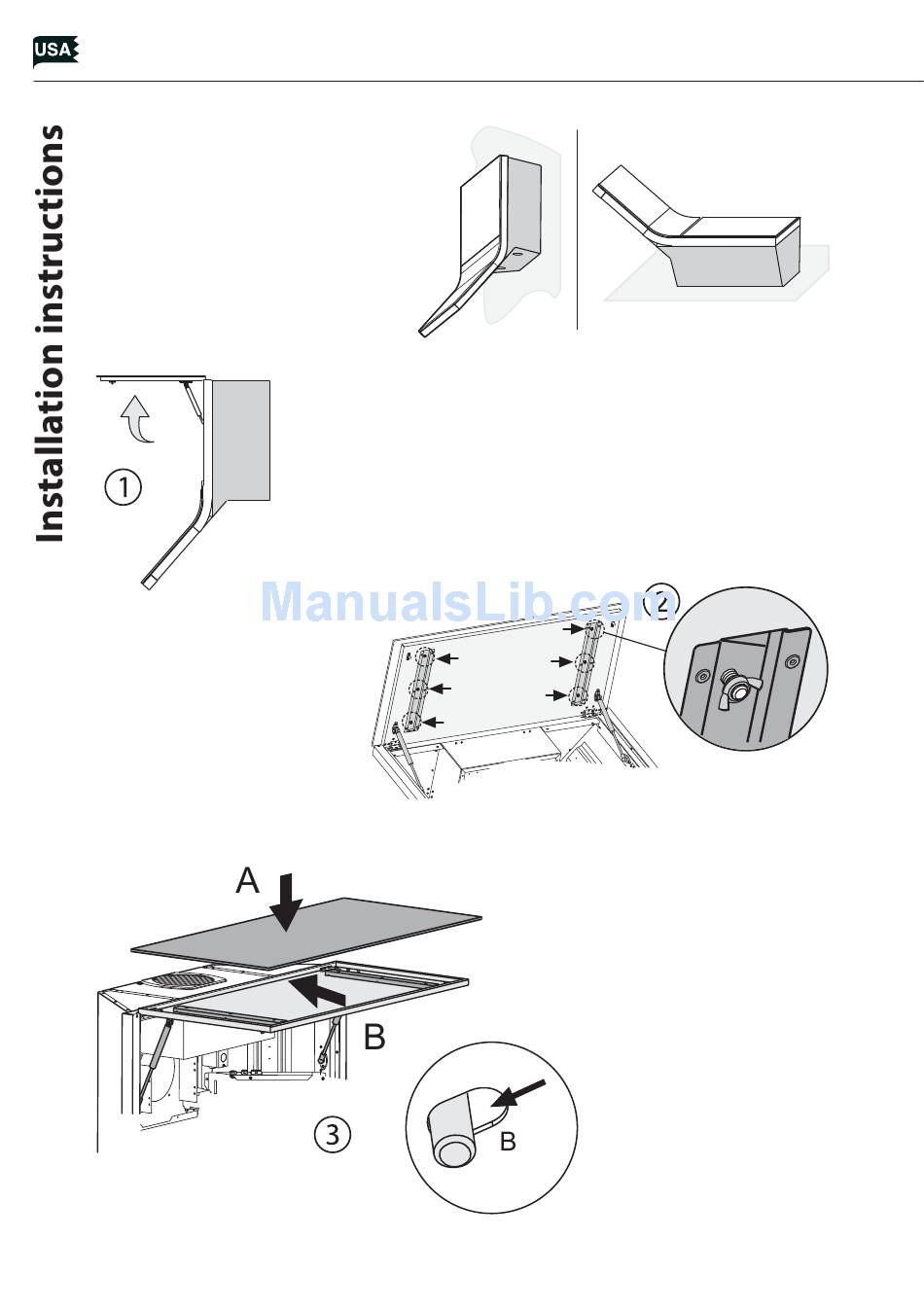

1. Open the top glass door. See Fig.1
WARNING! Hold the glass to prevent it from falling
after the next stage.
- 2 -
www.zephyronline.com
4. Position the glass from the kit
on the door panel by sliding it
until it touches the rear lip ensu-
ring that the pins are within the
slots. Fig.3B
