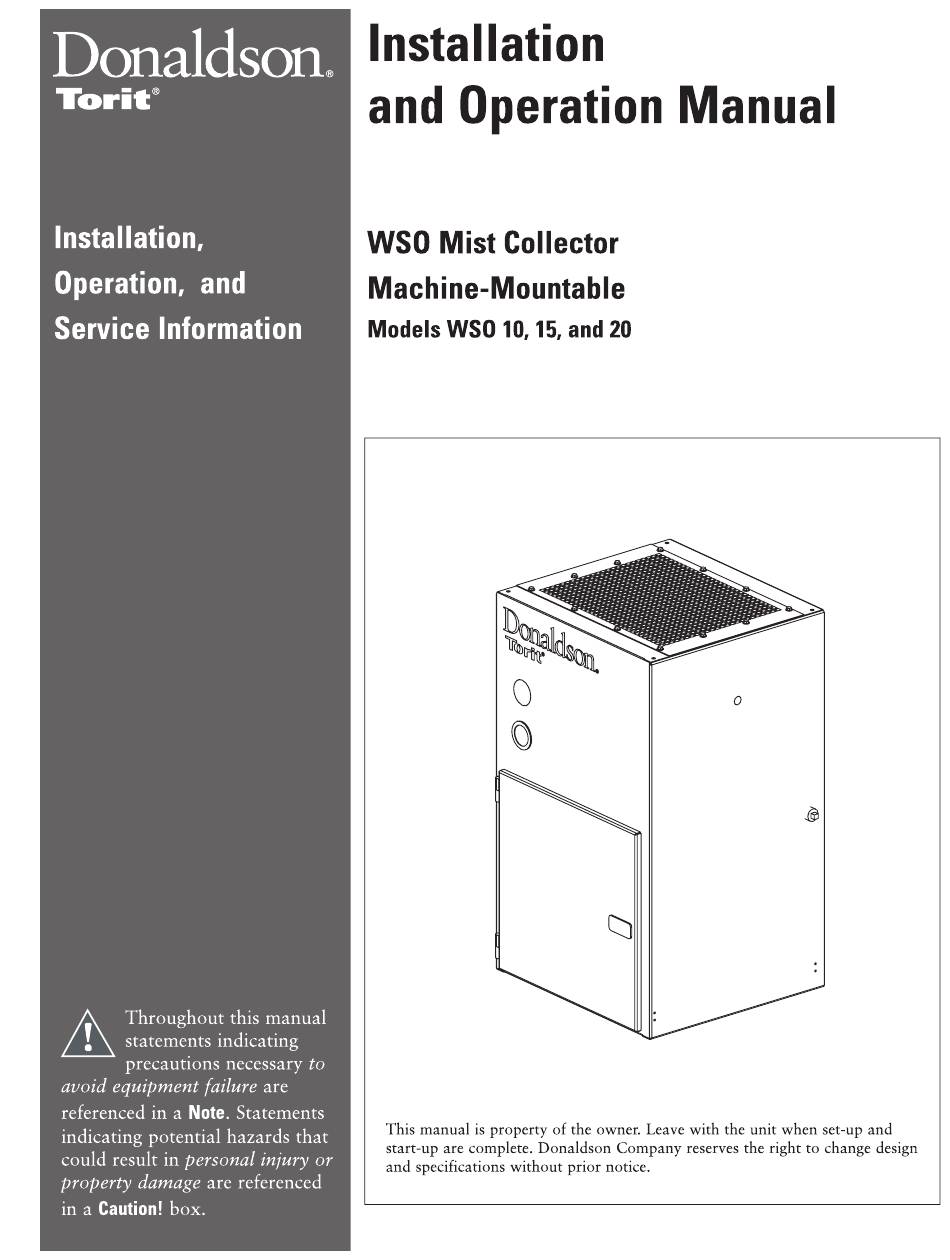

  • Page 1 IOM AK0300601 Revision 2...

  • Page 2: Caution Statements

    Installation and Operations Manual. For a replacement manual, contact Donaldson Torit. This manual contains specific precautionary statements relative to worker safety. Read thoroughly and comply as directed. Discuss the use and application of this equipment with a Donaldson Torit representative. Instruct all personnel on safe use and maintenance procedures.

  • Page 3: Table Of Contents

    WSO 10, 15, and 20 Contents Caution Statements..........2 Collector Stand Installation ......16 Data Sheet .............3 Floor Mount Stand Installation ....18 Description ............4 Inlet Hopper with Flex-Duct Installation ..19 Purpose and Intended Use ........4 P-Trap Installation ........20 Operation ..............5 Electrical Connection........21 Inspection on Arrival ..........6...

  • Page 4: Description

    With greater than one micron in size. Thermal effects airflow capacities up to 1200 cfm for the WSO 10, occur when heat vaporizes the coolant, the vapor 15, and 20, the WSO is a strategic component to cools and recondenses into a mist.

  • Page 5: Operation

    WSO 10, 15, and 20 Operation During normal operation, contaminated air enters The primary stage of filtration is the pleated filter the unit through the dirty-air inlet on the bottom of cartridge specifically designed to collect, coalesce, the unit. The incoming air slows, causing large mist and drain fine mist.

  • Page 6: Inspection On Arrival

    Donaldson Company, Inc. Inspection on Arrival Installation 1. Inspect unit on delivery. Site Selection, Grade-Mounted Units 2. Report any damage to the delivery carrier. 1. The unit can be located on a reinforced concrete 3. Request a written inspection report from the foundation.

  • Page 7: Site Selection, Ceiling-Mounted Units

    WSO 10, 15, and 20 Unit Location Site Selection, Ceiling-Mounted Units: 1. When hazardous conditions or materials are present, consult with local authorities for the proper location of the collector. 1. The unit can be suspended or hung from overhead supports. The supports must be 2.

  • Page 8: Electrical Wiring

    Donaldson Company, Inc. Electrical Wiring Rigging Instructions Suggested Tools & Equipment CAUTION! • Electrical installation must be Crane or Forklift Pipe Wrenches performed by a qualified electrician Slings, Spreader Bars, Socket Wrenches and comply with all applicable and Clevis Pins End Wrenches national and local codes.
  • Page 9 WSO 10, 15, and 20 This Page Intentionally Left Blank...

  • Page 10: Standard Equipment

    Donaldson Company, Inc. Standard Equipment General Installation 1. Apply a generous amount of sealant when installing attachments. 2. Position the collector above the mist-capture zone. See Collector Positioning. machine center 3. Do not allow a fluid trap to form when using flexible duct.
  • Page 11 WSO 10, 15, and 20 large droplets and particulate enter pick-up hood Correct Location Note: WSO collector not shown. Collector is in a remote location and connected with ducting. Open Machine Installation Incorrect Location Enclosed Machine Installation, WSO 15 shown...

  • Page 12: Flush Mount Installation

    Donaldson Company, Inc. Flanged Inlet Hopper Installation Flush Mount Installation The flush mount option is for installing a collector This flanged inlet hopper option is for installing a collector on a machine center that has a limited on a machine center that has a large flat unobstructed top surface.

  • Page 13: Ceiling Mount Installation

    WSO 10, 15, and 20 Ceiling Mount Installation CAUTION! • Failure to lift the collector correctly 1. Verify that the ceiling attachment points can can result in severe personal injury bear the live load. and/or property damage. 2. Use properly sized cable or chain to attach to •...

  • Page 14: Machine Center Mount Installation

    Donaldson Company, Inc. Machine Center Mount with Vertical inlet Hopper and Vibration Isolators Installation Vertical inlet hopper and vibration isolators are for 6. Install and tighten fasteners. Vibration isolator installing a collector on a machine center that is needs to be torqued to 12.0 ft-lbs. sensitive to vibration.
  • Page 15 WSO 10, 15, and 20 This Page Intentionally Left Blank...

  • Page 16: Collector Stand Installation

    For applications with limited mounting surfaces, an 2. Install stand base, level, and securely tighten adjustable stand is available for the WSO 10 and anchor bolts. See Stand Base Installation below. 15. The stand height may be adjusted up to a 3.
  • Page 17 WSO 10, 15, and 20 See Detail B stabilizing bracket mounting bolt eyebolt plate washer See Detail A bolt upper washer washer stand washer Collector on Forklift existing Detail B: hardware Upper Stand Detail A: Bracket Installation Stabilizing Bracket Installation...

  • Page 18: Floor Mount Stand Installation

    Donaldson Company, Inc. WSO 20 Floor Mount Stand Installation 2. Using a crane or forklift, raise the WSO 20 CAUTION! collector and lower into position onto anchor The collector has a high center-of-gravity bolts. Level unit and secure all hardware. and may overturn if not secured Note: When using a crane, use clevis pins and a properly.

  • Page 19: Inlet Hopper With Flex-Duct Installation

    WSO 10, 15, and 20 Inlet Hopper with Flex-Duct Installation This option is available for ceiling mounted units or units on stands. Included components are a 6-in integrated collar on the inlet hopper, 10-ft flexible duct, and two 6-in hose clamps.

  • Page 20: P-Trap Installation

    Donaldson Company, Inc. P-Trap Installation Note: Ensure P-trap is designed with sufficient fluid head to overcome blower static hopper capabilities. An incorrectly sized P-trap will result in coolant pooling within the inlet plenum. NPT pipe 1. Install the P-trap as shown in P-Trap Installation.

  • Page 21: Electrical Connection

    WSO 10, 15, and 20 Electrical Connection Motor Starter Control Box CAUTION! Mount the motor starter control box in a • Electrical installation must be convenient location. An electrical knockout, sized performed by a qualified electrician for 1/2-in fittings, is provided on the left-hand side and comply with all applicable of the blower cabinet.

  • Page 22: Optional Equipment

    Donaldson Company, Inc. Optional Equipment Factory-Installed HEPA/95% DOP Filter Retrofit Kit Field Installation Any HEPA or 95% DOP Filter module ordered An afterfilter installation retrofit kit is available for customers who decide to add a HEPA or 95% DOP with any WSO collector comes with a factory- filter to an existing field-operating WSO machine- installed Minihelic gauge for measuring the pressure drop across the filter.

  • Page 23: Afterfilter Pressure Gauge Installation

    WSO 10, 15, and 20 Afterfilter Differential Pressure Gauge Installation The Minihelic gauge is used to measure the pressure drop across the afterfilter. 1. Locate the Minihelic knock-out in cabinet. 2. Remove the knockout from the front of unit. 3. Install the Minihelic gauge per the Minihelic installation sketch.

  • Page 25: Drain Collection Container

    WSO 10, 15, and 20 Drain Collection Container The optional drain collection container is intended for use where small amounts of liquid are collected and requires regularly scheduled maintenance. Failure to empty the collection bottle will result in inlet plenum overflow.

  • Page 26: Preliminary Start-Up Check

    Donaldson Company, Inc. Preliminary Start-Up Check 10. Adjust the blower for proper airflow by CAUTION! adjusting the volume control damper on the Lock out electrical power sources before blower discharge, if equipped. performing service or maintenance work. Note: Excess airflow can shorten filter life, cause electrical system failure, and blower 1.
  • Page 27 WSO 10, 15, and 20 This Page Intentionally Left Blank...

  • Page 28: Filter Cleaning And Replacement

    Donaldson Company, Inc. First Stage Filter Cleaning and Replacement Primary Filter Replacement Remove the first stage filter through the lower Note: With the unit’s airflow off, allow mist- access door. Clean the first-stage screen by tapping laden, wet filter to drain into the inlet it gently over an appropriate waste container.
  • Page 29 WSO 10, 15, and 20 primary filter cartridge filter retention lever pull down Primary Filter Replacement, WSO 15 shown...

  • Page 30: Final Filter Replacement

    Donaldson Company, Inc. Final Filter Replacement final filter Note: The final filter must be replaced. (gasket-side Do not wash. down) 1. Unlatch the final filter on top of the unit. latch 2. Remove the filter and dispose of properly for the collected materials.

  • Page 31: P-Trap Service

    WSO 10, 15, and 20 P-Trap with Y-Strainer, Screen Cleaning and P-Trap Service Removal 1. Place a suitable container under the P-trap, turn the collector OFF and remove the pipe plug. 1. Place a suitable container under the screen clean-out valve, turn the collector OFF, close the 2.

  • Page 32: Drain Collection Container

    Donaldson Company, Inc. Drain Collection Container Note: Service the drain collection container before it becomes completely filled with fluid. Fluid above the container will discharge when the container is hopper drain disconnected from the collector. 1. Turn unit OFF. 2. Remove the container by unscrewing the container from the cap.

  • Page 33: Troubleshooting

    WSO 10, 15, and 20 Troubleshooting Problem Probable Cause Remedy Blower and motor do Improper motor wire size Rewire using the correct wire gauge as specified not start by national and local codes. Not wired correctly Check and correct motor wiring for supply voltage.
  • Page 34 Donaldson Company, Inc. Troubleshooting, continued Problem Probable Cause Remedy Insufficient airflow Blower rotation backwards Proper blower rotation is clockwise when looking down at the blower motor. See Preliminary Start-Up Check section. Access doors open or not Check that all access doors are in place and closed tight secured.

  • Page 35: Service Notes

    WSO 10, 15, and 20 Service Notes i v r...
  • Page 36 Donaldson Company, Inc. Service Notes, continued i v r...
  • Page 37 This Page Intentionally Left Blank...
  • Page 38 This Page Intentionally Left Blank...

  • Page 40: Warranty

    The Donaldson Torit Warranty Donaldson does not warrant against damages due to corrosion, abrasion, normal wear and tear, product modification, or product misapplication. Donaldson also makes no warranty whatsoever as to any goods manufactured or supplied by others including electric motors, fans and control components. After Donaldson...
