Medalist Spectrum Avanti Elite Setup And Installation Manual page 11

9.
Connect the connectors from the lower wiring harness to the
upper wiring harness.
10. Connect the power cord to power input module on the back
of the cabinet.
11. Adjust leg levelers as needed then proceed to game setup.
12. Double check all of the connections before powering up the
Spectrum Avanti
13. Lock the fiber door with key.

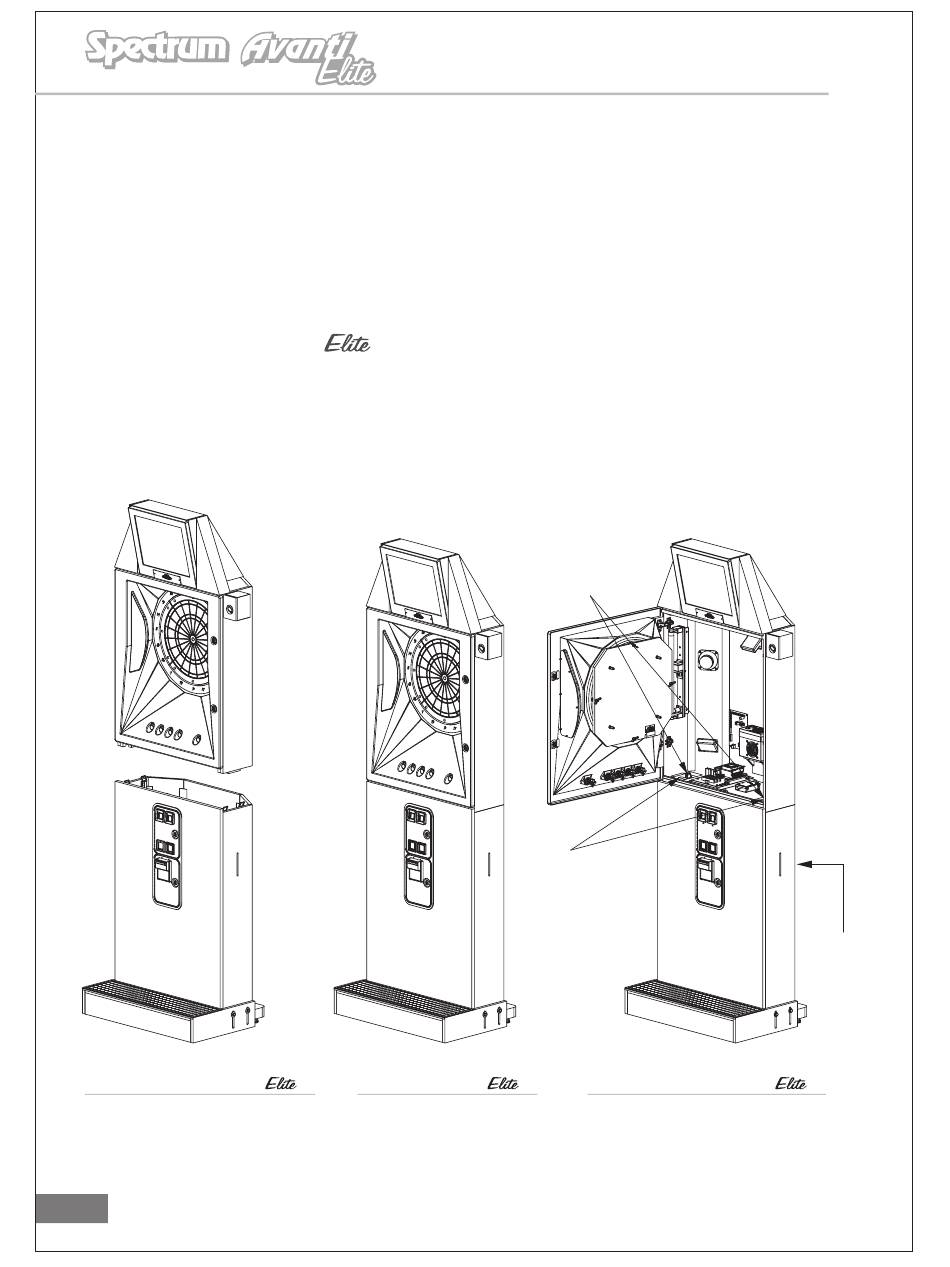

Figure 4.1: Install upper cabinet
to lower cabinet
9
.
Figure 4.2: Complete unit
(T) installation
Lock hook latches
Connect the lower
harness set with the
upper harness set.
Then connect VGA,
DB9 and Audio cables
to the main board.
Figure 4.3: Open the back door to
(T) lock the hook latches
Back Door
Access
(T)
