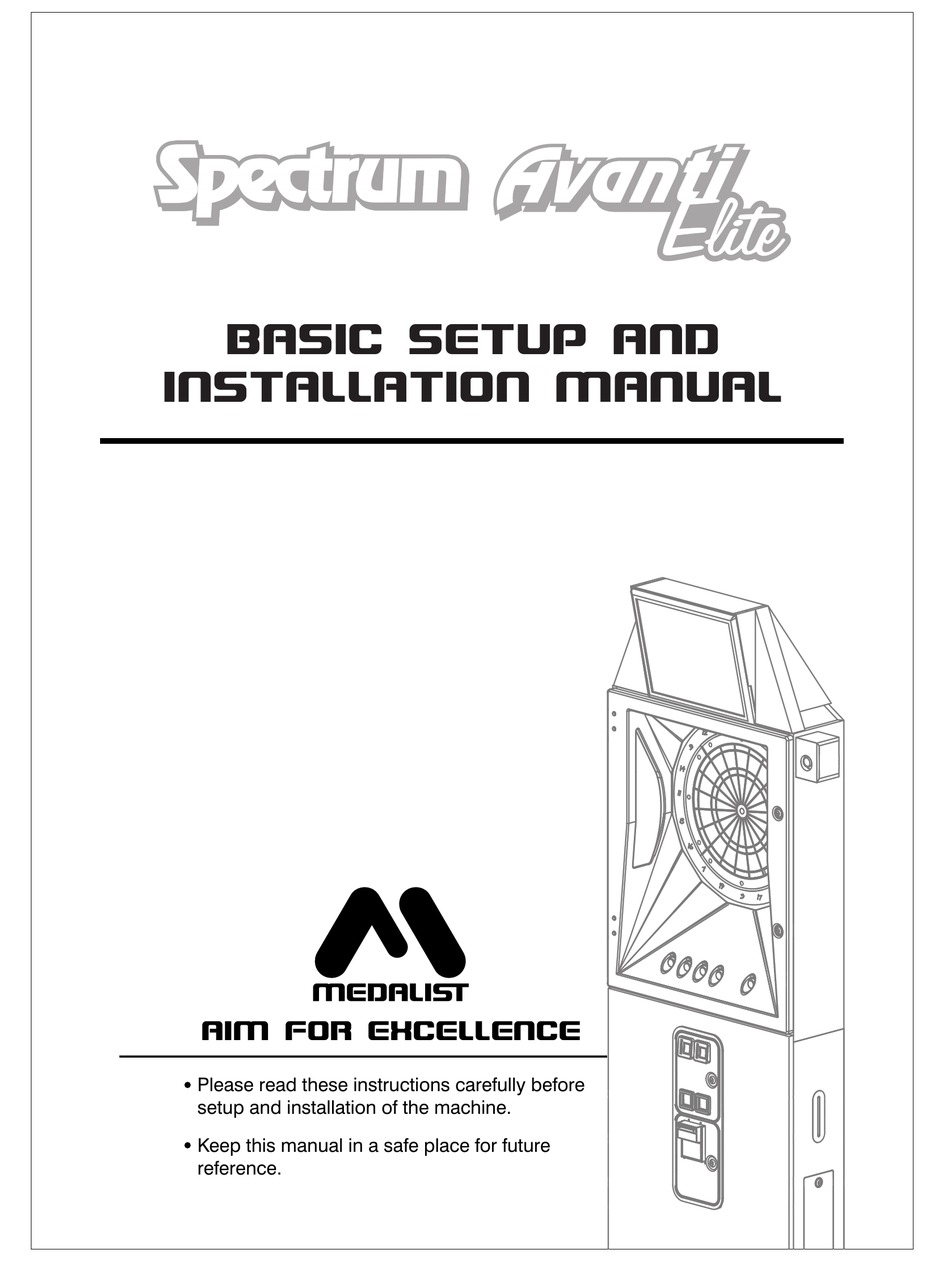

- Page 1 BASIC SETUP AND INSTALLATION MANUAL AIM FOR EXCELLENCE Please read these instructions carefully before setup and installation of the machine. Keep this manual in a safe place for future reference.
-
Page 2: Table Of Contents
Table Of Contents Safety Precautions ............1. Basic Specifications ........... 2. Spectrum Avanti Parts ........3. Cabinet Configuration ..........4. Assembly And Installation Instructions ...... 5. Camera Installation And Setup ........6. Technical Information ..........6A. Exploded Drawing ..........6B. I.O. Board Layout .......... -
Page 3: Safety Precautions
Safety Precautions Spectrum Avanti has been engineered and manufactured to ensure personal safety. However, improper use can result in potential electrical shock or fire hazard. You must observe the following basic rules for installation, use and servicing. Failure to do so may defeat the safe guards incorporated into the Spectrum Avanti and may result in injury. -
Page 4: Basic Specifications
Make/model MSI K8MM-V AMD, Socket 754, Sempron 2600/2800 Memory 256 MB/DDR Embedded peripherals Audio, video, USB, LAN 5. I.O. Board Designed and developed by Medalist I.O. board software version 5.4 6. *Power Supply Type Input 120/230 VAC (selectable) Output +3.3Vdc/28A... -
Page 5: Spectrum Avanti Parts
2-Spectrum Avanti Parts Check List Unpacking And Inspection 1. Remove Spectrum Avanti lower cabinet, upper cabinet, step/dart skirt and LCD monitor/crown from the boxes and inspect for any damage. 2. Confirm that all parts are included. Parts List Spectrum Avanti upper cabinet assembly Spectrum Avanti lower cabinet assembly... - Page 8 Technical Information Item Name Function For display. Can adjust the display quality by using the LCD button under LCD Monitor the LCD button cover For Player and Top Ten List pictures Camera Primarily to register dart scores, also used Target to input various information Select/ Interfaces with software.
-
Page 9: Assembly And Installation Instructions
4-Assembly And Installation Instructions 1. Install the leg levelers to the bottom of the lower cabinet. 2. Place the lower cabinet in the desired location and adjust each leg leveler until the lower cabinet is level from front to back and side to side. 3. - Page 10 Install 1 bolt from outside Monitor Unit Camera (Optional) Install 2 bolts from inside Upper Cabinet Fiber Door Locks Figure 3.1: Installation of upper cabinet Figure 3.2: Upper cabinet complete unit Using two people, lift the upper cabinet and place it on top of the lower cabinet.
- Page 11 Connect the connectors from the lower wiring harness to the upper wiring harness. 10. Connect the power cord to power input module on the back of the cabinet. 11. Adjust leg levelers as needed then proceed to game setup. 12. Double check all of the connections before powering up the Spectrum Avanti 13.
-
Page 13: Camera Installation And Setup
5-Camera Installation And Setup (Digital Camera Optional) Installation 1. Thread the USB camera cable through the 1” hole in the upper right side of the game. 2. While holding the camera box to the upper right hand side of the game with the camera hole facing outwards, thread two 6mm bolts from the inside of the game into the camera box inserts. -
Page 22: I.o. Board Layout
6B. I.O. Board Layout Port Description Input Output Load Program ISP RS232 Communication DC Power Audio Signal Input Audio Signal Output To Speaker Target Input Button/Lights Input Signal Of Coin Count-Up Player Change Sensor Missed Dart Sensor CN10 Bill Validator Input CN11 Soft Power Down CN12... -
Page 24: Main Board Connections
6C. Main Board Connections LAN (Optional) Mouse L-In Keyboard L-Out Figure 12: Main board connections Name Function Connect to Supply AC Power To PC AC Power Input AC Power Unit Serial Communication With Com Port DB9 Cable I.O. Board Send Video Signal To VGA Port VGA Cable Monitor... -
Page 26: Troubleshooting
7-Troubleshooting No Power 1. Check for correct voltage at wall receptacle using digital voltmeter. 2. Check fuse with digital voltmeter or continuity tester. 3. Remove power cord and check wiring from AC power cord to power supply. 4. Reapply power cord and check for correct voltage at power supply AC input plug. - Page 27 No Lamps (Continued) 4. If voltage is not present, trace the wiring back to the terminal strips located behind the power supply using a digital voltmeter. 5. If voltage is present but lamps do not work, install a new lamp holder.
-
Page 28: Software Settings
General Settings will allow you to change the number of times Correct-A-Dart can be used. General Settings allows you to turn on/off Handicapping, Non Cut-Throat Games, Medalist Rating, Out Chart Displayed and Freeze Warning You can also set the pricing for Doubles and Trios in League and... - Page 29 Selecting Game Settings (Continued) 6. Player Pix Options Set Happy Hour and Regular Pricing. Password allows you to give a password to the location in case they would like to delete pix that have been placed on the board thus saving a service call (to use set password enter Player Pix screen and press Yellow Player Buttons 2 and 3 simultaneously Enter password using player buttons and follow instructions to delete).
- Page 30 Selecting Reports (Continued) 3. Delete Credits Clears any credits currently on the board 4. Delete Photos Brings up a screen to show you how to delete any photos currently on the dart board Selecting Diagnostics 1. Matrix A target will appear on screen. To check your Matrix touch segments on the dart board and see if they correspond to the screen 2.
- Page 31 Selecting File Load Setting Selecting file load setting allows you to load either Factory Settings 1, 2 or 3. Game Factory Setting 1 Factory Setting 2 Factory Setting 3 1101 1501 Cricket Standard Random Select-A Hidden U Pick-I Pick Team Practice Count-Up Cricket Count-Up...
-
Page 32: Program Mode Diagram
Program Mode Diagram... - Page 33 Medalist Asia Limited 50/8-9 Moo 5, Salaya-Nakorn Chaisri Rd., Salaya, Phuttamonton, Nakornpathom, Thailand 73170 Tel: 66 (0) 2800-2737 Fax: 66 (0) 2800-2650 Mida-Medalist Entertainment Public Co., Ltd. 96/2 Moo 4, Tambol Lamphaya, Amphur Muang Nakornpathom, Thailand 73000 www.medalistgames.com Tel: 66 (0) 3427-2581-3 Fax: 66 (0) 3427-2585...
