LCD
Install 2 bolts
from inside

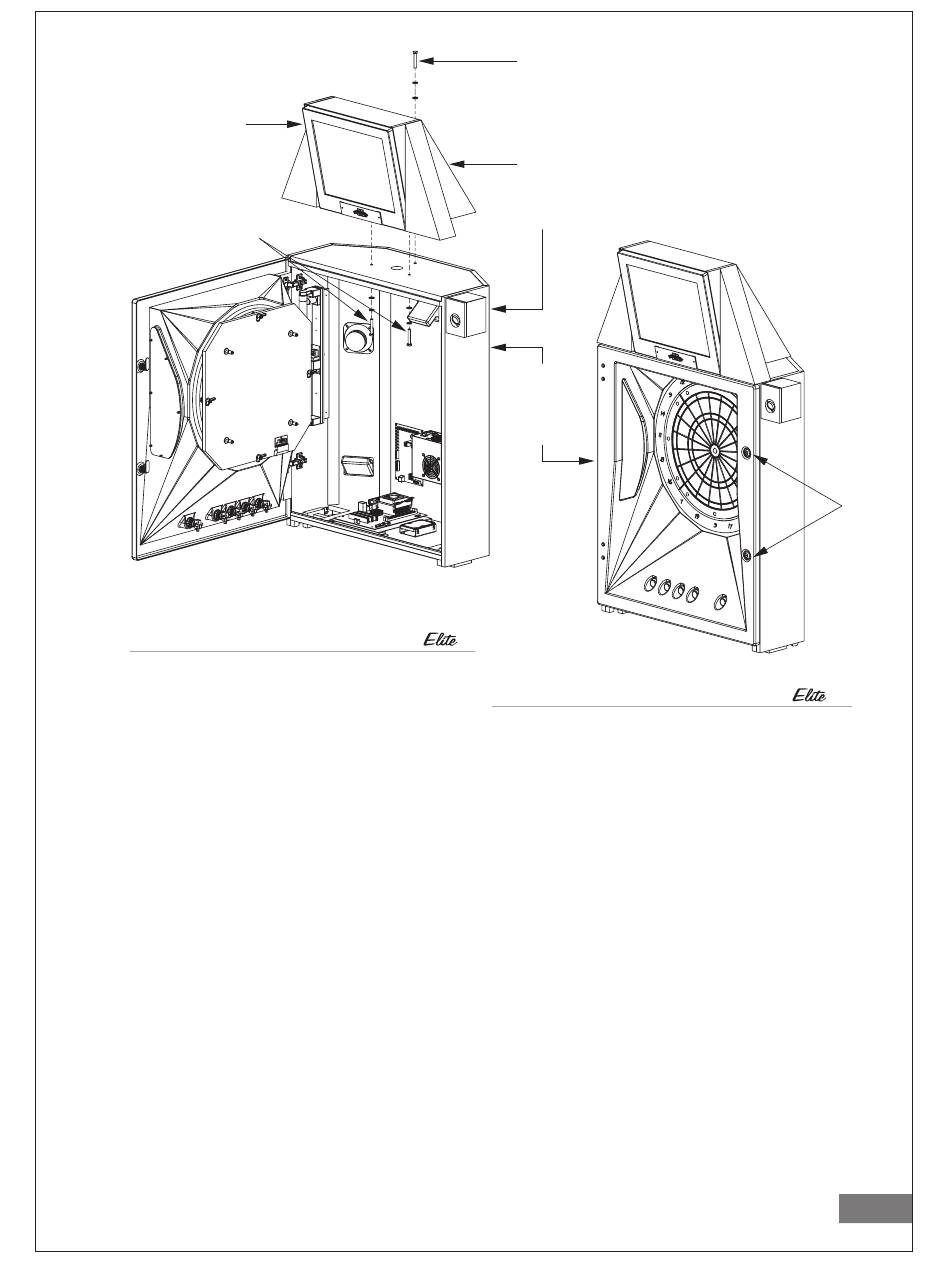

Figure 3.1: Installation of upper cabinet
4. Using two people, lift the upper cabinet and place it
on top of the lower cabinet.
5. With someone stabilizing the upper cabinet, open the
back door and lock the four hook latches to secure the upper
cabinet to the lower cabinet.
6. Install the monitor/crown to upper cabinet using the three
bolts provided.
*
7. Route the VGA cable up through the hole in the top of
the cabinet and connect it to the LCD.
*
8. Route the LCD power connector down through the hole in the
top of the cabinet and connect it to the 9 pin power connector
inside the cabinet.
*For top mount board only
Install 1 bolt
from outside
Monitor Unit
Camera
(Optional)
Upper Cabinet
Fiber Door
(T)
Figure 3.2: Upper cabinet complete unit
Locks
(T)
8
