Summary of Contents for Timpte 718

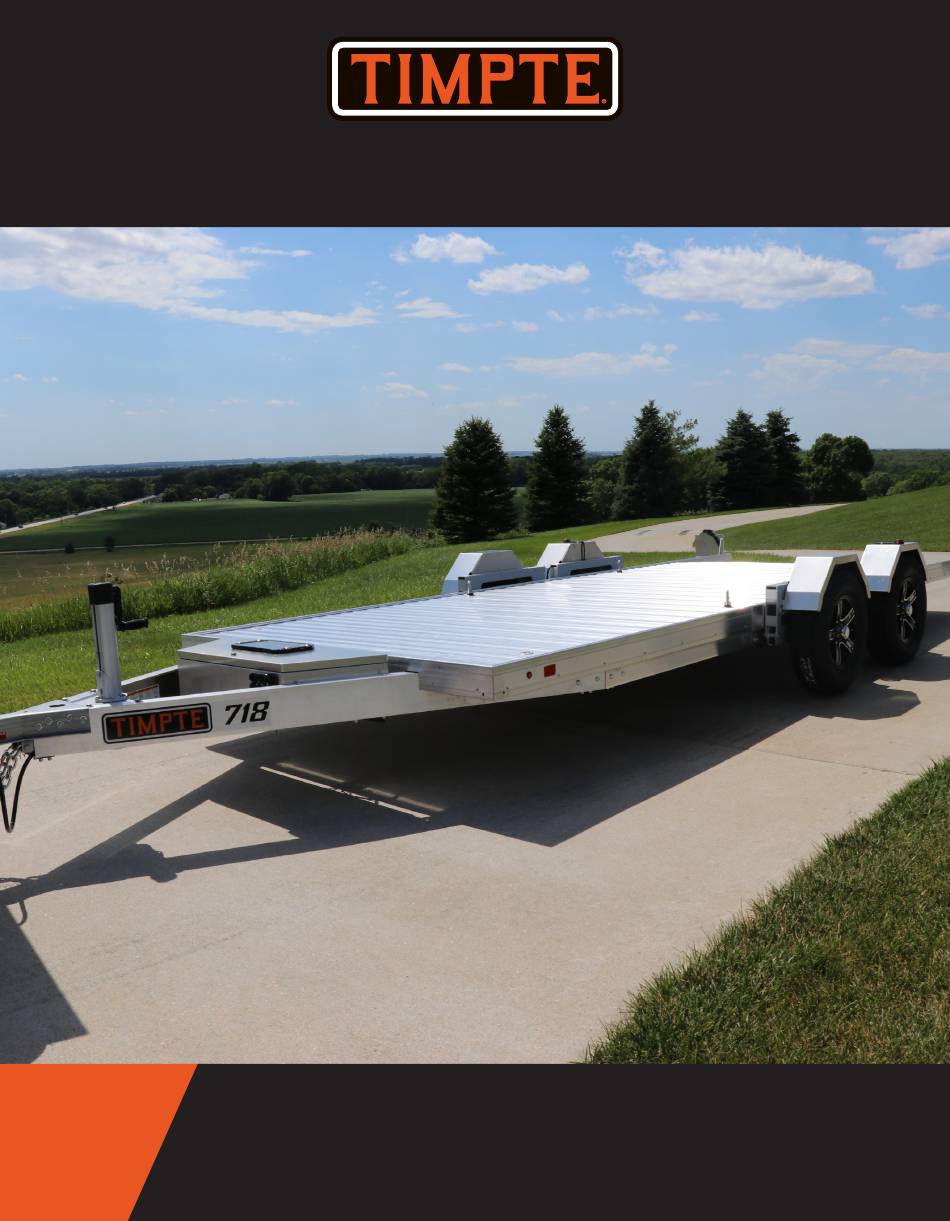

- Page 1 UTILITY TRAILERS USER GUIDE...
- Page 2 “Timpte Utility Trailer Owners Manual” This user’s manual contains safety information and instructions for your trailer. Make sure to read this manual along with owner’s manual prior to loading or towing of trailer. Timpte advises that all safety precautions and instructions be followed.
- Page 3 Operating your Timpte Utility Trailer Connect the tow vehicle. Ensure the safety cables and the breakaway cable are securely connected to the tow vehicle. Safety cables must be crossed under the hitch. Raise the jack fully. Remove the jack wheel and stow.
- Page 4 Release all safety latches located on each side of the trailer. Make sure latch matches shown unlocked position. Make sure trailer is parked on level ground. Trailer lifting arms may not raise fully if parked on uneven ground. TIMPTE.com...
- Page 5 Lower the trailer until the rear of the trailer is on the ground. When lowering do not over run the winch down. Stay clear of potential crush zone areas or remain in loaded vehicle while lowering or raising. Never touch cables or moving parts when in operation. TIMPTE.com...
-
Page 6: Loading The Trailer
If you drive onto the trailer take the remote with you to raise and stay inside the vehicle as you may not be able to open your doors in lowered position. If not in vehicle, stand clear of trailer while raising. TIMPTE.com... - Page 7 Loading the Trailer Place safety latches in its latched position. Do not tow trailer without verifying the safety latches are in place. Damage may occur to safety latches if traveling without tight cables. TIMPTE.com...
-
Page 8: Charging The Battery
Remove master switch to prevent battery drainage and security. Ideal battery voltage is between 12.2V and 13V. Trailer may not operate correctly if voltage is under 12V. Should the breakaway switch be activated, the battery will be drained for safety purposes. TIMPTE.com... - Page 9 Timpte Utility Trailers Timpte Utility Trailers are designed specifically for carrying motorized vehicles. It is recommended that wheel tie straps be used to secure the vehicle with the tie straps connected to the embedded tie-down rings. The vehicle must be loaded as far forward on the trailer as possible so the loaded tongue weight is 10% of the total load.
-
Page 10: Service And Maintenance
Do not work under the trailer when it is loaded. Before working under the trailer ensure the battery switch is off, the safety latches are engaged and all lifting arms, the tongue, and rear of trailer are safely supported. TIMPTE.com... - Page 11 Service and Maintenance Notes TIMPTE.com...
- Page 12 402-694-0410 815-875-2242 605-543-5160 608-241-4955 Timpte Urbana Timpte Council Bluffs Timpte Bloomington Timpte Sioux City - Sales Only 5368 Hutton Dr. 2902 23rd Ave. 2312 W Market St. 4325 S York St Urbana, IA 52345 Council Bluffs, IA 51501 Bloomington, IL 61705...
