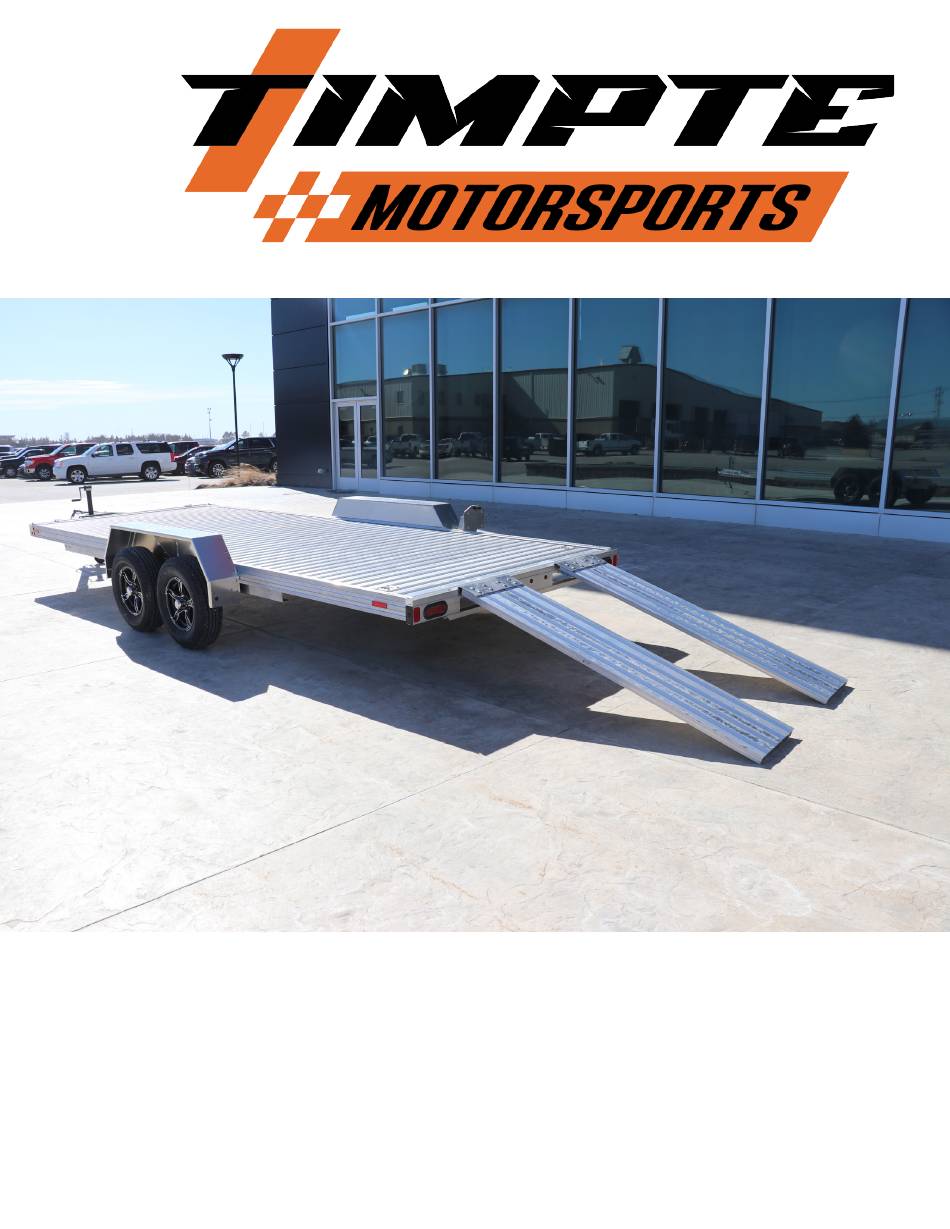

- Page 1 RAMPED TRAILERS MOTORSPORTS TRAILERS USERS MANUAL USERS MANUAL REV A. 2/2024...
- Page 2 REPORTING SAFETY DEFECTS AND OTHER CLAIMS If you believe that this vehicle contains a safety defect you may contact Timpte, Inc., The National Highway Traffic Safety Administration (NHTSA) or both. The trailer was designed and inspected to conform to industry standards and all applicable NHTSA safety standards.
- Page 3 Our product lines are continually improving. We want to thank you for purchasing a Timpte trailer and to let you know that it was built for long life and low cost of operation. However, regular and proper maintenance of the trailer and your common sense use of it are required to extend the life of the trailer.
- Page 4 Gross Vehicle Weight Rating (GVWR) of the trailer. Any modification made to the trailer without prior approval from Timpte, Inc. may void the warranty. Any operation of the trailer outside the limitations stated in this manual will void any responsibility of Timpte, Inc. for any of its results.
- Page 5 FOLLOW ALL DECALS AND EMBLEMS CAREFULLY. The following section contains the decals and emblems used on the Timpte Motorsports trailers. Due to the differences in configurations and equipment, your trailer may or may not use all the decals and emblems shown.
- Page 6 PAGE 5...
- Page 7 YOU, THE OPERATOR, HAVE THE GREATEST CONTROL OVER SAFE OPERATION. 1. You, the operator, have control of the most important factors that effect the safe operation of the trailer and vehicle stability. Trailers are a tool and like any tool, are safest when used properly by a trained and qual- ified operator.
- Page 8 This user’s manual contains information and instructions for the safe operation of your new trailer. Make sure to read this manual along with the owners manual prior to loading or towing your new trailer. Timpte, Inc. advises users to follow all safety precautions and instructions.

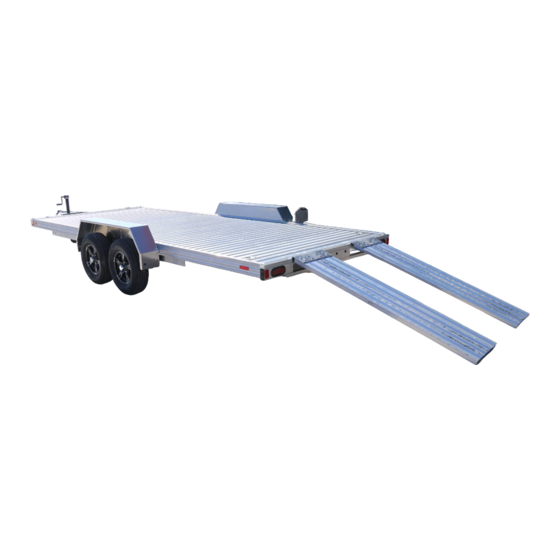

- Page 9 TIMPTE MOTORSPORTS TRAILERS Timpte Motorsports Trailers are designed specifically for carrying a variety of vehicles and motorsports equipment. The load must be placed far enough forward on the trailer so that the loaded tongue weight is 10- 15% of the total load. Do not load cargo in the trailered vehicle once it is loaded as this may change the weight distribution and possibly overload the trailer.
- Page 10 TIMPTE MOTORSPORTS TRAILERS Tire, wheel or lug nut failure can cause loss of control. Before towing you must check tire pressure and tread wear. Check tires and wheels for damage. Re-Torque lug nuts to 90Ft-lb for any new or re-mounted wheel and tire after 10, 25 and 50 miles.
-
Page 11: Tow Vehicle
HOOKING UP THE TOW VEHICLE Your new trailer is equipped with a fixed position coupler. If the trailer is not level when connected to the tow vehicle, check with your tow vehicles hitch manufacturer for a drop hitch ball mount or adjustable hitch ball mount. - Page 12 HOOKING UP THE TOW VEHICLE With the tow vehicle parking brake engaged, connect the coupler to the install the provided ball and then hitch pin. Safety chains are provided so that control of the trailer can be maintained In the event that your trailer becomes disconnected from the tow vehicle while towing.
- Page 13 HOOKING UP THE TOW VEHICLE Connect the trailers electrical connec- tor to the tow vehicle. If equipped with brakes, your trailer will be equipped with a breakaway brake sys- tem that can apply the brakes on your trailer in the event it becomes disconnected from the tow vehicle.
- Page 14 HOOKING UP THE TOW VEHICLE CAUTION! IF BREAKAWAY SWITCH IS ACTIVATED IT WILL DRAIN THE BATTERY VERY QUICKLY Raise the jack leg by turning the crank handle. Once leg is fully raised, remove caster wheel and secure it for travel. PAGE 13...
-
Page 15: Loading The Trailer
LOADING THE TRAILER Loading a rigid deck trailer 1. Couple the trailer to the tow vehicle WARNING Trailer must be coupled to tow vehicle before loading trailer 2. Lower rear stabilizers (if equipped) or place blocking under the rear of the trailer so the weight of the cargo does not raise the front of the trailer during loading. - Page 16 LOADING THE TRAILER Prepare the trailer for loading 1. Inspect the floorboards for damage. 2. Inspect the tie down rings and track system for damage, loose parts or signs of deformation. 3. Park the tow vehicle and trailer on a firm, level surface. 4.
- Page 17 LOADING THE TRAILER Raise the end of each ramp and set the hooks down into the channel at the back end of the trailer deck. Space ramps ac- cording to the wheelbase of the vehicle being loaded. ENSURE RAMP IS COM- PLETELY ENGAGED WITH THE TRAILER CHANNEL.
- Page 18 LOADING THE TRAILER Once equipment is loaded stow ramps back in the tail of the trailer. After stowing ramps, ensure the reten- tion pins are in place. Failure to do so May result in serious Injury or death Secure the load per state, local and federal cargo securment standards.
- Page 19 LOADING THE TRAILER Shifting cargo can result in loss of control of the trailer and tow vehicle and can lead to serious injury or death. Ensure loads are secured with proper sized fasteners, chains, straps, etc. Do not tow the trailer without verifying that the ramps are stowed securely. Failure to do so may result in damage to the trailer, tow vehicle, other motorists vehicles, serious injury or death.
-
Page 20: Service And Maintenance
SERVICE AND MAINTENANCE Check wheel bearings for heat and excessive play on a regular basis both before a trip and during regular stops such as rest breaks and fuel stops Lubricate wheel bearings every 6 months or 6,000 miles Check Tire pressure and tread before each trip Check that all lights are in working order before every trip. -
Page 21: Customer Responsibilities
Timpte Inc. Warranty Department will issue a claim number as authorization for approved warranty repair. Timpte, Inc. will not pay for any warranty work that was performed without a valid claim number. All transpor- tation charges in connection to a warranty claim will be the sole responsibility of the First Purchaser*. -
Page 22: Liability Limitations
TIMPTE’S OBLIGATION In the event of a defect in material or workmanship covered by this warranty, Timpte, Inc. in its sole discretion will correct the defective work or replace the defective parts at Timpte’s factory, a Timpte, Inc. Customer Sup- port Center or Authorized Dealer assigned by Timpte Inc. -
Page 23: Filing A Warranty Claim
FILING A WARRANTY CLAIM To file a warranty claim with Timpte Inc. pursuant to the Timpte Limited Warranty, contact the Timpte Inc. Warranty Department at (402-367-3056) or write: Timpte Inc. Warranty Department 100 Timpte Parkway David City, Ne 68632 When Filing a warranty claim several steps can be taken to aid the quick response to your request. - Page 24 TROUBLESHOOTING 7K AND 10K RAMP TRAILERS SYMPTOMS CHECK LIST CORRECTIVE ACTION LIGHTS NOT WORKING - IS TRAILER PLUGGED IN TO THE TOW -VERIFY TRAILER IS CONNECTED TO TOW VEHICLE? VEHICLE. -ARE THE TOW VEHICLE LIGHTS TURNED -ENSURE TO VEHICLE LIGHTS ARE TURNED TRAILER BRAKES NOT ACTIVATING -IS TRAILER PLUGGED IN TO THE TOW -VERIFY TRAILER IS CONNECTED TO TOW...
-
Page 25: Maintenance Intervals
MAINTENANCE INTERVALS 7K AND 10K RAMP TRAILERS ITEM INTERVAL INSTRUCTIONS TORQUE LUG NUTS -AFTER ANY TIRE OR WHEEL REMOVAL OR -TORQUE TO 90 Ft-lb, DRY REPLACEMENT -REPLACE ANY MISSING OR DAMAGED -AFTER 10,25 AND 50 MILES LUG NUTS -AT REGULAR INTERVALS WHILE TOWING -DO NOT OPERATE TRAILER WITH MISS- ING OR DAMAGED LUG NUTS WHEEL BEARINGS...
