USB-SP02/USB-SP02A/
USB-SP04/USB-SP04A

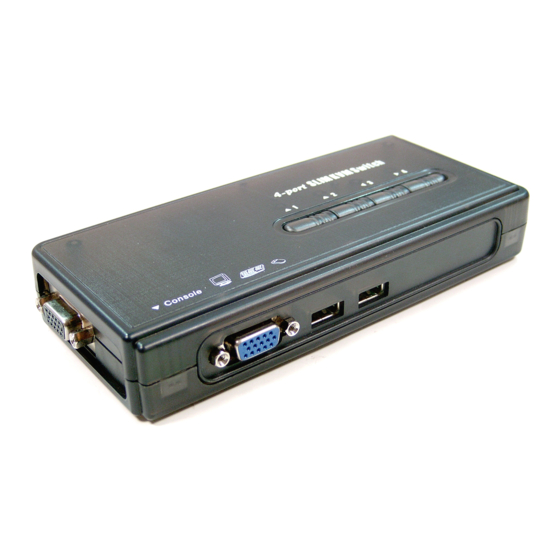

2/4-port Slim Palmtop USB KVM Switch
w/ optional Audio&Mic
Quick Installation Guide
Thank you for purchasing the USB-SP02/USB-SP02A/USB-
SP04/USB-SP04A Slim Palmtop USB KVM Switch w/
Audio&Mic! With our highly reliable and quality product, user
can enjoy countless benefits from using it.
USB-SP02
USB-SP02A (w/ Audio&Mic)
USB-SP04
USB-SP04A (w/ Audio&Mic)

Introduction

The USB-SP02/USB-SP02A/USB-SP04/USB-SP04A is a 2/4-
port Slim Palmtop USB KVM Switch with optional audio and
microphone switching function. It allows you to access, control,
boot
and
reboot
multiple
USB-enabled
independent audio/mic switching function allows an uninterrupted
audio experience on a same connected computer even when you
switch to another computer.
For Windows and Mac platforms, it provides an innovative and
easy-to-use KVM Switcher Software -- a small windows client
application to facilitate your KVM switching operations such as
PC selection and hotkey sequence programming, autoscanning,
autoscan delay time programming,
independent/simultaneous
audio&PC switching, etc.

Out-of-the-box Installation

Take the Companion CDROM and the KVM Switch out of the box
and follow the steps below for installation....
Step 1. Insert the companion CD ROM into your CD drive, and
the Autorun screen will pop up (If the Autorun feature
has not been enabled on your computer. Just find the
Autorun.exe on the CDROM and double-click it to start).
Step 2. For Windows/Mac: Just click the "Software Installation
for Window/Mac" to start installation. (If the Mac version
software does not start, you should then copy it to your
local Hard disk on Mac). Follow the instructions to
completion. If the instillation is complete, you will see a
KVM Switcher icon on the system tray of your desktop.
Right-click to evoke the operation menu and double-
click to evoke the configuration box. For operation
details of the KVM Switcher software, please refer to the
Operation Quick Reference.
The Windows switcher software is recommended for use on
Windows 98 SE or later. The Mac switcher software is recommended for
use on Mac OS 10.4 [Tiger].
Windows
computers.
The
No live connection detected
Current active PC channel is on port 1
Current active PC channel is on port 2
Applicable models: USB-SP02 / USB-SP02A / USB-SP04 / USB-Sp04A
The KVM Switcher Software supports both the Windows and the
Mac OS operating systems. For other OS platforms such as Linux, you
can still use the keyboard hotkey - ScrLk + ScrLK - to switch PC.
However, this switching hotkey is not available on non-PC platform such
as MacOS.
Step 3. Connect the shared USB keyboard, mouse, monitor,
speaker/headphone and microphone each to its port on
your KVM Switch.
Step 4. Connect each KVM PC port to a computer, using the
slim 3-in-1 KVM combo cable and the audio/mic cable.
After you have connected the KVM and computers
properly, you can operate the KVM Switch immediately.
Some older computers with USB interface might need to manually
enable the USB option in the BIOS settings before you can use any
USB devices. If your USB interface does not work, please check the
USB option in the BIOS.
If you use Windows 95/98/SE or Mac OS and has not yet installed a
USB mouse on your computer, there might be an error message
telling you that mouse is not detected and prompting you to decide
whether to ignore the same message in the future, and yet you will
find there is no mouse movement to disable this message....So it is
suggested that you should installed your USB mouse on your
computer first, before connecting it to this KVM Switch.
Mac OS

Easy Operation

There are three methods to control your KVM Switch for
PC and Audio/Mic channel selection: using (1) the face-
panel push buttons, (2) the hotkey sequences, or (3) the
KVM Switcher Software.

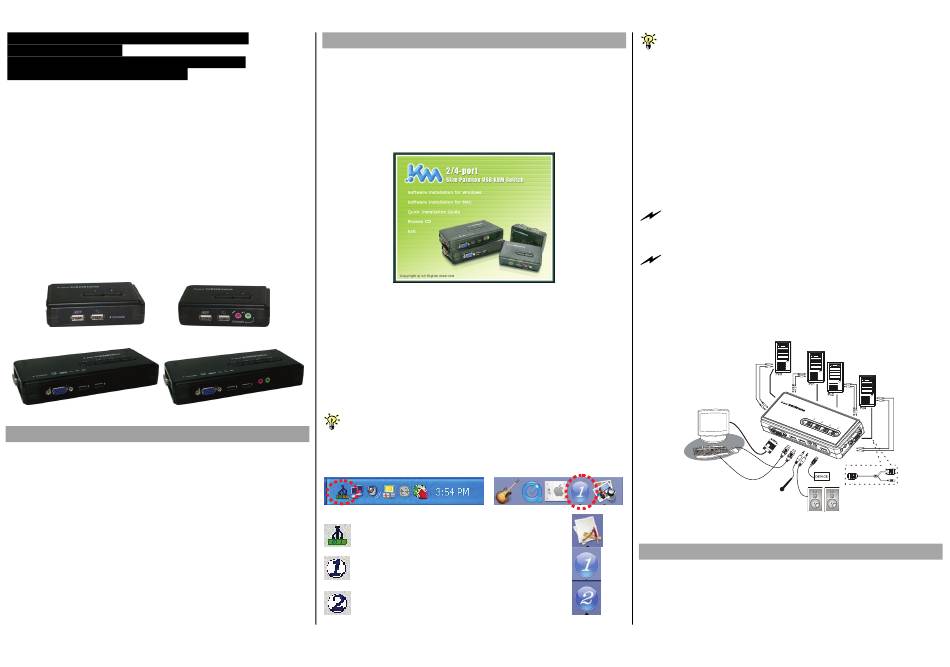

USB-SP04A Configuration Diagram
Rev. 2.0
Copyright© All rights reserved
