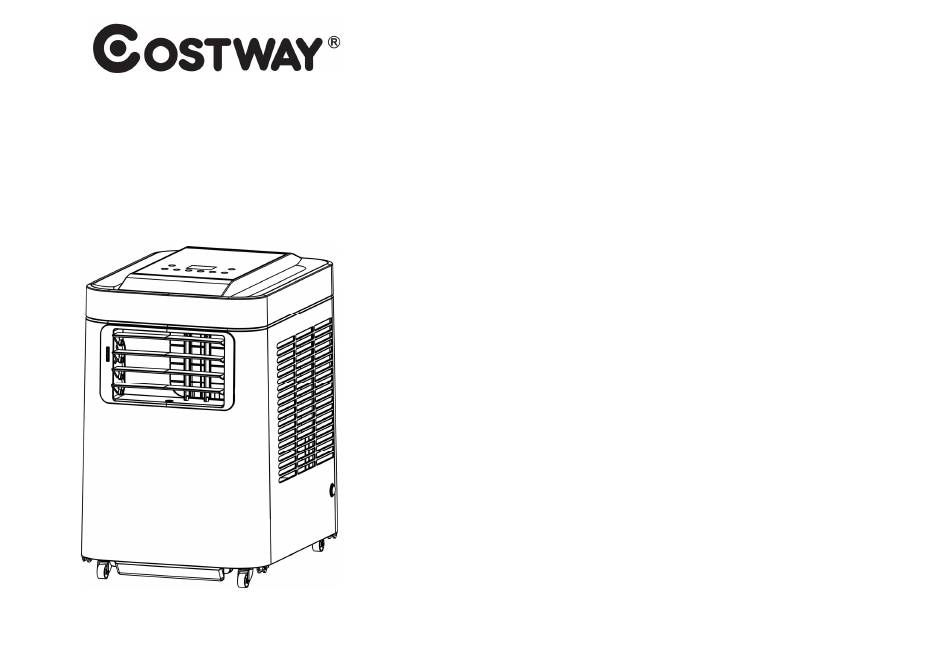

PORTABLE AIR CONDITIONER
EP23475
USER MANUAL
VERY IMPORTANT
Do not install and use your portable air conditioner
unit before carefully reading this instruction guide.
Please retain this manual brochure for product
warranty and future reference
CAUTION
1. " PLEASE MAKE SURE THE PRODUCT
VENTILATES ALL THE TIME "! Please make sure
the inlet and outlet ventilation is not blocked at all
times.
2. Operate this unit on a horizontal surface to avoid
water leakage.
3. Do not operate this unit in an explosive or
corrosive atmosphere.
4. Operate this unit in an ambient of 95℉ degree
centigrade or less.
5. Clean air filter periodically to enjoy the most
efficient cooling.
6. When the unit is shut off, please wait at least 3.5
minutes before restarting this is to prevent the
compressor from being damaged.
7. This unit needs at least 7 Amps of electricity to
have its compressor operational. To avoid the
household electricity block out, please do not use
any extension cord for this unit.
8. The product is only applicable to interior cooling ,
dehumidifying and fan.
9. When turning on the unit, the fan will operate but
the compressor will start up after the cooling
alarm flashes for three minutes.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Costway EP23475
Summary of Contents for Costway EP23475
- Page 1 Please retain this manual brochure for product PORTABLE AIR CONDITIONER warranty and future reference EP23475 CAUTION 1. " PLEASE MAKE SURE THE PRODUCT USER MANUAL VENTILATES ALL THE TIME "! Please make sure the inlet and outlet ventilation is not blocked at all times.
- Page 2 10.To avoid the hazards, contact the manufacturer, CONGRATULATIONS ON YOUR the service agent, or similarly qualified persons SELECTION OF A QUALITY to replace the damaged power cable. PORTABLE AIR CONDITIONER 11. In order to dispose the appliance safely, please remove the batteries from the unit before scrapping This Air Conditioner has been designed and manufactured to the 12.
- Page 3 UNPACKING INSTRUCTIONS NAME OF THE PARTS 1.Please put the product in a right direction before unpacking. 2. Cut off the straps. 1. Control panel 3. Grasp the carton box and hoist it so that the 2. Remote control receiver product can slide from the bottom of the box. 3.
- Page 4 CONTROL PANEL AND FUNCTION EXHAUST HOSE INSTALLATION INTRODUCTION 1. Please take out the joints from exhaust hose according to the figure “①” and connect joint a with joint b. 2.Please connect the air outlet joint with the exhaust hose in the direction according to the figure “②”.
- Page 5 current set temperature. 8. SLEEP CONTROL FUNCTION ※ The display is also used to show error codes when a fault occur, see “ERROR 1. While in cooling mode, press the SLEEP key to set the temperature. It CODES”. increases33.8℉ after an hour and at most increases 35.6℉ after 2 hours. 6.
- Page 6 NOTICE REMOTE CONTROL FUNCTION The product can evaporate condensate water and drain the water through exhaust hose automatically. 1. When the product is cooling, there is no need to install the drain pipe. Please make sure the drain hole is installed with rubber cap 2.
- Page 7 FILTER WINDOW KIT INSTALL Grab the upper panel firmly by the place pointed by two arrows in picture ①, and lift Install the Exhaust Hose and the Adjustable Window Slider Kit as upward the upper panel as shown in picture ②. depicted in Fig.1 ＆...
- Page 8 PLACE FOR USE SPECIFICATION Because the machine distributes hot air, please don’t place or EP23475 Model No. operate in a narrow place. Power Source 120V~60Hz In case of dangerous leak, don’t work the machine in a humid place. Rated Power (EN60335) Don’...
