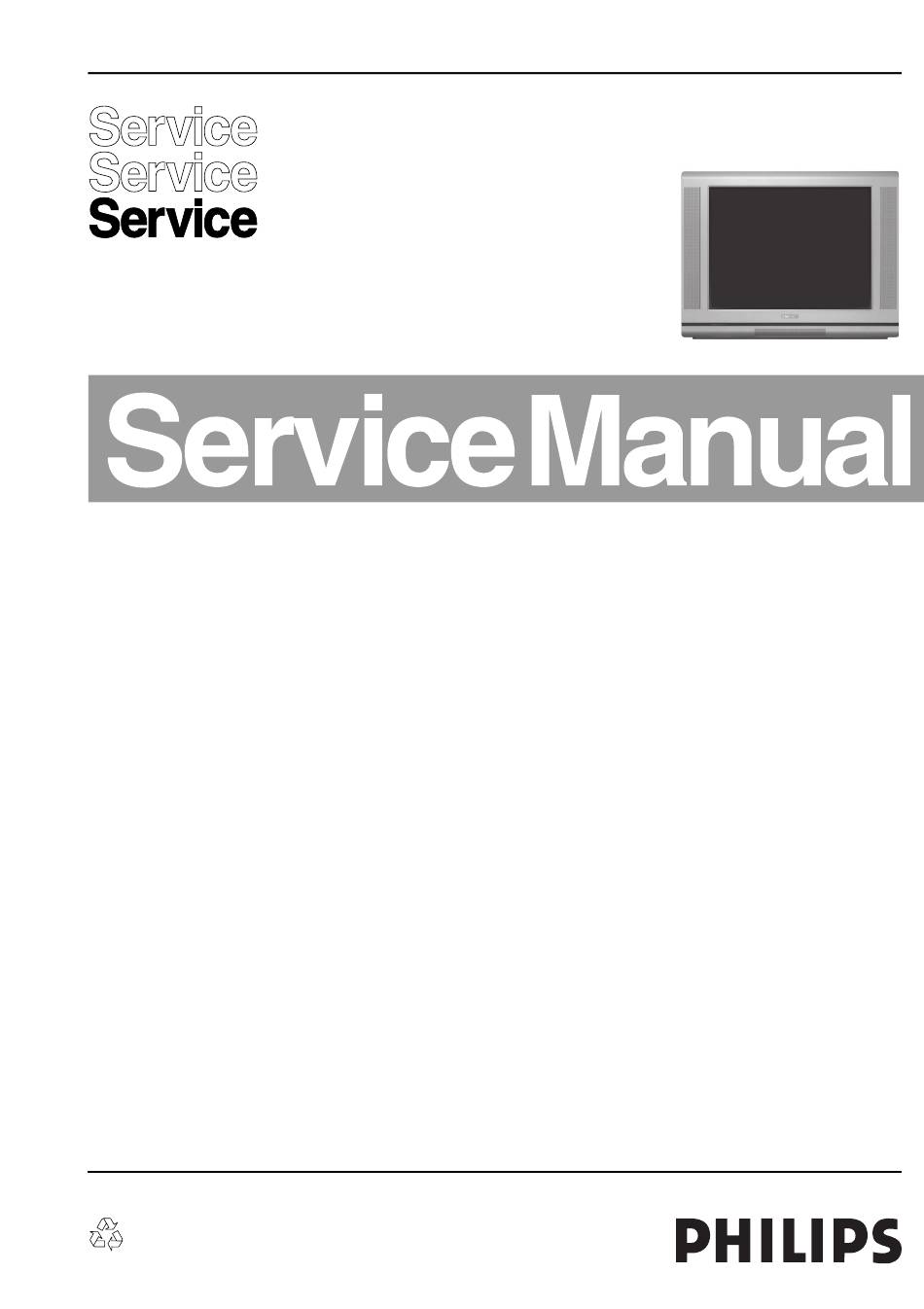

Colour Television
Contents
Waveforms
©
Copyright 2005 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Philips.
Published by JH 0563 Service PaCE
Page
Contents
2
4
6
13
25
26
27
28
29
30
31
Diagram PWB
(A1) 32
41-46
(A2) 33
41-46
(A3) 34
41-46
(A4) 35
41-46
(A5) 36
41-46
41-46
(A7) 38
41-46
(A8) 39
41-46
(A9) 40
41-46
(A10) 40
41-46
(B1) 47
49-50
(B2) 48
49-50
51
52
53
54
55
56
57
57
(T1) 58
63-64
Printed in the Netherlands
Subject to modification
Chassis
L04A
AB
E_14770_058.eps
2314 04
Page
(T2) 59
63-64
(T3) 60
63-64
(T4) 61
63-64
(T5) 62
63-64
66
67
73
81
82
84
89
EN 3122 785 14772
