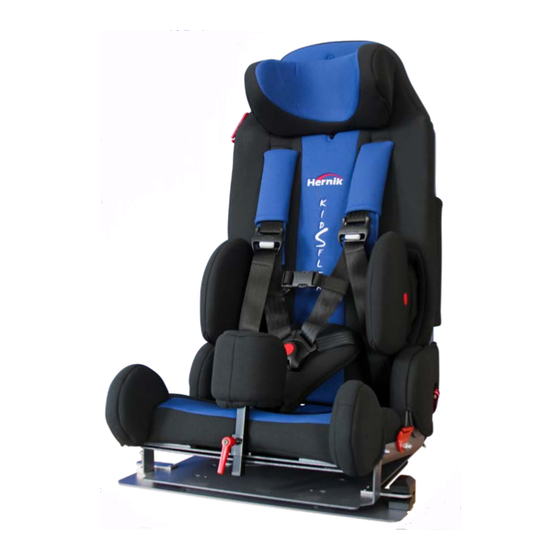

KidsFlex Car Seat
Installation and
User Manual
Small:
# 4170-0010-020
Medium:
# 4170-0020-060
Large:
# 4170-0030-090
IMPORTANT CONSUMER INFORMATION NOTICE:
This manual contains important instructions that
must be passed on to the user of this product.
Please do not remove this manual before delivery
to the end user.
SUPPLIER:
This manual must be given to the user of this product.
USER:
Before using this product, read entire manual and save
for future reference.
User Manual for all Kidsflex Car Seats
Manual: Kidsflex20201105
Serial Number:
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hernik KidsFlex 1
Summary of Contents for Hernik KidsFlex 1
- Page 1 KidsFlex Car Seat Installation and User Manual Small: # 4170-0010-020 Medium: # 4170-0020-060 Large: # 4170-0030-090 IMPORTANT CONSUMER INFORMATION NOTICE: This manual contains important instructions that must be passed on to the user of this product. Please do not remove this manual before delivery to the end user.
- Page 2 Herni USER MANUAL version: 11-2020...
-
Page 3: Table Of Contents
Herni TABLE OF CONTENTS I. General information Page Introduction Purpose and indication Relevant information Declaration of conformity Warranty Service and repair Practical instructions Installation in the car Fixing the child in the car seat II. Safety instructions Safety instructions III. Handling and functions of the basic seat Adjusting the head rest Adjusting the seat depth Adjusting the angle of the back... -
Page 4: General Information Page
Yours HERNIK GmbH 1.2 Purpose and indication The KIDSFLEX was developed for the transport of children with special needs in cars. Children with poor head or trunk control (eg infantile cerebral palsy, muscular... -
Page 5: Relevant Information
1.4 Declaration of conformity HERNIK GmbH declares in sole responsibility that the car seat "KIDSFLEX" complies with the Essential Requirements (Appendix 1 of Directive 93/42 EEC). The product is marked with the CE mark according to the above mentioned directive. -
Page 6: Installation In The Car
Herni I. General information 1.8 Installation in the car Place the child seat on the vehicle seat. Make sure that the backrest lies flat against the backrest of the vehicle seat. Tip! If the headrest of the vehicle seat disturbs, remove it. -
Page 7: Safety Instructions
Herni II. Safety instructions · Before use, the components must be checked for perfect function and condition. · The instructions for use must always be carried on the child car seat. · The safety of your child is only guaranteed if the seat is installed correctly and if the child is fixed exactly. -
Page 8: Handling And Functions Of The Basic Seat
Herni III. Handling and functions of the basic seat 3.1 Adjusting the head rest Loosen the cap nut on the back plate. Adjust the headrest to the desired height. Fix the cap nuts again. 3.2 Adjusting the seat depth ... -
Page 9: Adjusting The Belts
Herni III. Handling and functions of the basic seat 3.3 Adjusting the shoulder and lap belts Press the red button and pull the lock parts out of the lock. The individual parts of the belt must be exposed. -
Page 10: Using The Optional Accessories
Herni IV. Using the optional accessories 4.1 ISOFIX adapter Installation: Let the installation of the seat and it‘s adjust- ment be demonstrated to you by the technici- Open the setscrews on the left and right and pull the bracket out to the rear. ... -
Page 11: Clamp Bow
Herni IV. Using the optional accessories 4.2 Clamp bow Installation: Let the installation of the seat and adjust- ment of it be shown to you during the deliv- ery. Open the setscrews on the left and right and pull the bracket to the rear. -
Page 12: Security Tray
Herni IV. Using the optional accessories 4.3 Security tray Installation: Let the installation of the security tray be shown to you during the delivery. Put the security tray on the car seat after sitting your child into it and strapping it on. ... -
Page 13: Abduction Block
Herni IV. Verwendung des optionalen Zubehörs IV. Using the optional accessories 4.5 Abduction block The abduction wedge helps your child to reach a predetermined distance between the knees. In order to loosen or tightening the 5- point belt, the wedge must be removed. ... -
Page 14: Foot Rest / Foot Roll
ONE direction of rotation is possible. For a later change in the other direction, the car seat must be converted by HERNIK or an authorized specialist. The use of the ISOFIX adapter or clamp bow is strongly recommended! ... -
Page 15: Protection Mat
Herni IV. Usage of the optional accessories 4.9 Protection mat Position the protection mat on the car seat without blocking the ISOFIX connectors. Place the KIDSFLEX in the center of the protective mat and secure it as described in chapter 4.1. -
Page 16: Guarantee
• 24 months warranty on all solid parts, from date of delivery. • 12 months warranty on all moving parts, from date of delivery. For parts that were not manufactured by Hernik GMBH, please refer to the warranty policy of the respective manufacturer (Römer-Britax Kindersicherheit GmbH). -
Page 17: Maintenance & Product Care
Herni VII. Maintenance & product care 7.1. Pull off the cover The cover can be removed and washed with a mild detergent in the fine washing program of the washing machine (30 °C). Please refer to the instructions of the washing label of the cover. -
Page 18: Technical Characteristics
Herni VIII. Technical characteristics Standard equipment: • 5-point-harness with impact pad and shoulder padding • integrated headrest • adjustable seat depth • three-part basic cover, removable and washable at 30 °C • belt guide (assembled on the right or left) •... - Page 19 Herni HERNIK GmbH Auf der Gröb 2c 83064 Raubling • Germany +49 8035-9580448 • +49 8035-9580446 info@hernik.de • www.hernik.de • Seite 13 •...
- Page 20 New Zealand Head Office 22 Detroit Drive, Rolleston 7675 Call 0800 543 343 Australian Head Office 26 Pardoe Street, East Devonport, TAS 7310 Call 1300 543 343 solutions@medifab.com www.medifab.com Your enthusiastic distributor is...
