Summary of Contents for Hernik KIDSFLEX

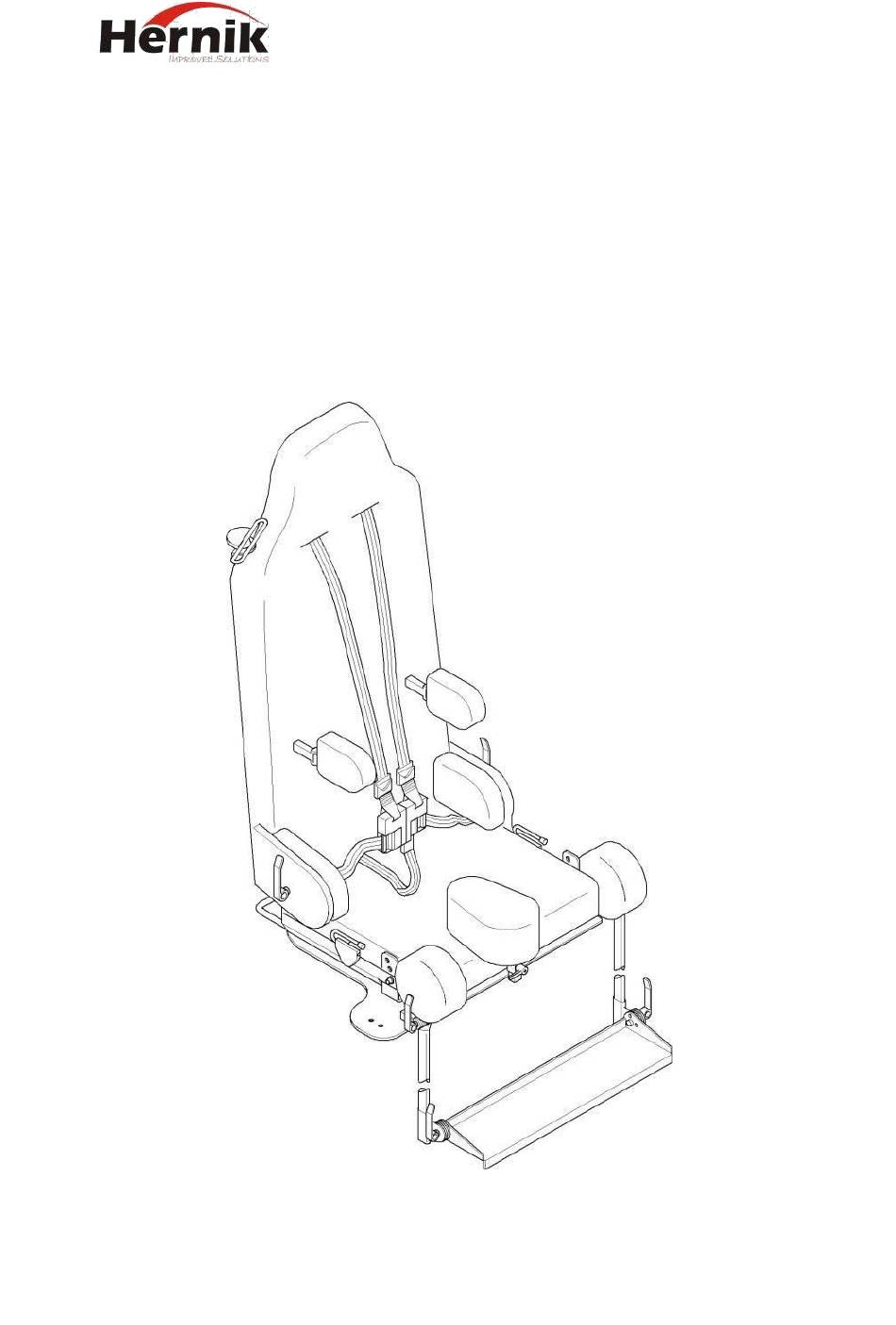

- Page 1 Providers of Rehabilitation Technology KIDSFLEX Disabled Child Car Seat Instructions...
-
Page 2: Table Of Contents
Kidsflex - Disabled Child Car Seat Dear Customer, We would like to thank you for purchasing our ‚Kidsflex special needs car seat. Prior to installation and use of this seat in a vehicle, in the interest of correct and safe use, we ask that you read carefully and understand this instruction manual. -
Page 3: General Information
The seat can be installed and used on the passenger side or on the driver side (location to be specified at purchase). In addition to the vehicles 3-point seat belt, the Kidsflex car seat is equipped with a 5-point support harness, with both shoulders, lap and crotch strap, to provide added support for the child. -
Page 4: Safety
Kidsflex- -Disabled Child Car Seat Safety Before use – all components must be checked for proper function. The operating instructions must always be carried on the car seat. Your child’s safety is only guaranteed when the seat is properly installed and... -
Page 5: Component Overview - Kidsflex
Kidsflex - Disabled Child Car Seat Component Overview - Kidsflex Base Plate 2. Framework 3. Seat Plate 4. Seat Depth Adjustment Plate Back Plate 6. Mount Bracket for Seat Belt Guide Seat Belt Guide - Shoulder Seat Belt Guide - Lap Seat Cushion 10. -
Page 6: Adjustments Kidsflex 1 And 2
Kidsflex - Disabled Child Car Seat Adjustments Kidsflex 1 and 2 Seat Depth Adjustment Remove the Seat Cushion. Loosen the screws (1) and slide the Seat Depth Adjustment Plate to the desired position.... -
Page 7: Component Overview - Accessories
Kidsflex - Disabled Child Car Seat Component Overview – Kidsflex Accessories 1. Seat Recline Adjustment 2. Swivel Base Release 3. Abductor Pommel Footrest 5. Trunk Supports (Left / Right) 6. Stabilizer Bracket / Isofix 7. Padded Play tray / Crash Pad... -
Page 8: How To Use - Accessories
Kidsflex - Disabled Child Car Seat How to Use Kidsflex Accessories Abductor Pommel To remove the Abductor Pommel, loosen the quick clamp lever (1), simply lift out the Pommel (2) from the retaining bracket (3). ... - Page 9 Kidsflex - Disabled Child Car Seat Setting the Footrest Open the quick release lever each side(1) Adjust the knee angle as required (2) close both quick release levers to set (1) Open the Allen screws each side (3) to set the height of the Footrest (5), when ...
-
Page 10: Installation In A Vehicle
Kidsflex - Disabled Child Car Seat Seating the Child Kidsflex is designed and intended for use only in the rear seat of a car Open the Child Support Harness and if necessary release some strap to make room in the harness. -
Page 11: Seat And Accessories
Hernik GmbH. Claims, irrespective of their legal basis, in particular claims for direct or indirect damages are excluded. Hernik Kidsflex Handicap Child Car Seats meet the requirements of European Standard EN 12182 and is labelled according to EU Directive 93/42/EEC. -11-... -
Page 12: Serial Number / Identification
29 to 40 cm Approved 25 kg 36 kg 75 Kg Nameplate The nameplate is readily visible on the Kidsflex The Nameplate: HERNIK GmbH – Agents for Rehabilitation HERNIK GmbH - Agentur für Reha – Technik Partenhauserweg 14 – 81369 München Technology Partenhauserweg 14 –... - Page 13 Instructions for use: ISOFIX – Mounting Bracket Our seats are available with an Isofix Adapter Bracket option, in place of the regular clamp style Stability Bracket. The Isofix Adapter Bracket allows the seat to locate to existing Isofix attachment points in all cars after 2006.
