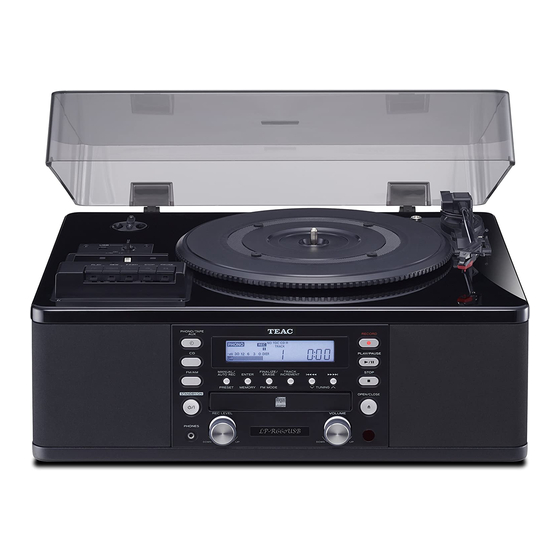

TEAC LP-R660USB USER GUIDE
NOTICE: Please read before using the Recorder! Don't be afraid to ask for help if you
need it!
RECORDING TO A CD-R/CD-RW
Recording from a Cassette
1) Power on the recorder by pressing the Power button on the front panel of the
device.
2) Set the recording source by pressing the PHONO/TAPE/AUX button on the front
panel of the device until the display reads TAPE in the top-left corner.
3) Load a recordable CD-R or CD-RW disc into the recorder.
a) Open the disc tray by pressing the Open/Close button on the front panel of the
device.
b) Insert a recordable disc into the disc tray.
c) Press the Open/Close button again to close the disc tray.
(Note: If NO TOC and CD-R (or CD-RW) do not appear at the top of the display, you
will not be able to make a recording. This usually means the disc you inserted is
either not recordable or has already been used to make a recording.)
4) Choose the tape type by flipping the Tape switch on the top of the device. (Note:
Look at your cassette to find out what kind of tape it uses. It should be labeled with
either Type I, II, or IV.)
a) If your cassette tape uses Type I tape, flip the switch to Normal.
b) If your cassette tape uses Type II or IV tape, flip the switch to High.
5) Load a cassette into the recorder.
6) Press the Record button on the front panel of the device to set it to recording mode.
(Note: This will not start the recording yet.)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the LP-R660USB and is the answer not in the manual?

Questions and answers

Summary of Contents for Teac LP-R660USB

  • Page 1 TEAC LP-R660USB USER GUIDE NOTICE: Please read before using the Recorder! Don’t be afraid to ask for help if you need it! RECORDING TO A CD-R/CD-RW Recording from a Cassette 1) Power on the recorder by pressing the Power button on the front panel of the device.
  • Page 2 7) Prepare the cassette for recording by pressing the Play button and then immediately press the Pause button. (Note: This will prevent the beginning of the recording from being cut off.) 8) To begin recording, press the Play/Pause button on the front panel and then press the Pause button for the cassette.
  • Page 3 4) Place a record on the turntable. (Note: if you have a 45 RPM large-hole single record, you will have to use the 45 RPM adapter.) 5) Select the record speed by flipping the Speed switch on the top of the machine to the correct RPM, either 33, 45, or 78.
  • Page 4 d. When the disc has finished finalizing, NO TOC will disappear at the top of the display. You can now eject your recordable disc and remove your record from the turntable. RECORDING TO AUDACITY ON A LIBRARY COMPUTER Recording from a Cassette Tape 1) Plug the device into the computer using the provided USB cable.
  • Page 5 10) To resume recording, first resume recording in Audacity by pressing the Pause button again, then press the Pause button on the cassette player to resume playback of the cassette. 11) To stop recording, first (if the cassette has not finished playback already) stop the playback of the cassette by pressing the Stop button on the cassette player, then press the Stop button in Audacity.
  • Page 6 b. Select the Export tab in the File drop down menu. c. In the Export tab, select Export Audio… (Note: You should see a new window pop up called Export Audio.) d. In the Export Audio window, choose a save destination for your recording. e.
  • Page 7 f. In the Save As Type drop down menu, select an audio standard that you would like to save your recording as. (Note: Ask for help if you have questions.) g. Select Save. (Note: You will see a new window pop up called Edit Metadata Tags.) h.
  • Page 8 4) In Audacity, change the recording source by clicking the drop down menu to the right of the microphone icon on the command bar, then select Microphone (USB Audio CODEC). 5) Place a record on the turntable. (Note: if you have a 45 RPM large-hole single record, you will have to use the 45 RPM adapter.) 6) Select the record speed by flipping the SPEED switch on the top of the machine to the correct RPM, either 33, 45, or 78.
  • Page 9 13) If you need to record multiple records in one session or if you need to record another side of a record, follow these steps: a. Stop playback of the record (if it has not finished playback already). b. Pause recording in Audacity. c.
  • Page 10 c. In the Export tab, select Export Audio… (Note: You should see a new window pop up called Export Audio.) d. In the Export Audio window, choose a save destination for your recording. e. Under File Name, enter a name for your recording. f.
  • Page 11 h. In Edit Metadata Tags window, you can create metadata for your recording if you like, including artist name, track title, year, and/or other information. Otherwise, select OK. (Note: Audacity will now begin exporting your audio recording. This may take a while depending on the length of your recording.
