OMNI mount TVM-21 Assembly Instructions

Step 6
Place platform trim piece (8) over front lip of platform.
Hold trim piece in place with your fingers while using
thumbs to spread locking tabs out and down, until they lock
in place underneath the platform.
Step 7
Step 8
Adjust platform for desired amount of tilt:
To increase tilt angle, hold top of TV and carefully push front edge of
platform backwards.
To decrease tilt angle, hold top of TV and carefully pull front edge of
platform forwards.
With tilt angle set, turn front edge of platform at right angles
to support arm. Insert small hex wrench through holes in
bottom of platform support as shown, and tighten platform
tilt screws securely.
Step 9
Press nose piece (4) into place at end of support arm, as shown.
Thank you for purchasing an OmniMount product.
Specifications are subject to change without prior notice.
Every effort has been made to provide accurate and error-free assembly and installation. OmniMount Systems disclaims
liability for any difficulties arising from the interpretation of information contained in these instructions. If OmniMount
products are used for purposes other than their original intent, OmniMount, its distributors and retailers shall not be
held responsible or liable for injuries or property damage, direct, indirect, or consequential, which may arise from the
inability to use this product safely, properly, and in the manner for which it has been designed and manufactured.
OmniMount Systems, Inc.
8201 South 48th Street • Phoenix, AZ 85044-5355
1-800-MOUNT-IT • www.omnimount.com
4
Thread open end of security strap (19) up
through a slot on the outer edge of plat-
form, across the platform, and then down
through the other slot.
Place TV squarely onto platform.
Pull two ends of security strap over TV,
thread strap ends through strap buckle (as
shown),
and
secure
tightly.
P/N 1002761—Rev. B 4/2005
Assembly Instructions

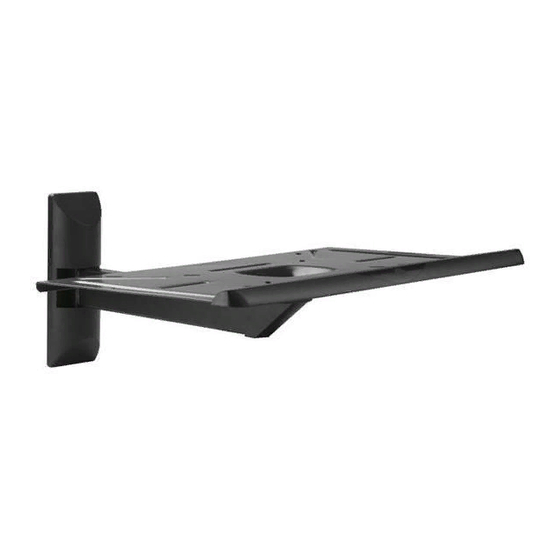

TVM-21 Television Wall Mount
TVM-27 Television Wall Mount
◊ TVM21 designed for: 19" - 21" CRT Televisions
◊
TVM21 Maximum Weight Capacity: 80 lbs. (36.3 Kg)
◊ TVM27 designed for: 25" - 27" CRT Televisions
◊
TVM21 Maximum Weight Capacity: 99 lbs. (44.9 Kg)
•
TV platform tilts and swivels
• Wall arm pivots
•
Black security strap included
• Accept optional Component Mounts
IMPORTANT: Consult a qualified installer if you have any questions
regarding the proper installation of this wall mount system.
Questions? 1-800-MOUNT IT
