Hoffmann MORSO NFXL Operating Manual

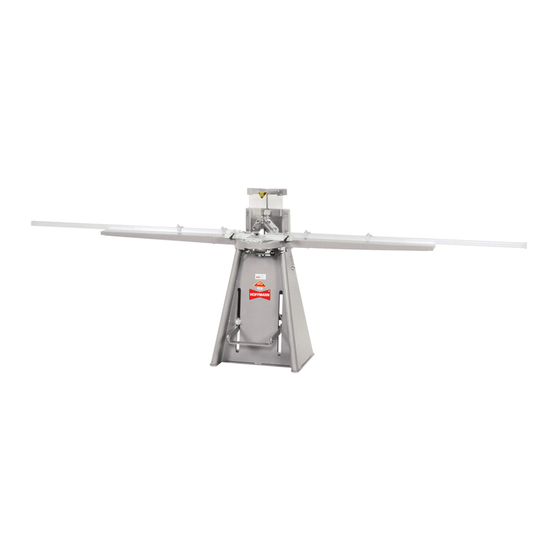

Notching machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

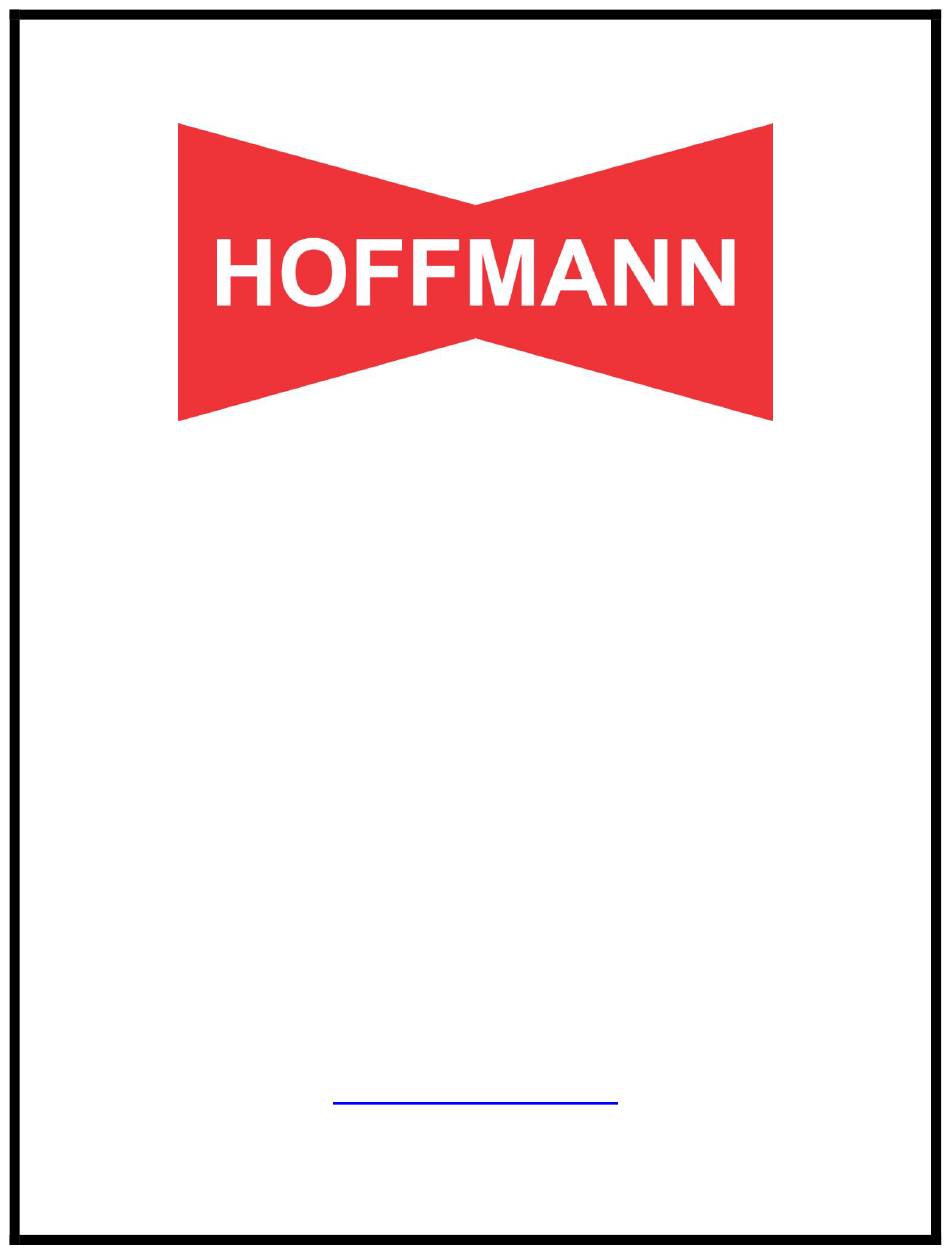

OPERATING MANUAL
for
MORSO manual notching machine
Model NFXL
Hoffmann Machine Company, Inc.
1386 Drexel Road
Valdese, NC 28690 USA
Fax: (828) 430 – 4620
Phone: (828) 430 - 4510
e-mail: info@Hoffmann-USA.com
www.Hoffmann-USA.com
Toll-free Technical Support: (866) 248 – 0100
© Hoffmann Machine Company, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MORSO NFXL and is the answer not in the manual?

Questions and answers

Related Manuals for Hoffmann MORSO NFXL

Summary of Contents for Hoffmann MORSO NFXL

  • Page 1 MORSO manual notching machine Model NFXL Hoffmann Machine Company, Inc. 1386 Drexel Road Valdese, NC 28690 USA Fax: (828) 430 – 4620 Phone: (828) 430 - 4510 e-mail: info@Hoffmann-USA.com www.Hoffmann-USA.com Toll-free Technical Support: (866) 248 – 0100 © Hoffmann Machine Company, Inc.

  • Page 2: Table Of Contents

    Regulation of Draw Bar page H-4 Adjustment of Springs page H-5 Changing of Spare Parts page H-6 Authorized U.S. Importer and Service Center: Hoffmann Machine Company, Inc. 1386 Drexel Road Valdese, N.C. 28690 Toll-free: 1 - 866 – 248 – 0100 www.Hoffmann-USA.com...

  • Page 3: Introduction

    Instruction Manual MORSØ Notch Cutting Machine Model NFX Introduction We recommend that you read this instruction manual thoroughly before using this machine. Damage or faults on the machine caused by misuse or incorrect operation are not covered under our conditions of warranty. Use of the Instruction Manual: The reference system of this Instruction Manual described below will help you to quickly find the information you require (Picture A-1)

  • Page 4: Survey

    Instruction Manual MORSØ Notch Cutting Machine Model NFX Survey Pos. Designation Pos. Designation Frame Draw Bow (not shown) Lever System (not shown) Draw Bar (not shown) Slide frame Springs (not shown) Cross Height Stop Knife block Table Extensions Knives (not shown) Safety Guard Machine Table Centre Stop...

  • Page 5: Work Piece

    Instruction Manual MORSØ Notch Cutting Machine Model NFX Work Piece Cutting of work piece on a circular saw before notching Fig. 1 Fig. 2 Before the notching of the work piece it must be cut to the correct length on a circular saw. It is very important that the saw blade is exactly adjusted to 90°...

  • Page 6: Functional Description

    Instruction Manual MORSØ Notch Cutting Machine Model NFX Functional Description General Description MORSØ-NFX notch cutter is the optimum machine to cut window bars, mullions, and cabinet face-frames requiring haunch joints. MORSØ-NFX is a manual foot-operated machine. The operation is easy. MORSØ-NFX notch cutting machine is provided with 6 sliding longitudinal stops, fixed fences (1500 mm) on both the right and left side of the machine, moveable fence, nose knives, side knives, chip-breaker, cock-bead stops, centre stop, safety guard, and waste chute.

  • Page 7: Machine Description

    Instruction Manual MORSØ Notch Cutting Machine Model NFX Functional Description Machine Description Picture Picture D-2-1 D-2-1...
  • Page 8 Instruction Manual MORSØ Notch Cutting Machine Model NFX Functional Description Machine Description PICTURE D-2: The MORSØ-NFX is constructed as a compact machine with a sturdy frame (1) with built in lever system (2). The cutting assembly is situated at the top of the machine. In the slide frame (3), fitted at the cross (4), the knife block (5) is moved up and down.
  • Page 9 Instruction Manual MORSØ Notch Cutting Machine Model NFX Functional Description Lever Linkage System...

  • Page 10: Description Of The Lever

    Instruction Manual MORSØ Notch Cutting Machine Model NFX Functional Description Description of the Lever Linkage System The cutting movement is carried out manually. The length of stroke of the knives is adjusted to max. 160 mm. The cutting takes place by means of a foot operated lever system. The pedal (12) is pressed down.

  • Page 11: Technical Data

    Instruction Manual MORSØ Notch Cutting Machine Model NFX Technical Data Technical Data...
  • Page 12 Instruction Manual MORSØ Notch Cutting Machine Model NFX Technical Data Technical Data Machine Dimensions (max.): Working Capacity: Length (a) 3,700 mm Nose Widths (NFXS) 6 – 20 mm Width (b) 510 mm Nose Widths (NFXL) 12 – 26 mm Height (c) 1,150 mm Width of Work Piece, max .

  • Page 13: Assembly Instructions

    Instruction Manual MORSØ Notch Cutting Machine Model NFX Assembly Instructions In General...

  • Page 14: Fitting Of Table Extensions And Fences

    Instruction Manual MORSØ Notch Cutting Machine Model NFX Assembly Instructions In General The machine is delivered ready for use and complete with standard equipment. Only the table extensions (18) and fences (8) are dismounted during transport. NOTE before starting up first time: 1.

  • Page 15: Operating Instructions

    Instruction Manual MORSØ Notch Cutting Machine Model NFX Operating Instructions Before Operating...
  • Page 16 Instruction Manual MORSØ Notch Cutting Machine Model NFX Operating Instructions Before Operating Before starting the machine the following must be checked and adjusted: Check a) knives (6) general condition sharpness b) waste room for waste c) safety devices fitting of all safety devices: safety guard for knives (19) d) table and table extension cleanness and undamaged surface...
  • Page 17 Instruction Manual MORSØ Notch Cutting Machine Model NFX Operating Instructions Moveable Fence...

  • Page 18: Adjustment Of Moveable Fence

    Instruction Manual MORSØ Notch Cutting Machine Model NFX Operating Instructions Adjustment of moveable fence (9) The adjustment of the moveable fence (9) to the width of the moulding is made as follows: 1. Place the moulding in the machine against the moveable fence (9). 2.
  • Page 19 Instruction Manual MORSØ Notch Cutting Machine Model NFX Operating Instructions Cock-bead stops...
  • Page 20 Instruction Manual MORSØ Notch Cutting Machine Model NFX Operating Instructions Adjustment of the cock-bead stops (10) The cock-bead stops (10) are adjusted as follows: 1. Loosen the Allen screws on the cock-bead stops (10) and move these to rear of the sliding guide.
  • Page 21 Instruction Manual MORSØ Notch Cutting Machine Model NFX Operating Instructions Centre stop G-4-1 G-4-2...

  • Page 22: Adjustment Of Centre Stop

    Instruction Manual MORSØ Notch Cutting Machine Model NFX Operating Instructions Adjustment of the centre stop (20) The centre stop (20) regulates the amount of material cut from the corners of the cross-rails. The centre stop is adjusted as follows: The adjustment screws (a) are located in each side of the Teflon head (b) on the centre stop (20).
  • Page 23 Instruction Manual MORSØ Notch Cutting Machine Model NFX Operating Instructions Flip stops G-5-1 G-5-2...

  • Page 24: Adjustment Of Flip Stops

    Instruction Manual MORSØ Notch Cutting Machine Model NFX Operating Instructions Adjustment of the flip-stops (11) Making a Template For setting the flip stop positions a template of the stile (upright section) is made. Mark the centre of the positions on the cross-rails, incl. the top and bottom rails (see fig. G-5-2) on the stile.
  • Page 25 Instruction Manual MORSØ Notch Cutting Machine Model NFX Operating Instructions Height stop...

  • Page 26: Adjustment Of Height Stop

    Instruction Manual MORSØ Notch Cutting Machine Model NFX Operating Instructions Adjustment of Height Stop (17) The height stop (17) is used for adjustment of the knife block (5) to a suitable height compared to the moulding to be cut. In this way you avoid unnecessary high foot movements. The moulding is placed on the table (the knife block must be in the rear position, as shown on the picture).
  • Page 27 Instruction Manual MORSØ Notch Cutting Machine Model NFX Service Lubrication H-1-1 H-1-2...

  • Page 28: Lubrication Instructions

    Instruction Manual MORSØ Notch Cutting Machine Model NFX Service Lubrication Instructions Approx. every two weeks lubricate the following: The guides for 1. Knife block (5) (Fig. H-1-1) 2. Slide Frame (3) (Fig. H-1-1) 3. Cross (4) (lubricates simultaneously the forward movement of the knife block). (Fig.
  • Page 29 Instruction Manual MORSØ Notch Cutting Machine Model NFX Service Changing Knives and Chip Breakers H-2-1 H-2-2 Chip Breaker...

  • Page 30: Changing Of Knives And

    Instruction Manual MORSØ Notch Cutting Machine Model NFX Service Changing of Knives and Chip Breaker – Adjustment 1. Knife Block (5) is placed in top position 2. The side knives (23) are dismounted by loosening bolts (a). The nose knife (24) is dismounted by loosening screws (b).

  • Page 31: Grinding Of Knives

    Instruction Manual MORSØ Notch Cutting Machine Model NFX Service Grinding of knives...
  • Page 32 Instruction Manual MORSØ Notch Cutting Machine Model NFX Service Grinding of Knives When grinding the knives you must only grind on the reverse of the cutting edge. You must under no circumstances grind on the front or ends of the knives, because the knives will then be useless.
  • Page 33 Instruction Manual MORSØ Notch Cutting Machine Model NFX Service Draw Bar...

  • Page 34: Regulation Of Draw Bar

    Instruction Manual MORSØ Notch Cutting Machine Model NFX Service Regulation of Draw Bar (15) As the knives are wear and with resharpening it will be necessary to adjust the draw bar (15). The following procedure is used: 1. The foot pedal (12) is pressed home and locked by means of the height stop (17). 2.
  • Page 35 Instruction Manual MORSØ Notch Cutting Machine Model NFX Service Springs H-5-1 H-5-2...

  • Page 36: Adjustment Of Springs

    Instruction Manual MORSØ Notch Cutting Machine Model NFX Service Adjustment of Springs (16) The springs (16) which retain the knife block (5) in the top position are fastened in the bottom holes in the sides of the frame by the spring holders (26). If the up and down movement is not quick enough or if the springs loose some of their tension after a while the spring holders (26) can be moved up to the next hole in the frame.

  • Page 37: Changing Of Spare Parts

    Instruction Manual MORSØ Notch Cutting Machine Model NFX Service Changing of Spare Parts If it is necessary to change worn out or damaged parts we recommend that you proceed in the following manner: 1. The index of the spare parts list (see page K-1) refers to which specific list the spare part can be located.

  • Page 38: Rectifying Faults

    Instruction Manual MORSØ Notch Cutting Machine Model NFX Rectifying Faults Rectifying Faults – Methods for Repair Faults Cause Repair Incorrect cuttings Blunt knives Replace/resharpen knives See page H-2 Knives incorrectly installed Check the installation See page H-2 Incorrect measurement The flip stops incorrectly Correct the adjustment adjusted See page F-4...

  • Page 39: Safety

    Instruction Manual MORSØ Notch Cutting Machine Model NFX Safety Safety Devices According to current safety regulations MORSØ-NFX must not be used without the following safety devices: 2. Safety Guard (19) for knife block Safety Regulations On delivery of the machine to the consumer guarantees that the MORSØ-NFX notch cutting machine is constructed and fitted according the CEN/TC 142 (Safety Regulations for wood working machinery).

  • Page 40: Index Of Spare Parts

    Instruction Manual MORSØ Notch Cutting Machine Model NFX Index of Spare Parts Oversigt - Survey - Übersicht Pos. Betegnelse Designation Benennung Side/Page/Seite Grundmaskine Basic Machine Grundmaschine Bord, komplet Table, complete Tisch, komplett Knivhovedenhed Knife Block Unit Messerkopf-Einheit Drivmekanisme Drive equipment Antriebsmechanik Topnøgle Spanner...
  • Page 41 Instruction Manual MORSØ Notch Cutting Machine Model NFX Index of Spare Parts Grundmaskine - Basic machine - Grundmaschine...
  • Page 42 Instruction Manual MORSØ Notch Cutting Machine Model NFX Index of Spare Parts Grundmaskine - Basic machine - Grundmaschine Pos. Art. No. Betegnelse Designation Bezeichnung 00000326 Stativ Frame Gestell 80372224 Skive Washer Scheibe 80382223 Skrue Screw Schraube 01602222 Højdestop Height stop Höhenbegrenzung 99990217 Drivmekanisme, komplet...
  • Page 43 Instruction Manual MORSØ Notch Cutting Machine Model NFX Index of Spare Parts Bord, komplet - Table, complete - Tisch, komplett...
  • Page 44 Instruction Manual MORSØ Notch Cutting Machine Model NFX Index of Spare Parts Bord komplet – Table, complete – Tisch, komplett Art.No. Betegnelse Designation Benennung 70001120 Bord Table Tisch 75200010 Styr f. centerstop Guide for centre stop Führung f. Mittelanschlag 70000002 Centerstop Centre Stop Mittelanschlag...
  • Page 45 Instruction Manual MORSØ Notch Cutting Machine Model NFX Index of Spare Parts Knivhovedenhed - Knife Block Unit - Messerkopf-Einheit...
  • Page 46 Instruction Manual MORSØ Notch Cutting Machine Model NFX Index of Spare Parts Knivhovedenhed - Knife Block Unit - Messerkopf-Einheit Vare- Betegnelse Designation Benennung nummer Part No. Teile Nummer 70000160 Kryds Cross Kreuzstück 43000012 Møtrik Hexagon Nut Sechskantmutter 47005030 Spændestift Clamping Pin Spannstift 74700302 V Underkniv...
  • Page 47 Instruction Manual MORSØ Notch Cutting Machine Model NFX Index of Spare Parts Knivhovedenhed - Knife Block Unit - Messerkopf-Einheit...
  • Page 48 Instruction Manual MORSØ Notch Cutting Machine Model NFX Index of Spare Parts Knivhovedenhed - Knife Block Unit - Messerkopf-Einheit Vare- Betegnelse Designation Benennung nummer Part No. Teile Nummer Til alle nakkeknive / For all Nose Knives / Zu allen Nackenmessern 70007060 Spånbryder 6 mm...
  • Page 49 Instruction Manual MORSØ Notch Cutting Machine Model NFX Index of Spare Parts Drivmekanisme - Drive Equipment - Antriebsmechanik...
  • Page 50 Instruction Manual MORSØ Notch Cutting Machine Model NFX Index of Spare Parts Drivmekanisme - Drive Equipment - Antriebsmechanik Vare- Betegnelse Designation Benennung nummer Part No. Teile Nummer 30000217 Fodvipper Foot pedal tipper Fuβhebel 01102121 Aksel Shaft Achse 80022124 Stopring Set collar Stellring 51006008 Pinolskrue...
