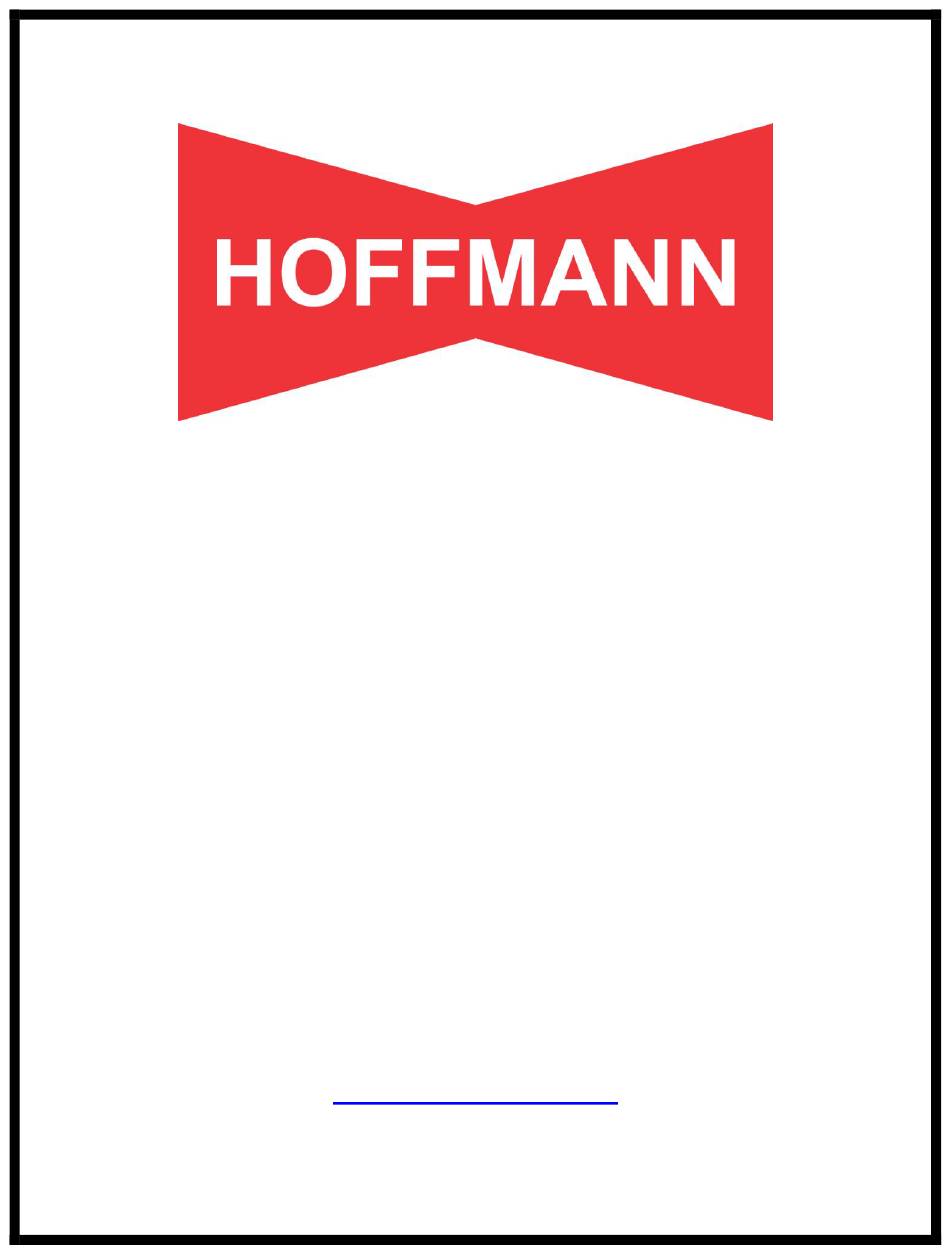

OPERATING MANUAL
for
MORSO manual notching machine
Model NM
Hoffmann Machine Company, Inc.
1386 Drexel Road
Valdese, NC 28690 USA
Fax: (828) 430 – 4620
Phone: (828) 430 - 4510
e-mail: info@Hoffmann-USA.com
www.Hoffmann-USA.com
Toll-free Technical Support: (866) 248 – 0100
© Hoffmann Machine Company, Inc.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hoffmann MORSO NM
Summary of Contents for Hoffmann MORSO NM
- Page 1 MORSO manual notching machine Model NM Hoffmann Machine Company, Inc. 1386 Drexel Road Valdese, NC 28690 USA Fax: (828) 430 – 4620 Phone: (828) 430 - 4510 e-mail: info@Hoffmann-USA.com www.Hoffmann-USA.com Toll-free Technical Support: (866) 248 – 0100 © Hoffmann Machine Company, Inc.
-
Page 2: Table Of Contents
Safety Devices page J-1 Regulations page J-1 Spare Part Lists page K-1 - page K-7 Authorized U.S. Importer and Service Center: Hoffmann Machine Company, Inc. 1386 Drexel Road Valdese, N.C. 28690 Toll-free: 1 - 866 – 248 – 0100 www.Hoffmann-USA.com... -
Page 3: Introduction
Instruction Manual MORSØ Notch Cutting Machine Model NM Introduction We recommend that you read this instruction manual thoroughly before using this machine. Damage or faults on the machine caused by misuse or incorrect operation are not covered under our conditions of warranty. Use of the Instruction Manual: The reference system of this Instruction Manual described below will help you to quickly find the information you require (Picture A-1) -
Page 4: Survey
Instruction Manual MORSØ Notch Cutting Machine Model NM Survey Survey Pos. Designation Pos. Designation Frame Sliding Stop Slide frame Foot Pedal, complete Cross Springs (not shown) Knife block Table Extensions Side Knives Safety Guard Nose Knives Centre Stop Machine Table Handle Fence Chip Breaker (not shown) -
Page 5: Work Piece
Instruction Manual MORSØ Notch Cutting Machine Model NM Work Piece Cutting of work piece on a circular saw before notching Fig. 1 Fig. 2 Before the notching of the work piece it must be cut to the correct length on a circular saw. It is very important that the saw blade is exactly adjusted to 90°... -
Page 6: Functional Description
Instruction Manual MORSØ Notch Cutting Machine Model NM Functional Description General Description MORSØ NM notch cutter is the optimum machine to cut window bars, mullions, and cabinet face- frames requiring haunch joints. MORSØ NM is a manual foot-operated machine. The operation is easy. MORSØ-NM notch cutting machine is provided with 2 sliding longitudinal stops, fixed fences on both the right and left side of the machine, nose knife, side knives, chip-breaker, cock-bead stops, centre stop, and safety guard. -
Page 7: Machine Description
Instruction Manual MORSØ Notch Cutting Machine Model NM Functional Description Machine Description Picture Picture D-2-1 The MORSØ-NM is constructed as a compact machine with a sturdy frame (1) with foot pedal (11). The cutting assembly is situated at the top of the machine. In the slide frame (2) fitted at the cross (3) the knife block (4) is moved up and down. -
Page 8: Technical Data
Instruction Manual MORSØ Notch Cutting Machine Model NM Technical Data Technical Data Technical Data Machine Dimensions (max.): Working Capacity: Length (a) 1600 mm (63”) Nose Knife Capacity 1.25 – 2,5 cm (½” -1”) Width (b) 630 mm (25”) Height (c) 840 mm (33”) Moulding width, max 115 mm (4.5”) Weight... -
Page 9: Assembly Instructions
Instruction Manual MORSØ Notch Cutting Machine Model NM Assembly Instructions In General... - Page 10 Instruction Manual MORSØ Notch Cutting Machine Model NM Assembly Instructions In General The machine is delivered ready for use and complete with standard equipment. Only the table extensions (13) and fences (8) are dismounted during transport. Place the machine 1 m from the wall as stated in E-1. The machine can be fastened to the floor using parabolts through the two holes in the bottom of the machine frame.
-
Page 11: Operating Instructions
Instruction Manual MORSØ Notch Cutting Machine Model NM Operating Instructions Before Operating... - Page 12 Instruction Manual MORSØ Notch Cutting Machine Model NM Operating Instructions Before Operating Before starting the machine the following must be checked and adjusted: Check a) knives (5 + 6) general condition sharpness b) waste room for waste c) safety devices fitting of all safety devices: safety guard for knives (14) d) table and table extension...
-
Page 13: Adjustment Of Cock-Bead Stops
Instruction Manual MORSØ Notch Cutting Machine Model NM Operating Instructions Cock-bead stops Adjustment of the cock-bead stops (9) The cock-bead stops (9) are adjusted as follows: 1. Loosen the Allen screws on the cock-bead stops (9) and move these to rear of the sliding guide. 2. -
Page 14: Adjustment Of Centre Stop
Instruction Manual MORSØ Notch Cutting Machine Model NM Operating Instructions Adjustment of the centre stop (15) The centre stop (15) regulates the amount of material cut from the corners of the cross-rails. The centre stop is adjusted as follows: The adjustment screws are located in each side of the Teflon head on the centre stop. They can be turned in or out, to allow more or less material to be cut from the corner of the cross-rail. - Page 15 Instruction Manual MORSØ Notch Cutting Machine Model NM Operating Instructions Flip stops G-4-1 G-4-2...
-
Page 16: Adjustment Of Flip Stops
Instruction Manual MORSØ Notch Cutting Machine Model NM Operating Instructions Adjustment of the flip-stops (10) Making a Template For setting the flip stop positions a template of the stile (upright section) is made. Mark the centre of the positions on the cross-rails, incl. the top and bottom rails (see G-4-2) on the stile. 1. - Page 17 Instruction Manual MORSØ Notch Cutting Machine Model NM Service Lubrication...
-
Page 18: Lubrication Instructions
Instruction Manual MORSØ Notch Cutting Machine Model NM Service Lubrication Instructions Approx. every two weeks lubricate the following: The guides for 1. Knife block (4) Slide Frame (2) Cross (3) (lubricates simultaneously the forward movement of the knife block). 4. Links for the draw bar (15) of the knife block. 5. -
Page 19: Changing Of Knives And Chip Breakers - Adjustment
Instruction Manual MORSØ Notch Cutting Machine Model NM Service Changing Knives and Chip Breakers H-2-1 Chip Breaker H-2-2... - Page 20 Instruction Manual MORSØ Notch Cutting Machine Model NM Service Changing of Knives and Chip Breaker – Adjustment Knife Block (4) is placed in top position The side knives (7) are dismounted by loosening bolts (a). The nose knife (6) is dismounted by loosening screws (b).
-
Page 21: Grinding Of Knives
Instruction Manual MORSØ Notch Cutting Machine Model NM Service Grinding of knives... - Page 22 Instruction Manual MORSØ Notch Cutting Machine Model NM Service Grinding of Knives When grinding the knives you must only grind on the reverse of the cutting edge. You must under no circumstances grind on the front or ends of the knives, because the knives will then be useless. The angle of the cutting edge compared to the front of the knife must be 28°.
-
Page 23: Changing Of Spare Parts
Instruction Manual MORSØ Notch Cutting Machine Model NM Service Changing of Spare Parts If it is necessary to change worn out or damaged parts we recommend that you proceed in the following manner: 1. The index of the spare parts list (see page L-1) refers to which specific list the spare part can be located. -
Page 24: Rectifying Faults Methods For Repair
Instruction Manual MORSØ Notch Cutting Machine Model NM Rectifying Faults Rectifying Faults – Methods for Repair Faults Cause Repair Incorrect cuttings Blunt knives Replace/resharpen knives See page I-2/I-3 Knives incorrectly installed Check the installation See page I-2 Incorrect measurement The flip stops incorrectly Correct the adjustment adjusted See page G-4... -
Page 25: Safety
Instruction Manual MORSØ Notch Cutting Machine Model NM Safety Safety Devices According to current safety regulations MORSØ-NM must not be used without the following safety devices: 1. Safety Guard (14) for knife block Safety Regulations On delivery of the machine to the consumer guarantees that the MORSØ-NM notch cutting machine is constructed and fitted according the CEN/TC 142 (Safety Regulations for wood working machinery). -
Page 26: Spare Part Lists
Instruction Manual MORSØ Notch Cutting Machine Model NM Spare Part List Machine Frame Part No. PT-0000 Long Guide Rails Part No. PT-0001 (set) - Page 27 Instruction Manual MORSØ Notch Cutting Machine Model NM Spare Part List Star Wheel Part No. PT-0004 Fitting for safety Guard Part No. PT-0005 Slide Frame Part No. PT-0002 Guidings Part No. PT-0003 Safety Guard Part No. PT-0006...
- Page 28 Instruction Manual MORSØ Notch Cutting Machine Model NM Spare Part List Bolt for Knives Part No. PT-0009 Side Knives Part No. PT-0007 Cylinder Screw Part No. PT-0010 Nose Knive Part No. PT-0008 Chip Breaker Aluminium Part for Nose Part No. PT-0011 Knife Part No.
- Page 29 Instruction Manual MORSØ Notch Cutting Machine Model NM Spare Part List Flip Stop, right side Part No. PT-0013 Handle for Flip Stop, Part No. PT-0015 Flip Stop, left side Part No. PT-0014 Handle for Flip Stop, Part No. PT-0015 Center Stop, Part No.
- Page 30 Instruction Manual MORSØ Notch Cutting Machine Model NM Spare Part List Tightening Wheel Part No. PT-0018 (Replaced by a cylinder screw) Rear Stop, left side Part No. PT-0019 Bottom Knives Part No. PT-0021 Cylinder Screw Part No. PT-0022 Tightening Wheel Part No.
- Page 31 Instruction Manual MORSØ Notch Cutting Machine Model NM Spare Part List Extension Table, Extension Table, Fence, left side Fence, right side right side left side Part No. PT-0025 Part No. PT-0023 Part No. PT-0024 Part No. PT-0026 Centre Fence, Part No. PT-0027...
- Page 32 Instruction Manual MORSØ Notch Cutting Machine Model NM Spare Part List Foot Pedal, complete Handle Tooth Arc Part No. PT-0028 Part No. PT-0029 Part No. PT-0030 Spring Holder Part No. PT-0031 Draw bar, incl. nuts Part No. PT-0035 Spring Part No. PT-0032 Draw Bow Part No.
- Page 33 Instruction Manual MORSØ Notch Cutting Machine Model NM The MORSØ Notch Cutting and Router Family Morsø Notch Cutting Machine NFX Morsø Notch Cuting Machine NF Morsø Notch Cutting Machine NXLEH Morsø Notch Cutting Machine NEH Morsø Router KS-MINI Morsø Router KSD rsø...
