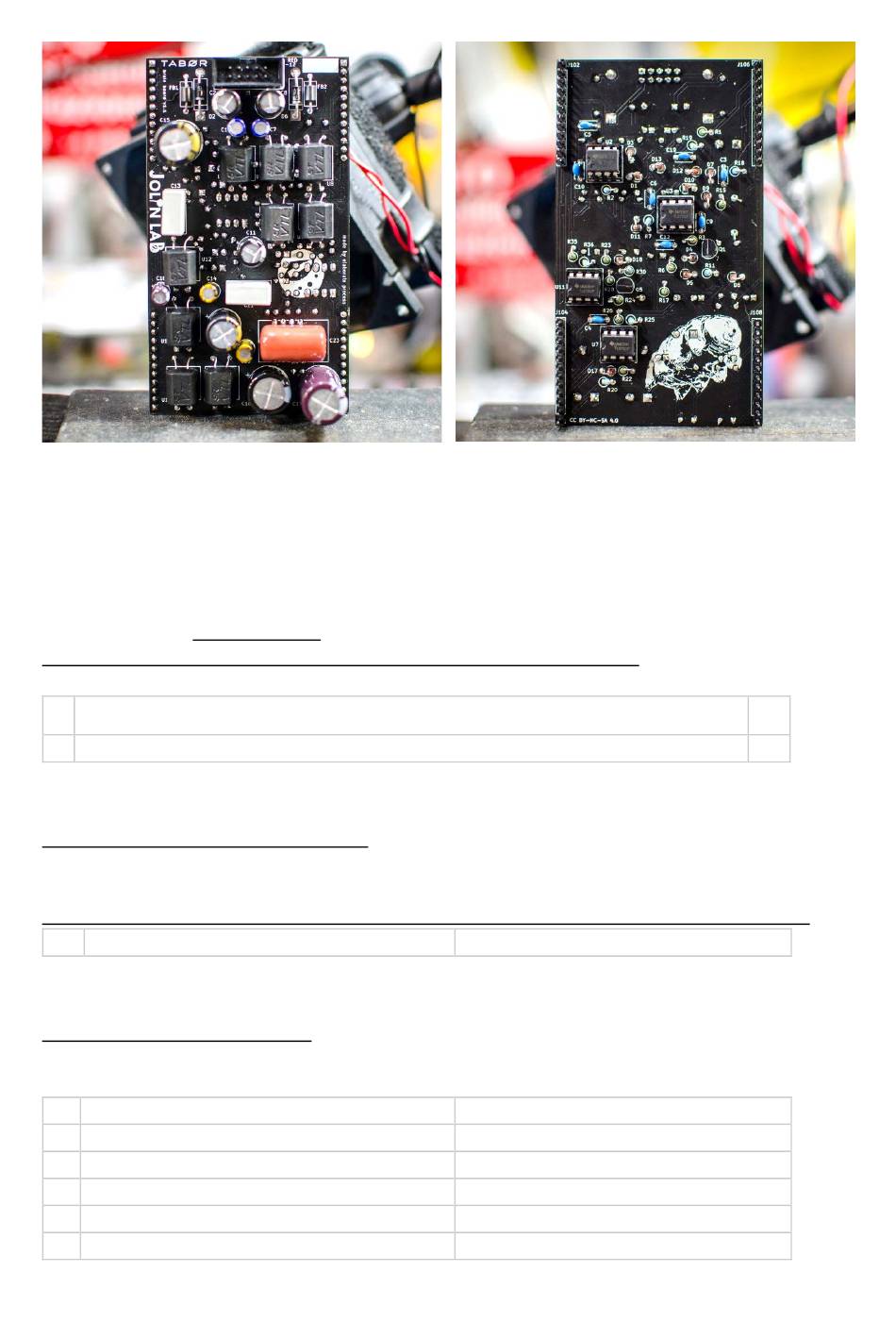

resistors:

They are placed in vertical position.
The body of the resistor goes on top of the white circle marked on the PCB.
tip: they don't have a polarity; this precaution is due to avoid them touching while soldered.
16 R4, R5, R8, R9, R10, R12, R13, R14, R16, R21, R27, R29, R31, R33, R34, R37
1
R32

transistors:

Remove the middle leg of the transistors (pin 2: the base).
tip: you can gently move it back and forth until it breaks, or you can cut it - the shortest possible
- with a wire cutter.
the "D" shape white symbol on the PCB needs to be aligned with the "D" shape of the transistor.
5
Q2, Q3, Q4, Q6, Q7

LEDs:

Short leg goes into the square pin (bottom).
Remember that Y stays for yellow LEDs, R for red, G for green and B for blue
tip: the closer to the PCB, the more they will be diffused on the panel's hollow window.
1
D21
1
D22
1
D16
1
D14
1
D15
2
D19, D20

control board

BC337
Y_3mm
R_3mm
G_5mm
Y_5mm
R_5mm
B_5mm
1k
10k
5
