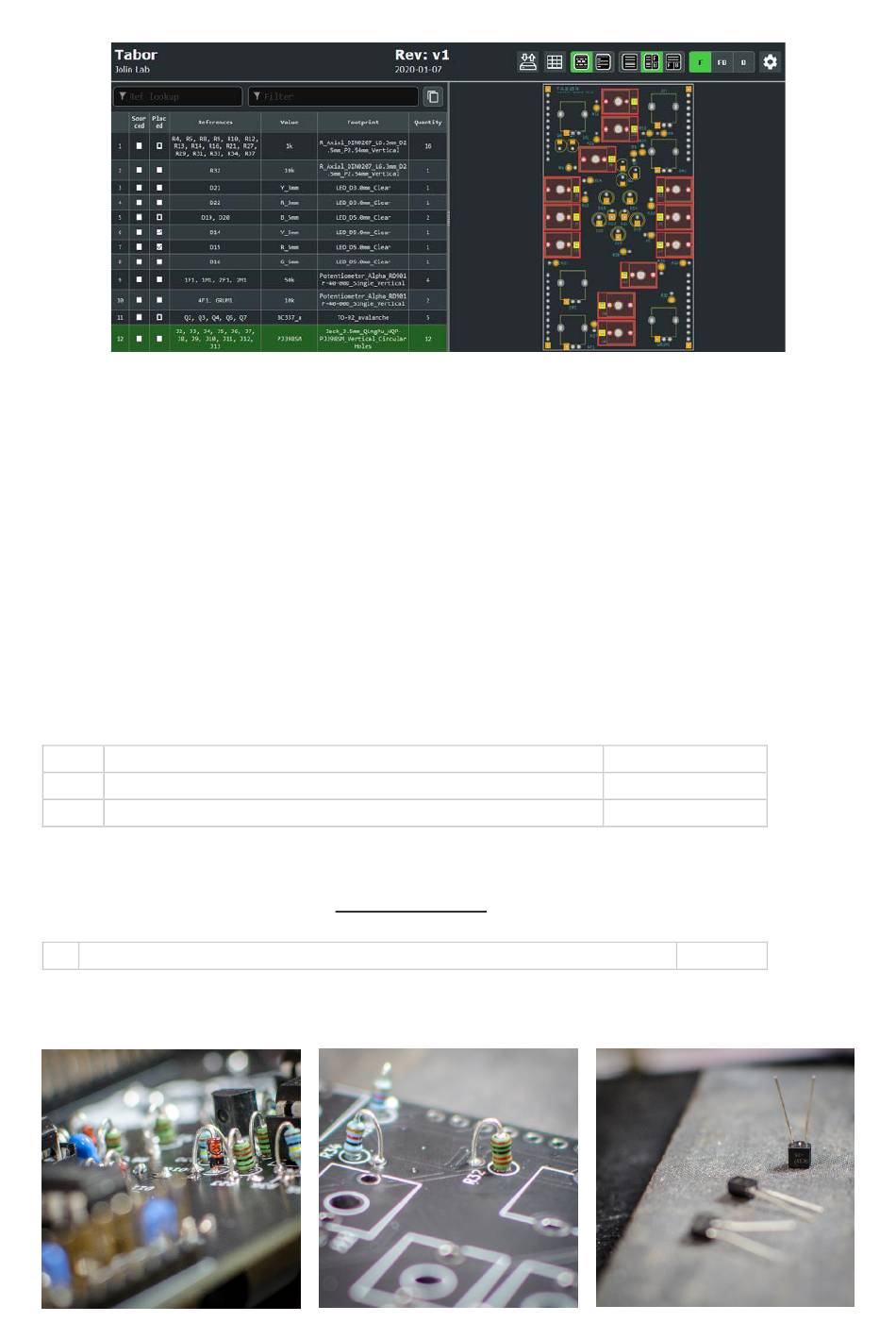

Download them and open the .html file with a browser. You can use them to check where a
component is located on the board. They work also offline.

ceramic caps:

Snap them in. Don't mind their polarity.
tip: since they are of the same height, you can wait and solder all the ceramic caps, diodes and
resistors at the same time after you've placed all of them on this side of the board.
5 C3, C4, C5, C6, C9
2 C12, C19
1 C10

diodes:

They are placed in vertical position: mind their polarity, the circular line (white) on the PCB needs to
match the circular line (black) on the component.
13 D1, D3, D4, D5, D7, D8, D9, D10, D11, D12, D13, D17, D18
now let's begin!

brain board

100n
10p
1n
1N4148
2
