Automatic Products Showcase 748 Operating Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
AUTOMATIC PRODUCTS international, ltd.
OPERATING MANUAL
PARTS MANUAL
APi 748 V1.1 406
P
LEASE DO NOT
REMOVE MANUAL
FROM MACHINE
75 West Plato Boulevard ● St. Paul, Minnesota 55107-2095
1.1
R
SERVICE MANUAL
.
P/N 77500001

Advertisement

loading
Need help?

Need help?

Do you have a question about the Showcase 748 and is the answer not in the manual?

Questions and answers

Hershy Breuer
May 14, 2025

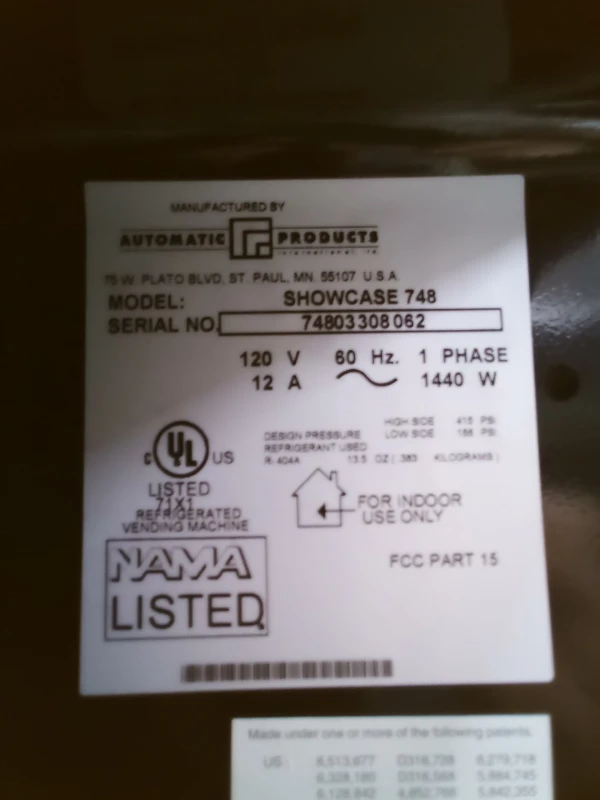

I Broke the lock, can you help me figure what type of lock it comes for my machine so I can get a new one?

User image 682523ed13c60
0
1 comments:
Mr. Anderson
May 21, 2025

The Automatic Products Showcase 748 uses a coin mech compartment key lock, specifically referred to as the "BackCoin Mech Compartment Key" with part number P/N 77500001.

This answer is automatically generated

0

Related Manuals for Automatic Products Showcase 748

Summary of Contents for Automatic Products Showcase 748

  • Page 1 AUTOMATIC PRODUCTS international, ltd. SERVICE MANUAL OPERATING MANUAL PARTS MANUAL LEASE DO NOT REMOVE MANUAL FROM MACHINE 75 West Plato Boulevard ● St. Paul, Minnesota 55107-2095 APi 748 V1.1 406 P/N 77500001...
  • Page 2 Fast Track Links Description Service Modes Troubleshooting Maintenance Parts Drawings APi 748 V1.1 406 P/N 77500001...
  • Page 3 Section 1 Warranty How to use manual Installation 1.3 – 1.4 Section 2 - Description Introduction 2.1 – 2.3 Major Components 2.4 – 2.5 Operation 2.6 – 2.7 Programmable Options 2.7 – 2.10 Section 3 – Service Mode Introduction Service Mode Map Accessing Service Modes Coin Mech Inventory 3.4 –...
  • Page 4 WARRANTY Automatic Products international ltd. (APi) expressly warrants these automatic merchandisers (the "Unit"), manufactured by it, to be free under normal use and service from defects in material or workmanship for a period of two (2) years from the date of delivery of this Unit to the original purchaser. This warranty extends only to the original purchaser of the Unit.
  • Page 5 This manual provides detailed information regarding the unpacking, setup, installation, and programming and operation of the Automatic Products international 748 Showcase cold food merchandiser. Please read and understand the contents of this manual before attempting to setup and install the machine.
  • Page 6 Section 1: Installation INTRODUCTION This section contains instructions for unpacking the APi 748 Showcase® Merchandiser and installing it on location. It is important for ease of service, reliability, and safety that you install the machine properly. DOOR UNPACKING INSTRUCTIONS Place level in position A, and adjust the bottom The APi 748 is shipped in one carton with all leg levelers, and repeat in positions B &...
  • Page 7 11. Turn the Main Power Switch ON (leaving Coin messages, then proceed to the next step. Compartment and Main Doors open). Check that fluorescent lamps 12. At power-up the following sequence of illuminated. displays should occur: 14. Check the Service Switch operation by a) The Column Price Displays will show from rotating the turret one full rotation.
  • Page 8 Section 2: Description INTRODUCTION The 748 Showcase® Merchandiser has a maximum capacity of 154 items. It is capable of 3-level pricing and 3-level discounts controlled through Event scheduling. Individual selections can be reserved and sold on specific or multiple shifts. The 748 Machine Controller permits individual programming to vend either FIFO (First In/First Out) mode or Shopper mode by shelf.
  • Page 9 Figure 2-1: Front View Figure 2-2: Coin Mech Compartment Door Shown in Open Position Back APi 748 V1.1 406 77500001...
  • Page 10 Figure 2-3: Main Door Open View Figure 2-4: Power Supply Panel Shown in Open Position Back APi 748 V1.1 406 77500001...
  • Page 11 MAJOR COMPONENTS Service Switch 748 Machine Controller This switch is located along the inside edge, on The 748 Machine Controller controls and monitors the hinge side of the Main Door. It is a momentary the 748’s performance. It also: rocker switch that can be used to rotate the turret keeps track of real time when cleaning or filling the machine with product.
  • Page 12 temperature to voltage, which is monitored by the Relay Interface Board Located on the inner front door near the lower hinge, Refrigeration/Turret Module. The temperature is this board contains the energy control relay for the transferred to the 748 Machine Controller where it is door heaters, the turret motor interlock relay, and the used for Health Control processing.
  • Page 13 THANK YOU - Displayed after a customer makes OPERATION Normal 748 machine operation will find the 748 a selection. food compartment within the storage temperature range, fluorescent lamps lit, all delivery doors NOT ENOUGH CREDIT - This message is locked, column price displays showing the prices displayed when a customer tries to make a of each adjacent compartment, and the Message purchase but has not inserted enough money.
  • Page 14 mode and the turret is not positioned at the first in PROGRAMMABLE OPTIONS product. The customer must select xx using the The 748 has several programmable options. keypad. Some options can simply be turned on or off, where other options can be scheduled to turn on SELECTING SHELF xx - This message is or off at programmed times.
  • Page 15 Shutdown and Timed Lockout Discount The Shutdown option can also be set to ON. This Three different discounts may be programmed. will cause the 748 to immediately go into Discount amounts will be subtracted from the shutdown when the coin door is closed. To restore regular price whenever that discount becomes the machine to vend mode, the coin door must be active.
  • Page 16 SCHEDULED EVENTS FIFO Vend Mode Up to 25 scheduled events may be programmed The 748 can be set up to vend items on a shelf in into the 748. A scheduled event is an option that a First-In-First-Out (FIFO) mode. This is a way to is turned on and off based on time of day and the ensure the oldest product on a shelf is purchased day of the week.
