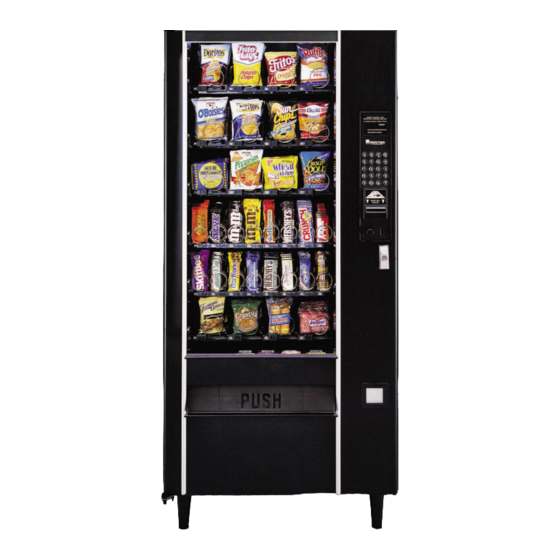

- Page 1 $3.00 SNACKSHOP LCM1-LCM2 SNACKSHOP LCM1-LCM2 SNACKSHOP LCM1-LCM2 SNACKSHOP LCM1-LCM2 SNACKSHOP LCM1-LCM2 instruction manual for SNACKSHOP LCM1-LCM2 75 WEST PLATO BOULEVARD • ST. PAUL, MINNESOTA 55107-2095...
- Page 2 EXPRESS WARRANTY Automatic Products international Itd. (APi) expressly wa r rants these automatic merchandisers (the “ U n i t ” ) , manufactured by it, to be free under normal use and service from defects in material or workmanship for a period of two (2) years from the date of delivery of this Unit to the original purchaser.
-
Page 3: Table Of Contents
table of contents Page WARRANTY..................i LCM1 CAPACITIES . -
Page 4: Lcm1 Capacities
LCM1 capacities Unless otherwise specified machine will be shipped with spiral asortment shown below. Figures in circles represent capacities in each spiral. MODEL LCM1-528 MODEL LCM1-524 Capacity as shown: Capacity as shown: 246 units 302 units MODEL LCM1-632 MODEL LCM1-628 Capacity as shown: Capacity as shown: 338 units... -
Page 5: Lcm2 Capacities
LCM2 capacities Unless otherwise specified machine will be shipped with spiral asortment shown below. Figures in circles represent capacities in each spiral. MODEL LCM2-524 MODEL LCM2-528 Capacity as shown: Capacity as shown: 370 units 454 units MODEL LCM2-628 MODEL LCM2-632 Capacity as shown: Capacity as shown: 418 units... -
Page 6: Operation Guide
operations guide CONTROL-SETUP AND OPERATION PRESS MODE SWITCH ONCE TO ENTER SERVICE MODE. THEN PRESS APPROPRIATE BUTTON ON DOOR FRONT SELECTION PAD. COIN DISPENSING PRESS NO.1 - PRESS [A] DISPENSES 25¢ COIN PRESS [B] DISPENSES 5¢ COIN PRESS [C] DISPENSES 10¢ COIN PRESS [D] DISPENSES $1.00 COIN ACCOUNTABILITY PRESS NO. -
Page 7: Unpacking
Serial Number Definition Automatic Products int’l ltd. has introduced a new serial numbering method to permit better tracking of machines, and any changes that occur. This information is being provided to you so that you understand the information contained in the serial number, and so that when you are making an inquiry about a specific machine, or require a warranty replacement, that you provide us with the complete serial number. -
Page 8: Installation
installation pastry, pies, etc., should be placed in the lowest snack 1.Leveling the Machine on location is important for the prop- er function of the machine. The four leveling screws in the shelf, making the drop distance as short as possible. legs are the means of leveling the machine. - Page 9 installation Figure 4. Alignment of moveable product spacers. 5. Product Spacers, 4-Selection Shelf. A product spacer is used to reduce the width of the product area and should be Figure 5. Placement of product on main product candy used on any 4-selection snack shelf where the product width shelves and front end of spiral.
- Page 10 installation Figure 8. Folded bagged items bottom edge forward and up. Figure 6. 8-selection shelf product spacer positioned to hold candy upright. Figure 9. Installing price tabs. inserting into the spiral space. It is also recommended to use an 18 count spiral for bagged items because of the product settling to the bottom of the package.
-
Page 11: Program Operation
installation 11. Lock Product Shelves. After all the product has been The first selection on the left contains two fillers for use loaded, be sure all shelves are returned to their vend with thin mints (Rolaids, Certs, etc.). These fillers can be position behind the front roller guide. - Page 12 program operation CAUTION: THE FOLLOWING CAUTION: THE FOLLOWING PROCEDURE REQUIRES THAT THE PROCEDURE REQUIRES THAT THE MACHINE HAVE POWER APPLIED AND MACHINE HAVE POWER APPLIED AND A POTENTIAL ELECTRICAL SHOCK A POTENTIAL ELECTRICAL SHOCK HAZARD EXISTS. HAZARD EXISTS. 4. PRESS #4 - Price Set Mode. To begin the price setting PRESS #6 - Diagnostic Vend Test.
-
Page 13: Components
components CAUTION: THE FOLLOWING PROCEDURE REQUIRES THA T THE MACHINE HAVE POWER APPLIED AND A POTENTIAL ELECTRICAL SHOCK HAZARD EXISTS. 1. Power Supply. The 120 VAC power cord from the wall out- let comes into the machine and plugs into the back of the main junction box located on the bottom right side of the cabinet. -
Page 14: Vend Motors
components 7. Vend Motors. The Snackshop LCM incorporates the use of to make sure it is fully engaged between door and trim. a high RPM DC motor. Due to new design, the vend motor b. Install the 4 screws and 2 brackets, to secure bin to may no longer be homed by hand. -
Page 15: Cleaning
cleaning The Snackshop LCM will do the best merchandising job for you The main product shelves can be best cleaned with the spirals if it is kept clean.The display window can be cleaned with any and product spacers removed. Refer to page 4 for removal of good glass cleaner. -
Page 16: Door-Outside Front
door - outside front... - Page 17 door - outside front Item Item Part No. Description Part No. Description 340044-13 Top Trim, Silver 340044-14 Top Trim, Black 201690-8 Top Trim Insert, Painted, Specify Color 201690-6 Top Trim Insert, Black Hide 440360 “MULTISNACK”TRIM INSERT 340062 Trim, Inside Vertical, Left or Right, Clear 340062-1 Trim, Inside Vertical, Left or Right, Black 340062-4...
-
Page 18: Door-Inside Front
door - inside front... - Page 19 door - inside front Item Item Part No. Description Part No. Description 440403 Instruction Glass, German 600822 Door Only, Euro Style, Specify Color. 440404 Instructions Glass, Hebrew 16000040 Door Only, Square, Specify Color. 420303 Control Board Stand - Off 440440 Instructions Glass, Italian 17400007 Instruction Glass, Hungary...
-
Page 20: Cabinet
cabinet... - Page 21 cabinet Item Item Part No. Description Part No. Description 750101-18 Cabinet Assembly Complete, w/Legs, Ambient 300137 Screw, Shelf Roller Specify Color, LCMl 440278 Gum & Mint Tray Slide 660439-2 Assembly Complete, Gum & Mint Support, 750101-21 Cabinet Assembly Complete, w/Legs, Chilled Specify Color, LCM1 Right Side, LCM1 16600039...
- Page 22 cabinet...
- Page 23 cabinet Item Item Part No. Description Part No. Description 680575 Harness Only, 5 Shelf 750101-18 Cabinet Assembly Complete, w/Legs, Ambient 660555 Assembly Cabinet Harness w/Brackets. 5 Shelf Specify Color, LCMl 750101-21 Cabinet Assembly Complete, w/Legs, Chilled 404-6 Nut, Hex Head (6-32) 380303 Assembly, Line Filter Specify Color, LCM1...
-
Page 24: Snack Shelf
snack shelf... - Page 25 snack shelf Item Item Part No. Description Part No. Description 750121-8 Assembly Complete, Snack Shelf w/o 440366 Spiral Retainer, Left Hand, Gray Spirals, LCM1 440287 Spiral Retainer, White 201534 Front Support Only 750121-7 Assembly Complete, Snack Shelf w/o Spirals, LCM2 660330-3 Assembly, Product Rail, Pastry, LCM1 750162-7...
-
Page 26: Convertible Shelf
convertible shelf... - Page 27 convertible shelf Item Item Part No. Description Part No. Description 750148-10 Assembly Complete, Convertible Shelf 460347-7 Tabs, Price, All 90¢ - 95¢ (4 Snack Selections) w/o Spirals, LCM1 460347-8 Tabs, Price, All $1.00 - $1.05 750148-11 Assembly Complete, Convertible Shelf 460347-9 Tabs, Price, All $1.10 - $1.15 (3 Snack Selections, 2 Candy) w/o Spirals,...
-
Page 28: Candy Shelf
candy shelf... - Page 29 candy shelf Item Item Part No. Description Part No. Description 750122-9 Assembly Complete, Candy Shelf w/o Coils, 460529 Tabs, Price, French LCM 1 460540 Tabs, Price, Mexico 750122-8 Assembly Complete, Candy Shelf w/o Coils, 460644 Tabs, Price, English LCM2 460727 Tabs, Price, Italian 600268-3 Candy Shelf Only, LCM1...
-
Page 30: Gum & Mint Shelf
gum & mint shelf... - Page 31 gum & mint shelf Item Item Part No. Description Part No. Description 16600004 Assembly Complete, Gum & Mint Shelf, 460352 Decal, Shelf Latch, Gum & Mint LCM 1 440270 Display Stop, Column Front, Gum & Mint 16600007 Assembly Complete, Gum & Mint Shelf, 440273 Shelf Front, Gum &...
- Page 32 delivery bin...
-
Page 33: Delivery Bin
delivery bin Item Item Part No. Description Part No. Description 660558-3 Delivery Bin Assembly, Complete, Gray 660558-1 Delivery Bin Assembly, Complete, Black 600704-1 Delivery Bin Only 640187-1 Arm Mounting Bracket 438-8 Nut, Keps (8-32) 640098 Inner Door Bin Arm 640100-1 Bin Door Drive Assembly 751-37 Retaining Ring (37) -
Page 34: Chill Machine Supplement
chill machine supplement See Page 32... - Page 35 chill machine supplement Item Item Part No. Description Part No. Description 12200008 Shelf Rear 16600077 Assembly Complete, Cabinet & Insulation Only, Specify Color, LCM2 12200009 Back 276-8R6 Screw, Pan Head, Phillips (8-32 x 3/8) 12200010 Piviot Side 12000081 Lower Air Duct 12200012 Left Shelf Support 12000087...
- Page 36 chill machine supplement...
- Page 37 chill machine supplement Item Item Part No. Description Part No. Description 16600041 Refrigeration Assembly Complete 120V, 60 Hz 202893 Evaporator Motor Bracket 16600041-01 R e f r i geration Assembly Complete 230V, 50 Hz 404 - 08 Hex Nut 8 - 32 16600108 R e f r i geration Assembly Complete 220V, 60 Hz Not Shown...
-
Page 38: Main Junction Box
main junction box Item Item Part No. Description Part No. Description 16600070 Assembly Junction Box, 120V, AMB, LCM 380285 Terminal Block 16600051 Assembly Junction Box, 120V, LCM Chill 440065 Mylar Insulation 16600071-01 Assembly Junction Box, 120V, LCM Export 420040-2 Snap Bushing/Hole Plugs (1/2) 16600072-01 Assembly Junction Box,230V, LCM Export 14A 420040-1 Snap Bushing/Hole Plugs (5/8) -
Page 39: Ap Ii Style
AP II style Item Part No. Description 340044-15 Trim, Top, For use w/Vinyl Insert 440258-9 Insert Top Trim “Snacks” 201690-13 Top Insert Black Hide 340057 Trim, Outside Vertical (right or left) 340058-2 Trim, Inside Vertical (right or left) PANEL, LEFT SIDE, VERTICAL 202059-19 Presidential Walnut, Vinyl 202059-43 Black Hide 202059-20 Painted, Specify Color... -
Page 40: Cover-Up Plate 3
cover-up plate 3 Item Part No. Description 660231-24 Trim, Horizontal w/Black Stripe PANEL, COVERPLATE 3’ ’ 201417-12 Presidential Walnut, Vinyl 201417-16 Regency Walnut, Vinyl 201690-22 Black Hide, Vinyl 201417-13 Painted, Specify Color 201417-20 Dove Gray 201417-14 Teak 340057 Trim, Outside Vertical (right or left) 340058-4 Trim, Inside Vertical (right or left) PANEL, LEFT SIDE VERTICAL... -
Page 41: Tron Ii Style
tron II style Item Part No. Description 340055-27 Trim, Horizontal 201417-17 Cover Up Plate, Galvanized 440312-2 Top Insert, Black 660231-24 Trim Horizontal, Top & Bottom, w/Black Stripe 340057-2 Trim, Outside Vertical, Left or Right, Black 340058-8 Trim, Inside Vertical, Left or Right 202059-36 L S V P Dove Gray Tron 202059-55 Sterling Royce 340058-1... -
Page 42: Genesis Style
genesis style Item Part No. Description 340042-13 Top, Trim 200526-29 Panel, Top Trim 340057 Trim, Outside Vertical, Silver 202059-43 Panel, Left Side Vertical.Black Hide 340058-6 Trim, Window. Black 340058-12 Trim, Window. Black 201356-35 Panel, Delivery Tray. Sterling Royce 340055-27 Trim, Horizontal. Black 201692-47 Panel, Lower Horizontal. -
Page 43: Vantage Style
vantage style Item Part No. Description 340044-10 Top Trim, Vantage 201690-3 Top Trim Insert. Hide Black. 201690-14 Top Trim Insert. Dark Gray 3 4 0 0 5 7 - 2 Trim Outside Ve rt i c a l .B l a ck . Right & Left Side 340058-46 Trim Vertical.Window. -
Page 44: Connectors
connectors... -
Page 45: Trouble Shooting Chart
trouble shooting chart Problem Cause Remedy No power No lights Check wall outlet for correct wiring, and line cord. See page 3. Lights work - no power Check transformer outputs to board & circuit breakers No power to the board Check wiring connections Defective power board Replace power board... - Page 46 trouble shooting chart Problem Cause Remedy Use correct change Coin tubes empty Re-fill coin tubes Says use correct change Replace coin mechanism with coin tubes full Spirals turn more than one turn Capacitor discharging current Re-solder capacitor or replace motor Loose wire on motor Repair wire Defective motor switch...
-
Page 47: Multi-Drop Bus Errors
multi-drop bus errors The following table lists the Multi-Drop Bus errors that may be displayed in the Diagnostics Mode: Multi-Drop Bus Error Display Invalid changer scale factor “CscF” Defective coin tube sensor “tSnS” Coin jam detected “CJAM” Coin tube jam detected “tJAM”... -
Page 48: Connector Pinouts
connector pinouts LCM KEYPAD PINOUTS Button Common Pin #1 Pin # Keypad operates with common (#13) plus 2 others. P8 MULTI-DROP BUS (MDB) 24 VUN...
