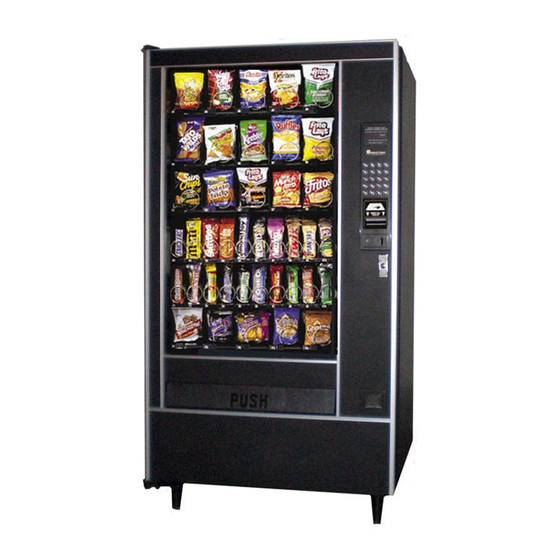

Related Manuals for Automatic Products SNACKSHOP LCM3 Series

Summary of Contents for Automatic Products SNACKSHOP LCM3 Series

  • Page 1 $3.00 SNACKSHOP LCM3-LCM4 SNACKSHOP LCM3-LCM4 SNACKSHOP LCM3-LCM4 SNACKSHOP LCM3-LCM4 SNACKSHOP LCM3-LCM4 instruction manual for SNACKSHOP LCM3-LCM4 75 WEST PLATO BOULEVARD • ST. PAUL, MINNESOTA 55107-2095...

  • Page 2: Table Of Contents

    table of contents Page WARRANTY ..................ii OPERATION GUIDE .

  • Page 3: Warranty

    (Note: For indoor use only.) All equipment manufactured by Automatic Products int’l lyd. is designed to work properly in a temperature range of 10˚C to +50˚C (50˚F to 104˚F) in still air (75% R.H. non-condensing).The unit is capable of being stored in a temperature range of -18˚C to +68˚C (0˚F to 155˚F), provided proper precautions are taken for machines that...

  • Page 4: Operation Guide

    operation guide components CONTROL-SETUP AND OPERATION PRESS MODE SWITCH ONCE TO ENTER SERVICE MODE. THEN PRESS APPROPRIATE BUTTON ON DOOR FRONT SELECTION PAD. COIN DISPENSING PRESS NO.1 - PRESS [A] DISPENSES 25¢ COIN PRESS [B] DISPENSES 5¢ COIN PRESS [C] DISPENSES 10¢ COIN PRESS [D] DISPENSES $1.00 COIN ACCOUNTABILITY PRESS NO.

  • Page 5: Capacities (Lcm3)

    capacities - LCM3 six positions. LCM3 SPECIFICATIONS HEIGHT: 72” WIDTH: 38 ⁄ ” DEPTH: 35” SHIPPING WEIGHT: 650 LBS., 750 LBS W/CHILLER UNIT FLOOR SPACE REQUIRED: 9.5 SQ. FT. SHIPPING CONTAINER SIZE: 72.5 CU. FT. POWER REQUIREMENTS: LCM3 AMBIENT = 120 VOLTS, 60 HZ, 3 AMPS 220/230/240 VOLTS, 50 HZ, 3 AMPS LCM3 CHILLED = 120 VOLTS, 60 HZ, 12 AMPS 220/230/240 VOLTS, 50 Hz, 6 AMPS...

  • Page 6: Capacities (Lcm4)

    capacities - LCM4 CAN COOL UNIT CAPACITIES LCM4 SPECIFICATIONS HEIGHT: 72” WIDTH: 38 ⁄ ” DEPTH: 35” FLOOR SPACE REQUIRED: 9.5 SQ. FT. SHIPPING CONTAINER SIZE: 72.5 CU. FT. POWER REQUIREMENTS: LCM4 AMBIENT = 120 VOLTS, 60 HZ, 8 AMPS 220/230/240 VOLTS, 50 HZ, 4 AMPS LCM4 CHILLED = 120 VOLTS, 60 HZ, 12 AMPS 220/230/240 VOLTS, 50 HZ, 6 AMPS...

  • Page 7: Unpacking

    Serial Number Definition Automatic Products int’l ltd. has introduced a new serial numbering method to permit better tracking of machines, and any changes that occur. This information is being provided to you so that you understand the information contained in the serial number, and so that when you are making an inquiry about a specific machine, or require a warranty replacement, that you provide us with the complete serial number.
  • Page 8 components components installation 1. Leveling the Machine on location is important for the prop- IMPORTANT: Product must not be forced into the spiral er function of the machine. The four leveling screws in the spaces but should fit freely. If the product is too tight, use a legs are the means of leveling the machine.
  • Page 9 components installation Figure 4. Alignment of moveable product spacers. front and rear. (Figure 4.) Continue loading all spira l s. A d j u s t with spacers where needed in the top shelf. R e t u rn the top Figure 5.

  • Page 10: Installation

    installation Figure 8. Fold bagged items bottom edge forward and up. Figure 6. 10-selection shelf product spacer positioned to hold candy upright. Figure 9. Installing price tabs. Figure 7. Location of product pusher on spiral. selections hold 21 cans each and the bottom 5 selections hold 15 cans each.
  • Page 11 program operation components counter works the same way as step “a”abo ve, except the CAUTION: THE FOLLOWING last two digits will have a decimal point in front indicating PROCEDURE REQUIRES THAT THE cents. MACHINE HAVE POWER APPLIED AND Example: Displays “0002” (1st upper four #’s) A POTENTIAL ELECTRICAL SHOCK Displays “01.20”...

  • Page 12: Program Operation

    program operation Step Procedure. 6. Vend Option Mode. To enter the vend option mode, press key [E]. The controller will display “OPtn” and wait for addi- a. In the Service mode, press [5] (displays “SLcT”). tional key to be pressed for following features: b.

  • Page 13: Selection Panel

    components payout algorithm will be implemented. e. Use Correct Change LED. If the changer’s least value coin tube is empty, the “USE CORRECT CHANGE”LED will be illuminated continuously. 7. Selection Panel. The selection panel (Figure 10., Page 9.) on the Snackshop LCM incorp o rates that use of a self enclosed membrane switch panel.

  • Page 14: Vend Can Motors

    components components Removing Delivery Bin. d. Pull the can unit out. (Because of the weight, it is rec- ommended that two persons complete this task.) a. Remove the screws from the left and right bracket of the delivery bin.These screws fas- e.

  • Page 15: Cleaning

    cleaning The Snackshop LCM will do the best merchandising job for you Clean the acceptor on the changer frequently, accumulated if it is kept clean.The display window can be cleaned with any dirt in this area can cause coins to hang or not be accepted. good glass cleaner.
  • Page 16 This page intentionally left blank.

  • Page 17: Door-Outside Front

    door - outside front...
  • Page 18 door - outside front Item Item Part No. Description Part No. Description 340044-11 Top Trim, Silver 340044-12 Top Trim, Black 201690-9 Top Trim Insert, Painted, Specify Color 201690-7 Top Trim Insert, Black Hide 201690-15 Top Trim Insert, Gray 440360 “MULTISNACK”TRIM INSERT 340062 Trim, Inside Vertical, Left or Right, Clear 340062-1...

  • Page 19: Door-Inside Front

    door - inside front...
  • Page 20 door - inside front Item Item Part No. Description Part No. Description 16000014 Door Only, Euro Style, Specify Color 440402 Instruction Glass, Dutch 16000018 Door Only, Standard, Specify Color 440403 Instruction Glass, German 420303 Control Board Stand - Off 440440 Instruction Glass, Italian 360206 Control Board w/MDB...
  • Page 21 cabinet - LCM3...
  • Page 22 cabinet - LCM3 Item Item Part No. Description Part No. Description 750101-20 Cabinet Assembly Complete, With Legs, Ambient 12000038 Plate, Gum & Mint Deflector L C M 3 12000006 Gum & Mint Tray Catch 437-41 Nut, Keps (1/4 - 28) 7 5 0 1 0 1 - 2 3 Chilled Machine Cabinet Assembly Complete with 300137...
  • Page 23 cabinet - LCM4...
  • Page 24 cabinet - LCM4 Item Item Part No. Description Part No. Description 750100-6 Cabinet Assembly Complete, w/Legs, 404-4 Hex Nut (8-32) Specify Color, LCM4 680456-1 Harness Fan 164-51-7 Screw, Hex Head, Sems (5/16-18 x 3/8) 202072 Fan Housing 640107-1 Assembly, Upper Hinge, Specify Color 360122-2 Fan Motor, 120 Volt 420003-1...

  • Page 25: Cabinet

    cabinet...
  • Page 26 cabinet Item Item Part No. Description Part No. Description 750100-6 Cabinet Assembly Complete, w/Legs, 16600092 Assembly Complete, Light Ballast & Filter, Specify Color, LCM4 120 Volt 202119 Filler Plate, Left Front 16600092-03 Assembly Complete, Light Ballast & Filter, 276-8R6 Screw, Pan Head, Self Tap (8-32 x 3/8) 230 Volt, All LCM 12000008 Shelf Support, Left Front...

  • Page 27: Snack Shelf

    snack shelf...
  • Page 28 snack shelf Item Item Part No. Description Part No. Description 750121-6 Assembly Complete, Snack Shelf w/o Spirals 276-8R6 Screw, Pan Head, Self Tap (8-32 x 3/8) 750162-6 Assembly Complete, Dual Snack Shelf w/o 600601 Shelf Plug, Bracket Only Spirals 420142-2 Pin Drive 600240-3 Snack Shelf Only...

  • Page 29: Candy Shelf

    candy shelf...
  • Page 30 candy shelf Item Item Part No. Description Part No. Description 750122-7 Assembly Complete, Candy Shelf w/o Coils, LCM4 660178 Assembly, Candy Spacer 600239-2 Candy Shelf Only, LCM4 660178-4 Assembly, Candy Spacer, Use “/Half-cycle Motor 360138-1 Vend Motor Complete, Gray & White 276-8R6 Screw, Pan Head, Self Tap (8-32 x 3/8) 360155-1...

  • Page 31: Convertible Shelf

    convertible shelf...
  • Page 32 convertible shelf Item Item Part No. Description Part No. Description 750147-12 Assembly Complete, Convertible Shelf w/o 460347-11 Tabs, Price, All $1.30 - $1.35 Spirals (5 Snack Selections) 460347-12 Tabs, Price, All $1.40 - $1.45 750147-13 Assembly Complete, Convertible Shelf w/o 460347-13 Tabs, Price, All $1.50 - $1.55 Spirals (4 Snack Selections and 2 candy) 460347-14 Tabs, Price, All $1.60 - $1.65...

  • Page 33: Gum And Mint Shelf (Lcm3)

    gum & mint shelf - LCM3...
  • Page 34 gum & mint shelf - LCM 3 Item Item Part No. Description Part No. Description 16600010 Assembly Complete, Gum & Mint Shelf 12000002-02 Strap, Gum and Mint Pusher Stop 16600011 Assembly Complete, Gum & Mint Shelf, 12000002 G & M Pusher Stop Strap, Export Only 262-6R5 Screw, Flat Hd, Phil, Type 23 (6-32 x 5/16) Export Only.
  • Page 35 delivery bin...

  • Page 36: Delivery Bin

    delivery bin Item Item Part No. Description Part No. Description 660558-2 Delivery Bin Assembly, Complete, Gray 660558 Delivery Bin Assembly, Complete, Black 600704 Delivery Bin Only 640187-1 Arm Mounting Bracket 438-8 Nut, Keps (8-32) 640098 Inner Door Bin Arm 640100-1 Bin Door Drive Assembly 751-37 Retaining Ring (37)

  • Page 37: Refrigeration Assembly

    refrigeration assembly...
  • Page 38 refrigeration assembly 117V 117V 230V, 50 Hz 230V, 50 Hz 220V, 60 Hz Description Ambient Chilled Ambient Chilled Chilled Compressor Assembly Complete 16600101 16600102 16600101-01 16600102-01 16600103 Condenser Assembly Only, Complete 16600164-02 16600164 16600164-03 1660164-01 16600164-04 Chassis Weldment 16600105 16600105 16600105 16600105 16600105...

  • Page 39: Condensing Unit Asembly

    condensing unit assembly...
  • Page 40 condensing unit assembly Item Item Part No. Description Part No. Description 660704 Assembly Complete Condensing Unit, 120 Volt, LCM4, Chilled 660704-01 Assembly Complete Condensing Unit, 230 Volt, LCM4, Chilled 660704-02 Assembly Complete Condensing Unit, 120 Volt, LCM4, Ambient 660704-03 Assembly Complete Condensing Unit,230 Volt, LCM4, Ambient 360270 Compressor Only.

  • Page 41: Cooler Door Assembly

    door assembly...
  • Page 42 door assembly Item Item Part No. Description Part No. Description 660713 Front Panel Cooler Assembly, LCM 4, Ambient 660714 Front Panel Cooler Assembly, LCM 4 - Chill (includes items 1-15) 440395 Frame, Front Panel, LCM 4, Ambient 440441 Frame, Front Panel, LCM 4 Chill 420314 Gasket 600697...

  • Page 43: Cooler Unit

    cooler unit...
  • Page 44 cooler unit Item Item Part No. Description Part No. Description 16600033-01 Cooler Assembly Only, US (355 ML) AMB 16600034-01 Cooler Assembly Only, (375 ML) AMB Special 5 3/8 Aust. 16600023-01 Cooler Assembly, UK (330 ML) AMB 16600037-01 Cooler Assembly, UK/Juice AMB 16600033 Cooler Assembly, US (355 ML) Chill 16600034...

  • Page 45: Cold Control/Timer Assembly

    cold control/timer assembly...
  • Page 46 cold control Item Item Part No. Description Part No. Description 660693 Cold Assembl y, 120V (Includes items 1-7) LCM4 2 0 2 8 4 9 Cold Control Housing Only, 120V 202366 Cold Control Housing Only, 220/240V 460642 Decal, Voltage Disconnect (Not Shown) 360204 Cold Control Switch 680648...

  • Page 47: Can Door Assembly

    can door assembly...
  • Page 48 can door assembly Item Item Part No. Description Part No. Description 660709 Service Door Assembly (includes items 1-8) 440453 Service Door Only 202848 Handle Service Door 440398-1 Shoulder Nut, Plastic (21/32) Qty. 8 217H6R5 Screw, Pan Head, Type B (#6 x 5/16) Qty 8 460635 Decal, “Product Loading Diagram”...

  • Page 49: Vend Motor Assembly

    vend motor assembly...
  • Page 50 vend motor assembly Item Item Part No. Description Part No. Description 660538 Vend Motor Rack Assembly (includes items 1-5) 660538-1 Vend Motor Rack Assembly (includes items 1-5 U.K.) 660545 Vend Motor Rack Assembly (includes items 1-5) 5 3/8 spc, Australia 202392 Motor Assembly Mounting Bracket, Bare 5 1/16 special 202421...

  • Page 51: Main Junction Box

    main junction box Item Item Part No. Description Part No. Description 16600070 Assembly Junction Box, 120V, AMB, LCM 380285 Terminal Block 16600051 Assembly Junction Box, 120V, LCM Chill 440065 Mylar Insulation 16600071-01 Assembly Junction Box,120V, LCM Export 420040-2 Snap Bushing/Hole Plugs (1/2) 16600072-01 Assembly Junction Box,230V, LCM Export 14A 420040-1 Snap Bushing/Hole Plugs (5/8)

  • Page 52: Main Junction Box, Export

    main junction box - export Item Item Part No. Description Part No. Description 660549 Main Junction Box Assembly, Complete, 440065 Mylar Insulation LCM4 & LCM3 Chilled, 230 Volt, France 380285 Terminal Block 660549-1 Main Junction Box Assembly, Complete, 276-8R4 Screw, Pan Head, Self Tap (8-32 x 1/4) LCM4, 240 Volt, Multisnack 380304 RFI Filter...

  • Page 53: Door-Front Panels And Stylings

    AP II style Item Part No. Description 340044-5 Trim, Top, For use w/Vinyl Insert 440258-2 Trim, Top, “Snacks”Insert 340057 Trim, Outside Vertical (right or left) 340058-2 Trim, Inside Vertical (right or left) PANEL, LEFT SIDE, VERTICAL 202059 Presidential Walnut, Vinyl 202059-1 Honeytone Teak, Vinyl 202059-2...
  • Page 54 cover-up plate - 3 Item Part No. Description 660231-3 Trim, Horizontal w/Black Stripe PANEL, COVERPLATE 3’ ’ 201417 Presidential Walnut, Vinyl 201417-5 Honeytone Teak, Vinyl 201417-6 Painted, Specify Color 201417-23 Black Hide, Vinyl 340057 Trim, Outside Vertical (right or left) 340058-4 Trim, Inside Vertical (right or left) PANEL, LEFT SIDE VERTICAL...
  • Page 55 award II style Item Part No. Description 340042-8 Trim, Top, For use w/Vinyl Insert VINYL INSERT, TOP ONLY 200526-4 Honeytone Teak, Vinyl 340057 Trim, Outside Vertical (right or left) 340058-7 Trim, Inside Vertical (right or left) PANEL, LEFT SIDE, VERTICAL 202059-56 Gray, Vinyl PANEL, RIGHT SIDE VERTICAL 12000042-07 Gray, Vinyl...
  • Page 56 high tech style Item Part No. Description 340042-8 Trim, Top, For use w/Vinyl Insert 201260 Vinyl Insert, Top Trim, Vinyl 340057-2 Trim, Outside Vertical (right or left) 340058-7 Trim, Inside Vertical (right or left) PANEL, LEFT SIDE, VERTICAL 202059-52 Sterling Royce PANEL, RIGHT SIDE VERTICAL 202412-16 Sterling Royce 340058...
  • Page 57 tron II style Item Part No. Description 340055-9 Trim, Horizontal, Top & Bottom, Black 201417-2 Cover Up Plate, Galvanized 440312-1 Top Insert, Black 660231-3 Trim, Horizontal 340057-2 Trim, Outside Vertical (right or left), Black 340058-8 Trim, Inside Vertical (right or left) 202059-54 L S V P Sterling Royce 340058 Trim, Horizontal, Window...
  • Page 58 genesis styling Item Part No. Description 340042-8 Trim, Top, For use w/Vinyl Insert 200526-10 Panel, Top Trim, Black Hide 340057 Trim, Outside Vertical, Silver 202059-42 Panel, Left Side, Vertical, Black Hide 340058-6 Trim, Inside Vertical, Black 340058-5 Trim, Horizontal Window, Black 201356-34 Panel, Delivery Tray, Sterling Royce 340055-9 Trim, Horizontal, Black...
  • Page 59 vantage style Item Part No. Description 340044-9 Trim, Top, Vantage 201690-2 Trim, Top, Insert, Black Hide 340057-2 Trim, Outside Vertical (right or left), Black 202059-52 Panel, Left Side Vertical, Sterling Royce 202059-50 Panel, Left Side Vertical, Dove Gray 202059-8 Panel, Left Side Vertical, Painted 340058-46 Trim, Vertical, Window (right or left), Black 340058-5 Trim, Horizontal, Window, Black...

  • Page 60: Connectors

    connectors 4 PIN INTERNATIONAL MOLEX PLUG 4 PIN INTERNATIONAL MOLEX RECEP 380296 380293...

  • Page 61: Chilled Machine Supplement - Lcm3 Only

    chill machine supplement LCM 3 See Page 59...
  • Page 62 LCM 3 chill machine supplement Item Item Part No. Description Part No. Description 750101-23 Assembly Complete. Cabinet & Insulation Only. 12200002 Right Shelf Support 276-8R6 Screw, Pan Hd.Phillips (8-32 x 3/8). 12200004 Back Left 12200008 Shelf Rear 12000087 Air Duct. 12200009 Back 460468...
  • Page 63 chill machine supplement LCM 3...
  • Page 64 LCM3 chill machine supplement Item Item Part No. Description Part No. Description 16600041 Refrigeration Assembly Complete 117V, 60 Hz 16600041-01 R e f r i geration Assembly Complete 230V, 50 Hz 16600108 R e f r i geration Assembly Complete 220V, 60 Hz (Brazil).

  • Page 65: Connector Pin Outs

    connector pinout LCM KEYPAD PINOUTS Button Common Pin #1 Pin # Keypad operates with common (#13) plus 2 others. P8 MULTI-DROP BUS (MDB) 24 VUN...

  • Page 66: Trouble Shooting Chart

    trouble shooting chart Problem Cause Remedy No power No lights Check wall outlet for correct wiring, and line cord. See page 3. Lights work - no power Check transformer outputs to board & circuit breakers No power to the board Check wiring connections Defective power board Replace power board...
  • Page 67 trouble shooting chart Problem Cause Remedy Use correct change Coin tubes empty Re-fill coin tubes Says use correct change Replace coin mechanism with coin tubes full Spirals turn more than one turn Capacitor discharging current Re-solder capacitor or replace motor Loose wire on motor Repair wire Defective motor switch...

  • Page 68: Multi-Drop Bus Errors

    multi-drop bus errors The following table lists the Multi-Drop Bus errors that may be displayed in the Diagnostics Mode: Multi-Drop Bus Error Display Invalid changer scale factor “CscF” Defective coin tube sensor “tSnS” Coin jam detected “CJAM” Coin tube jam detected “tJAM”...
  • Page 69 notes...
  • Page 70 notes...
  • Page 71 notes...

  • Page 73: Schematics

    120 V...
