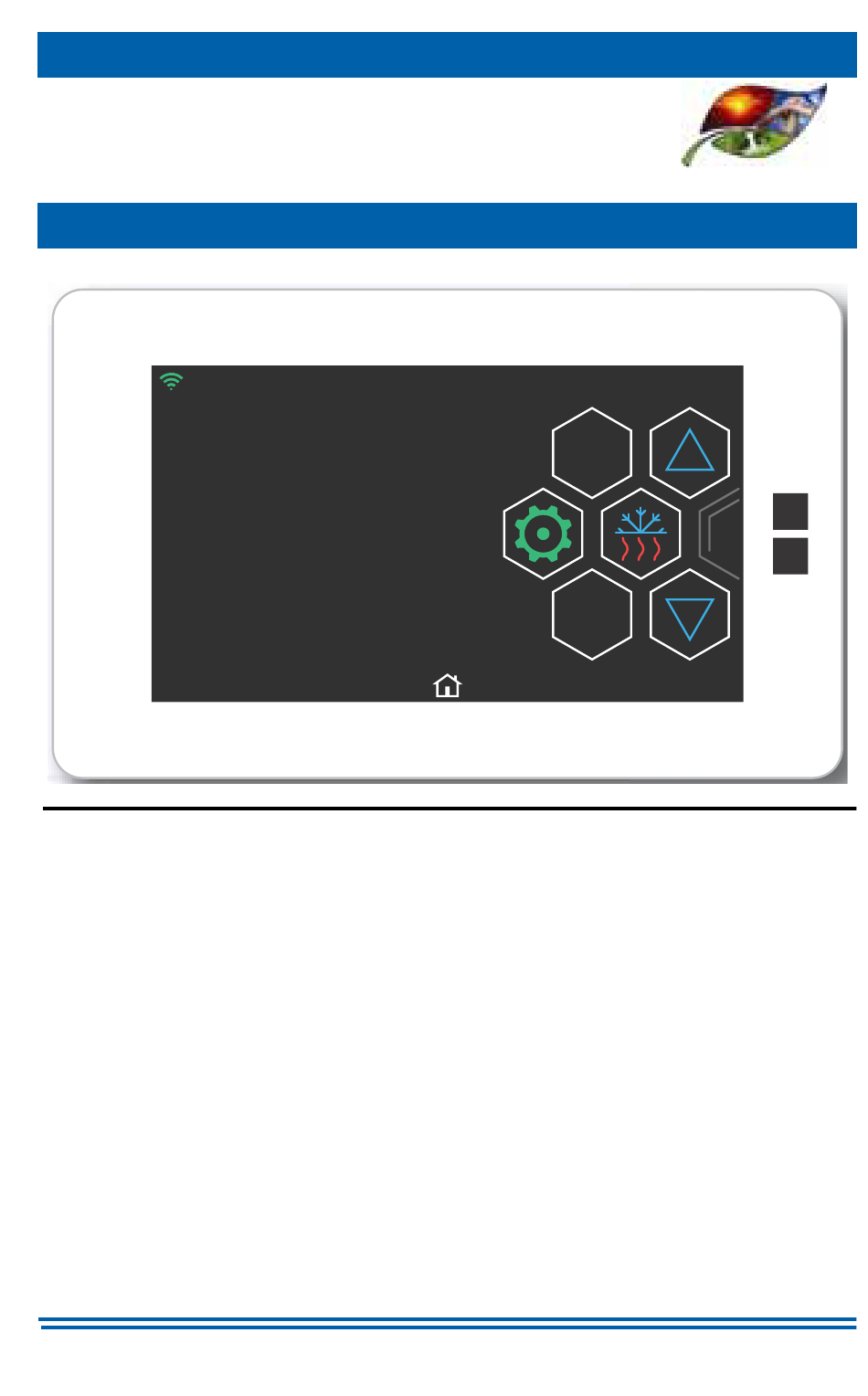

USER'S INFORMATION MANUAL

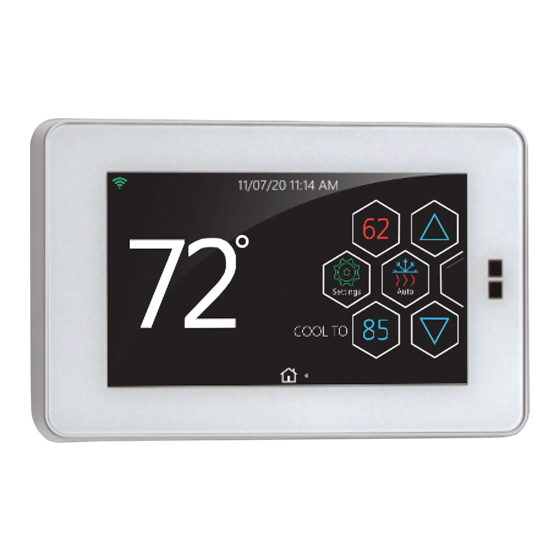

Hx3™ TOUCH SCREEN THERMOSTAT
MODELS: S1-THXU430W
72
PRODUCT DESCRIPTION...............
Content.............................................
Features............................................
THERMOSTAT CONTROLS............
Home Screen....................................
Secondary Home Screen..................
Modes of Operation...........................
SETTINGS........................................
Humidity Settings..............................
Fan Settings......................................
Lockout Settings...............................
Banner Information...........................
ADVANCED SETTINGS...................
Schedule Settings.............................
Schedule Override Settings..............
Wi-Fi® Network Status......................
Johnson Controls Unitary Products
12/31/17 11:14AM
º
TABLE OF CONTENTS
2
HOMEOWNER APP.........................
2
App Wi-Fi® Connectivity...................
3
LOCATIONS AND MENU.................
Manage Dealer Access.....................
4
6
Tips Screen.......................................
7
Grant Dealer Access.........................
8
Screen...............................................
9
11
SCHEDULE MANAGEMENT...........
12
APP SETTINGS................................
13
Away Mode.......................................
14
Notifications......................................
15
Amazon Alexa Setup........................
17
Apple Watch Setup...........................
18
Warranty...........................................
19
68
72
.
Energy Saver
21
23
27
28
29
30
31
32
34
35
37
38
40
41
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Johnson Controls Hx3 S1-THXU430W
Summary of Contents for Johnson Controls Hx3 S1-THXU430W
-
Page 1: Table Of Contents
App Home and Secondary Home Screen..........SETTINGS........Humidity Settings......SCHEDULE MANAGEMENT... Fan Settings........APP SETTINGS........ Lockout Settings....... Away Mode........Banner Information......Notifications........Amazon Alexa Setup......ADVANCED SETTINGS....Schedule Settings......Apple Watch Setup......Schedule Override Settings....Warranty........... Wi-Fi® Network Status...... Johnson Controls Unitary Products 5407935-UUM-B-0818... -
Page 2: Product Description
Cancer and Reproductive Harm – www.P65Warnings.ca.gov PRODUCT DESCRIPTION Content Inside the box you can find the following items, see Figure 1. Thermostat User and Installer Manuals Thermostat Mounting Screws Drywall Anchors Retaining Screws A0975-001 Figure 1: Content Overvie Johnson Controls Unitary Products... -
Page 3: Features
Near Field Communi- cation (NFC) Func- Used for passive/active limited data transfer. tionality Supports 802.11 a/b/g/n standards and utilizes Wi-Fi Connectivity a Broadcom chipset. iOS and Android app for end-user Smart Phone Cloud Connectivity or Tablet control. Johnson Controls Unitary Products... - Page 4 4.3” TFT 320x240 Enhanced 80° viewing angle in all directions. QVGA Color Display RS-485 For modbus communication protocols. Communications Bus Over The Air (OTA) Can reprogram the board functionality Wi-Fi. Functionality Johnson Controls Unitary Products...
-
Page 5: Thermostat Controls
To prevent damage to the thermostat, always press keys with your fingertip. Advanced Confirm/Yes Settings Auto Cool Away Date Emergency Backlight Heat (Heat pump only) Banner Cancel Filter Clean Screen Heat A0977-01 Figure 3: Thermostat Controls Johnson Controls Unitary Products... - Page 6 5407935-UUM-B-0818 Home Reset Humidity Schedule Schedule Override MAX Cool Service MAX Heat Settings Software PIN Disable Status PIN Edit Time Toggle PIN Enable Fwd/Back A0978-001 Thermostat Controls Continued Figure 4: Johnson Controls Unitary Products...
-
Page 7: Home Screen
Temperature Wi-Fi® is a registered trademark of Wi-Fi Alliance.® A0979-002 Home Screen Figure 5: The Home and Secondary Home screen may differ slightly, depending on your heating and/or cooling system and the Communicating Control’s display settings. Johnson Controls Unitary Products... -
Page 8: Secondary Home Screen
Figure 6. Max Heat Set Point 12/31/17 11:14AM º Humidity Max Cool Schedule (Visible in Programmable Mode only) Set Point A0980-001 Secondary Home Screen Figure 6: To return to the Home screen, swipe right or select Home. Johnson Controls Unitary Products... -
Page 9: Modes Of Operation
(red) and use the Up/Down arrows to select the required setpoint. • For automatic cooling, on the Home screen (see Figure 5), select Cool Setpoint (blue) and use the Up/Down arrows to select the desired setpoint. See Figure 8. Johnson Controls Unitary Products... -
Page 10: Settings
2. Select the desired icon to view or edit settings. For example, select the Time icon to change the time or date the thermostat displays. 3. To return to the Settings screen, swipe left or right. Johnson Controls Unitary Products... - Page 11 SETTINGS A0984-001 Figure 10: Settings Icons A. Humidity H. Status B. Banner I. Clean Screen C. Fan J. Software D. Advanced Settings K. Backlight E. Log L. Time/Date F. Filter Reminder M. PIN Enable G. Service Johnson Controls Unitary Products...
-
Page 12: Humidity Settings
• Auto mode automatically sets the humidity setpoint based on indoor A0986-001 and outdoor temperatures. NOTICE • Auto mode requires an outdoor sensor. • If condensation appears on your windows, lower the humidity setpoint or switch to Auto mode. Johnson Controls Unitary Products... -
Page 13: Fan Settings
Figure 13: Fan Setting Options CFM Percentage Communicating ONLY The blue Up/Down arrows and CFM percentage only appear if the following applies: • If the fan operation is NOT in Auto mode. • With communicating indoor equipment only. Johnson Controls Unitary Products... -
Page 14: Lockout Settings
6. To edit or disable the PIN, on the Lockout screen, select the Edit PIN icon or the Disable icon. See Figure 15. A0990-001 A0991-001 Figure 14: Lockout Disabled Figure 15: Lockout Enabled Banner Settings Cancel A0992-001 Figure 16: Set Pin Screen Johnson Controls Unitary Products... -
Page 15: Banner Information
• Use the yellow scroll bar to see all of the available options. • On the Banner screen, enable or disable banner information by tapping on the Check Marks icons. Johnson Controls Unitary Products... -
Page 16: Advanced Settings
Use the Advanced Settings screen to configure the thermostat, see Fig- ure 19. Once an item from the Advanced Settings list is selected, a selection screen similar to Figure 20 displays. A0995-001 Figure 19: Advanced Settings A0996-001 Figure 20: Advanced Settings - Sound Johnson Controls Unitary Products... - Page 17 The Schedule Icon will not be visible in non-programmable mode. Operating the thermostat in programmable mode allows the user to setup heating and cooling setpoints for four periods of each day, seven days of the week. Johnson Controls Unitary Products...
-
Page 18: Schedule Settings
Refer to the next page for information on the schedule over- ride settings. Fan Screen View: (VIEW ONLY) To program your fan settings use the Hx™ Thermostat app. For all available fan setting options see Figure 22. Johnson Controls Unitary Products... -
Page 19: Schedule Override Settings
• On the Home screen, on a thermostat with a set schedule, select the Up/Down arrows. The Schedule Override icon (a calendar with a red line across it) appears in the center. See Figure 7. Scroll Bar OVERRIDE SETTINGS UNTIL CANCELLED NEXT EVENT A0999-001 Figure 23: Schedule Override Screen Johnson Controls Unitary Products... -
Page 20: Wi-Fi® Network Status
To access the Wireless Status screen, select the Wi-Fi® Signal Strength icon on the banner. This screen provides Wi-Fi® connectivity information. To disconnect from the current network, press Disconnect. See the App Wi-Fi® Connectivity section for instructions on network con- nections. Johnson Controls Unitary Products... -
Page 21: Homeowner App
Review and click on link. Select OK to confirm email. (Figure 30). NOTICE iOS users cannot use the Gmail native app. They can receive Gmail by setting up a Gmail account through the iOS email app. Johnson Controls Unitary Products... - Page 22 Step 2 - Logging In Select Log In and type in the email address and password (Figure 31) that was chosen during the registration process in Step 1. The Locations screen now displays on your smart device (Figure. 32). Johnson Controls Unitary Products...
-
Page 23: App Wi-Fi Connectivity
2. On the thermostat Home screen, select the red Wi-Fi icon. 3. On the Wireless Status screen, select Setup (Figure 33). 4. View and follow device-specific setup instructions below. SSID WIRELESS STATUS Wi-Fi® Signal SSID RIPL-z000zzz0000z z000zzz0000z AC000W000000000 A1009-001 Figure 33: Wireless Setup Johnson Controls Unitary Products... - Page 24 Setup a new thermostat Figure 34: Thermostat Search Setup a new thermostat Select the device your want to set up: RIPL-x000xxx0x00x Figure 35: Device Setup NOTICE ALL users MUST connect their thermostat to 2.4GHz frequency on dual band routers. Johnson Controls Unitary Products...
- Page 25 If you are not automatically redirected to the Hx™ Thermostat app, select Done (Figure 37). Do NOT select any other button on this screen. Settings Wi-Fi Wi-Fi myWifI CHOOSE A NETWORK... NETGEAR14 RIPL-x000xxx0x00x Figure 36: Wi-Fi Settings Figure 37: WiFi Network List Johnson Controls Unitary Products...
- Page 26 5407935-UUM-B-0818 A1012-001 Figure 38: Add New Device Instructions Johnson Controls Unitary Products...
- Page 27 NOTICE The smart device might be connected to the RIPL network. If so, this network must be “Forgotten” on the smart device. Go to the smart device settings and under Wi-Fi® select “Forget” the “RIPL” network. Johnson Controls Unitary Products...
-
Page 28: Locations And Menu
• Manage Dealer Access: See next page. • About: App software revision and a link to the privacy policy. • Logout: Logs out the user and displays the Login screen. A1016-001 A1015-001 Figure 40: Locations Figure 41: Menu Johnson Controls Unitary Products... -
Page 29: Manage Dealer Access
See Figure 43. Tips icon A1017-001 Figure 42: Manage Dealer Access Manage Dealer Access Select thermostats to revoke dealer access ∞ TSTAT 2 Revoke Access Revoke Access A1018-001 Figure 43: Revoke Dealer Access Johnson Controls Unitary Products... -
Page 30: Tips Screen
5407935-UUM-B-0818 Tips Screen The Tips screen defines icons and dealer access based on the selec- tions made by the user. See Figure 44. A1019-001 Figure 44: Tips Screen Johnson Controls Unitary Products... -
Page 31: Grant Dealer Access
This screen appears after you review the dealer email and select the device-specific link. The user has full rights to change the Role, Duration and Location(s) as needed. See Figure 45. Tips icon Grant Dealer Access A1020-001 Figure 45: Grant Dealer Access Johnson Controls Unitary Products... -
Page 32: App Home And Secondary Home Screen
Schedule Management section for more information on how to change schedule settings. Settings: Select to manage a separate set of commands different from the thermostat settings. Refer to the App Settings section for more infor- mation. Johnson Controls Unitary Products... -
Page 33: Schedule Management
4. To open the Edit Schedule screen (Figure 49), select any day part (highlighted in green in Figure 48). 5. On the Edit Schedule screen, select the setpoint, time (hour and min- ute), AM/PM, and fan for editing. See Figure 49. Johnson Controls Unitary Products... - Page 34 • Events: Select to choose between 4 day parts (default) and 2 day parts. See Figure 50. • Copy: Select to copy the scheduled day to any other day of the week. See Figure 51. Figure 51: Schedule Copy Figure 50: 4 Day versus 2 Day Part Johnson Controls Unitary Products...
-
Page 35: App Settings
Temperature Threshold Select On or Off Select to change Temp Humidity Threshold Humidity Threshold Select On or Off Select to change % Delete Thermostat Software Version: XX zz.000 X Hx Thermostat A1040-001 Figure 52: App Settings Johnson Controls Unitary Products... -
Page 36: Away Mode
4. To disable, select the Away icon (Figure 55) on the app or thermo- stat, or any Setpoint, Schedule, or Up/Down icon. º º A1045-001 A1043-001 A1044-001 A1042-001 Figure 53: Setpoints Figure 54: Figure 56: Figure 55: Away Icon Home Icon Schedule Override Johnson Controls Unitary Products... - Page 37 Locations and Notifications must be enabled on the smart device for Geo Fencing to function. The Geo Fencing screen may vary between smart devices. Geo Fencing: Select On or Off Region slider Region diameter in miles Thermostat home A1046-001 Figure 57: Geo Fencing Johnson Controls Unitary Products...
-
Page 38: Notifications
Done or Cancel. The Reset icon can be selected as well. A push notification will be sent if the indoor tem- perature or humidity goes above or below the range determined by the user. A1049-001 Figure 60: Min & Max Setpoints Johnson Controls Unitary Products... -
Page 39: Amazon Alexa Setup
"Alexa, set {Room Name} to {number} degrees" "Alexa, set {Room Name} to {number}" "Alexa, set the {Room Name} temperature to {number} degrees" Set device temperature "Alexa, change the {Room Name} to {number} degrees" "Alexa, turn {Room Name} temperature to {number} degrees" Johnson Controls Unitary Products... - Page 40 Turn device "Alexa, turn on {room Name fan}" fan on "Alexa, turn {Room Name} to Cool" "Alexa, turn {Room Name} to Heat" Change Mode "Alexa, turn {Room Name} to Auto" "Alexa, turn {Room Name} Off" Johnson Controls Unitary Products...
-
Page 41: Apple Watch Setup
Hx™ Thermostat app. Swipe left or right to see all screens. • Modes: select to view Heat, Cool, Auto etc. • Setpoints: to increase and decrease the temperature select the desired setpoint, turn the Digital Crown on the Apple Watch (highlighted in the Figure 61). Johnson Controls Unitary Products... -
Page 42: Warranty
Limited Warranty Residential Thermostats WARRANTY TERMS: Johnson Controls Unitary Products (hereinafter “Company”) warrants this product to be free from defects in factory workmanship and material under normal use and service and will, at its option, repair or replace any parts, without charge, subject to the exclusions below, that prove to have such defects according to the terms outlined in this warranty. - Page 43 Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you. This warranty gives you spe- cific legal rights. You may also have other rights which vary from state to state. Johnson Controls Unitary Products...
-
Page 44: 5407935-Uum-B-0818
NOTES Subject to change without notice. Published in U.S.A. 5407935-UUM-B-0818 Copyright © 2018 by Johnson Controls, Inc. All rights reserved. Supersedes: 5407935-UUM-A-0318 York International Corp. 5005 York Drive Norman, OK 73069...
