- Page 1 V-CARE...

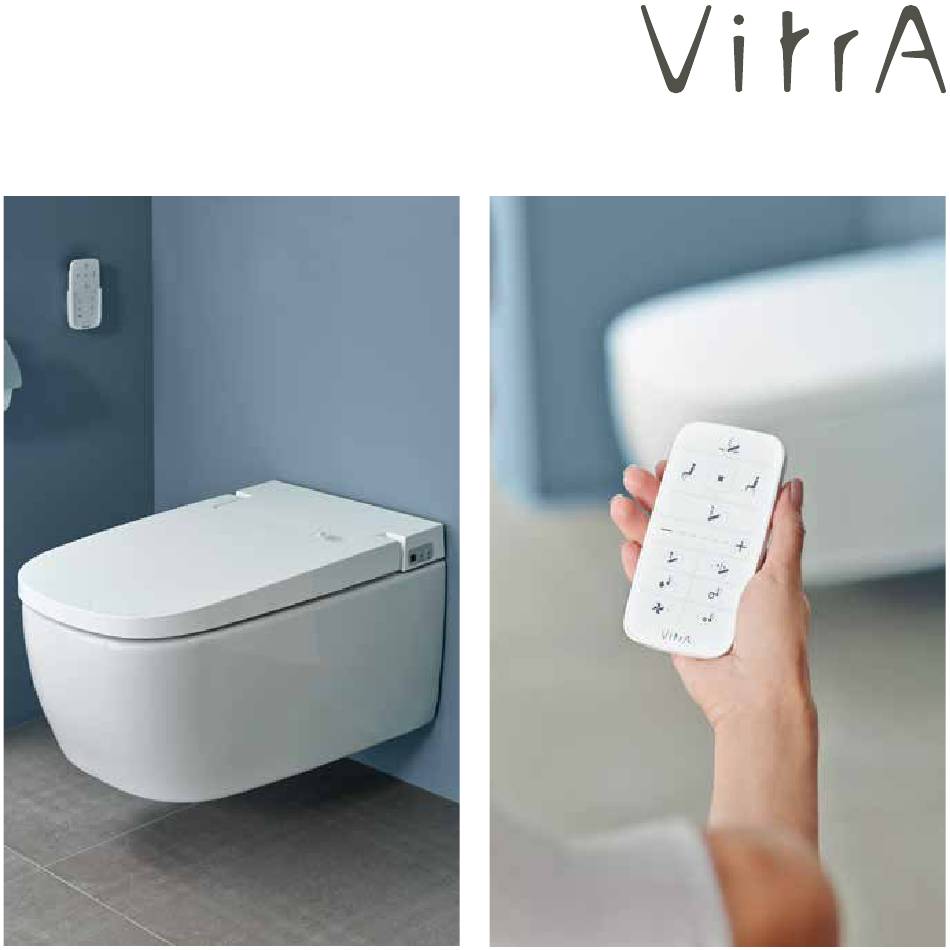

- Page 2 VitrA understands that style is important in any bathroom and there’s no compromise with the V-care WC. The fixtures and electronic parts of the WC are concealed so that it looks just like a regular toilet. The streamlined and modern look was conceived of by the Design Studio NOA to ensure it integrates seamlessly into your bathroom.

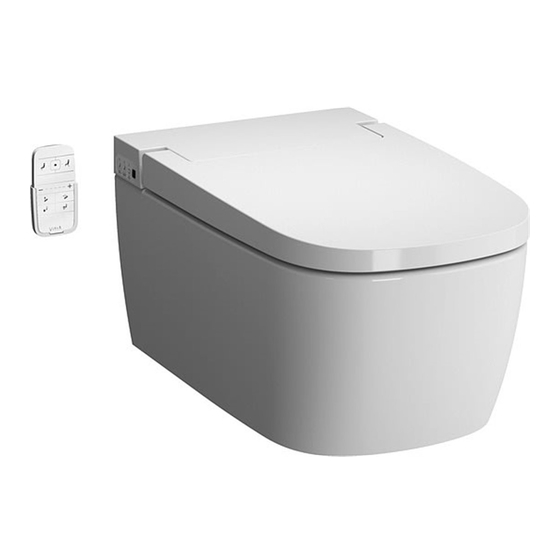

- Page 3 V-CARE: THE SMARTER WC COMBINING THE FUNCTIONALITY OF A TOILET AND THE CLEANING PROPERTIES OF A BIDET • Stylish design to complement all types of bathrooms and styles • Available in two models; Essential and Comfort • The remote control and automatic sensors help to deliver a totally hands-free experience •...
- Page 4 SIMPLE TO OPERATE The specially designed nozzle can be positioned to suit each user V-care can be used via the remote control and has a very simple, choosing from the 5 options available. There are front and rear intuitive user interface. The basic functions of the WC can also be washing options available, with the less powerful water supply for controlled using buttons located on the side of the toilet seat.
- Page 5 MODEL CHOICE ESSENTIAL For every adjustable function, there are 5 different settings. With an extensive range of V-care features, in the same stylish design as the Comfort option, you can ESSENTIAL COMFORT FEATURE FUNCTIONS enjoy a completely hands-free experience using the intuitive remote control.
- Page 6 *Press the function button and then use - / + to adjust the setting *Press the function button and then use - / + to adjust the setting 10 | V-CARE V-CARE | 11...
- Page 7 STANDARD RIM REMOVEABLE AND REPLACEABLE PARTS The Rim-ex water diverter can easily be removed for cleaning. The V-care nozzle is automatically In addition to offering a personalised washing experience, the V-care pan includes a rimless rinsed with fresh water before and after every use, the tip can also be easily removed for manual design.
- Page 8 V-care is a wall-hung WC allowing additional space to be created in the bathroom. Wall-hung WCs require a frame which is concealed behind a solid or stud wall. VitrA’s frame systems are crucial to any modern bathroom, supporting and holding wall-hung WCs firmly in place. Wall-hung frames allow your bathroom designer the freedom to create a stunning room without the need for expensive structural building work and VitrA’s range offer you complete flexibility.
- Page 9 TECHNICAL & INSTALLATION 16 | V-CARE V-CARE | 17...
- Page 10 HOW SAFE IS THE V-CARE IN REGARDS TO ELECTRICAL AND WATER USE? 5674B003-6103 Essential V-care is very safe to use, there is no danger of electrical parts coming into contact with water as it is 5674B003-6104 Comfort insulated to IPX4 standards. Electronic circuits are insulated to IP67 standards.
- Page 11 IS THE V-CARE WC DIFFICULT TO CLEAN? During a power cut you can still use the V-care WC like a conventional WC, activating the flush via the V-care is easier to clean than a conventional WC as it has a rimless pan (Rim-ex). V-care is also wall- flush plate and manually opening and closing the seat.
- Page 12 Max/min temperatures per function: DEFAULT POWER MIN VALUE MAX VALUE VALUE SAVER MODE SEAT TEMPERATURE WATER TEMPERATURE VitrA UK Ltd, Park 34, Collett, DRYER TEMPERATURE Didcot, Oxon, OX11 7WB +44 (0) 1235 750 990 info@vitra.co.uk vitra.co.uk 2018 V-CARE | 23...
- Page 13 vitra.co.uk...
Need help?
Do you have a question about the V-CARE and is the answer not in the manual?
Questions and answers
Lights are blinking on toilet and no water pressure on the sprayer. Toilet does not have a lot flow when dlushed
Blinking lights on a VitrA V-Care toilet may indicate specific errors:
- Flashing rear and front washing LEDs (Left side control unit) may signal a water supply error if the water tank is not filled properly within 1 minute 30 seconds.
- Flashing Power/Stop LED (Left side control unit) may indicate a water level sensor error.
- Flashing white Toilet seat or cover auto LED (Right side control unit) may indicate an open/close motor error related to the cover or seat damper.
Low water pressure on the sprayer may be caused by:
- Insufficient water supply pressure (required range: 0.7~7.5 kgf/cm² or 0.069MPa~0.735MPa).
- Water supply error, preventing the water tank from filling properly.
- Nozzle blockage or malfunction affecting water flow.
If any of these issues occur, contacting authorized service is recommended.
This answer is automatically generated
