FPM Agromehanika 627 035 Assembly / Operation/ Maintenance, Spare Parts List

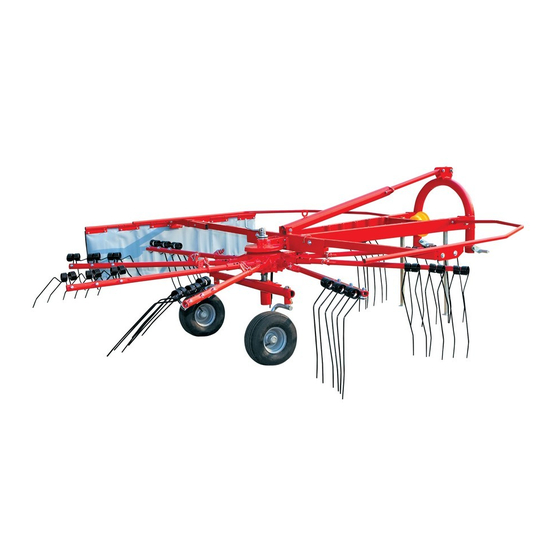

Rotary rake-hay harvester with adjustable pyramid
Hide thumbs
Table of Contents

Advertisement

Quick Links

ROTARY RAKE – HAY
HARVESTER WITH
ADJUSTABLE PYRAMID
ASSEMBLY / OPERATION / MAINTENANCE
_____________________________________________________________________________________
Email: razvoj @ fpm-agromehanika.rs
info @ fpm-agromehanika.rs
SPARE PARTS LIST
FPM AGROMEHANIKA d.o.o
Đorđa Simeonovića br.25
Boljevac-Srbija
www.fpm-agromehanika.rs
SERBI
FPM 627 035
FPM 627 183
o
N
45275
Web: www.fpm-agromehanika.
04.2016.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 627 035 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FPM Agromehanika 627 035

Summary of Contents for FPM Agromehanika 627 035

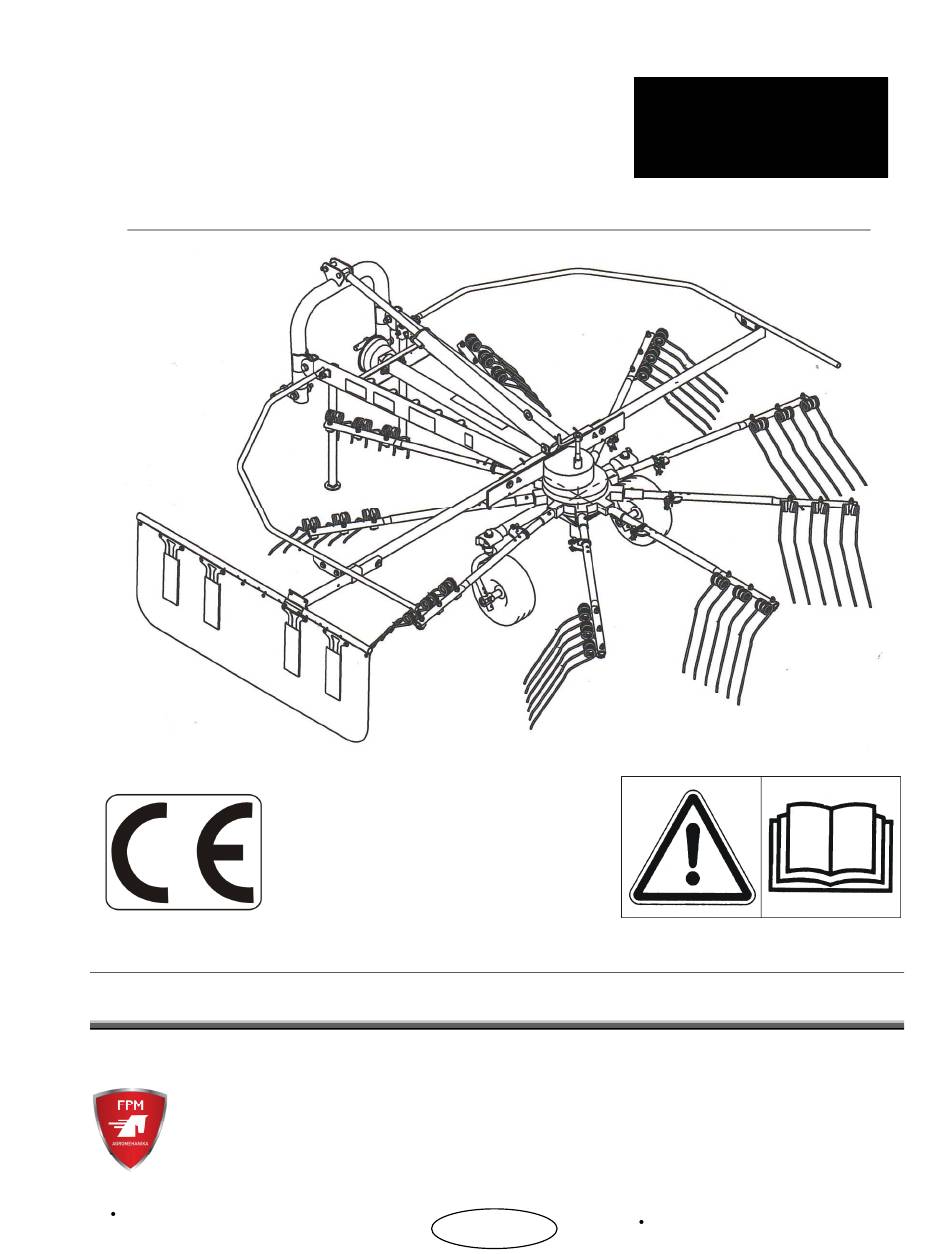

  • Page 1 ROTARY RAKE – HAY FPM 627 035 HARVESTER WITH FPM 627 183 ADJUSTABLE PYRAMID 45275 ASSEMBLY / OPERATION / MAINTENANCE SPARE PARTS LIST 04.2016. FPM AGROMEHANIKA d.o.o Đorđa Simeonovića br.25 Boljevac-Srbija www.fpm-agromehanika.rs _____________________________________________________________________________________ Email: razvoj @ fpm-agromehanika.rs Web: www.fpm-agromehanika. SERBI...
  • Page 2 IMPROVEMENT: FPM Agromehanika d.o.o. strives to continuously improve its products and therefore reserves the right of modification or improvement, without having to modify or improve previously manufactured or sold equipment.

  • Page 3: User Warning

    № 45275 C O N T E N T S TABLE OVERVIEW PAGE PARTS GROUP Safety warning Limited warranty 6 - 7 Safety Safety – Attaching the rake to the tractor 8 - 9 Safety – Using the PTO shaft Safety –...

  • Page 4: Please Read Carefully

    PLEASE READ CAREFULLY! You will find the warning labels “ATTENTION”, “CAUTION” and “DANGER” in this manual and on the machine. The warnings draw your attention to personal safety and the safety of others who work with you, since they need to read the warnings, too. PERSONAL SAFETY ATTENTION: The word “ATTENTION”...

  • Page 5: Limited Warranty

    LIMITED WARRANTY For each original unit delivered to the user by the FPM Agromehanika AD Boljevac distribution network, the manufacturer issues a warranty in accordance with the Standardization Act and Machinery Safety Regulation (Official Gazette of the Republic of Serbia No. 13/2010) guaranteeing that each rotary rake...
  • Page 6 S A F E T Y Most accidents occur during work, maintenance or transport due to the non-observance of the fundamental safety requirements. This is why you are the most important person for operating and maintaining your rake. Regardless of whether you are working alone, with your family members or other persons, always read and observe the basic method of operation.
  • Page 7 - For the sake of safe transport on public roads, check whether all the protective components and reflex reflectors are properly affixed and secured to the frame, and replace any damaged or broken parts using original parts manufactured by FPM AGROMEHANIKA d.o. BOLJEVAC.
  • Page 8 S A F E T Y ATTACHING THE RAKE TO THE TRACTOR - Before coupling and decoupling the rake to or from the tractor, lock the hydraulic controls in order to prevent unintended raising or lowering. - When coupling your rake, observe the category of the tractor and rake linkages, they must match.
  • Page 9 - If you have doubts about the PTO shaft operation, or if the shaft guard is missing, worn or broken, replace the PTO shaft with one labelled with a CE mark. - Before turning on the tractor output shaft, check whether the selected number and direction of rotation match the permissible number and direction of rotation of the rake.

  • Page 10: Warning Labels

    WARNING LABELS FPM Boljevac The following warning labels are affixed to your rotary rake for your safety and the safety of others working with you. Holding the manual in your hand, walk around the machine and check all the warning labels and instructions from the manual.
  • Page 11 WARNING LABELS FPM Boljevac The rake is identified by the nameplate (label no. 2) containing the following numbers: ― The field marked »Z« contains the occupational safety certificate number. ― The field marked »MASA/WEIGHT« contains the product weight. ― The field marked »GODINA/YEAR« contains the year of manufacture (last two digits). ―...

  • Page 12: Technical Specification

    FPM - 627 . 183 627 16 117 TECHNICAL SPECIFICATION FPM Boljevac ROTARY RAKE DESIGNATION FPM 627 035/ FPM 627 183 Three-point linkage Attachment method with flexible pyramid Working width + swath 3.2 m (2.5 m + 0.7 m)/ 3.0 m (2.3 m + 0.7 m) Transport width 1.3 m...
  • Page 13 ROTARY RAKE PACKAGE FPM Boljevac For easy transport, FPM 627 035/FPM 627 183 rotary rakes are packed in a wooden box. Loose items (tine brackets, guards, tires) are not attached, but packed separately and placed in wooden boxes.
  • Page 14 ASSEMBLY FPM Boljevac For easy transport, the rotary rake is supplied with the tines, tine brackets and safety guards unattached. To assemble the unattached parts, proceed as follows: Tine bracket assembly (Figure 1) Insert the tine bracket (S) into the oscillating part of the rotor (L) and secure it using two spring bolts (G) (Ø...

  • Page 15: General Information

    ASSEMBLY FPM Boljevac Swath board assembly (Figure 3) Place the swath board support (T) inside the U- profile (U) on the bracket (K) and secure it to the bracket using the screw (V) (M12x80). Subsequently, fit the board (Z) onto the support (T) in one of the three pre-set positions and attach it to the lower foot (W) using two screws (X) (M8x55) in the desired position.
  • Page 16 JOINT COUPLING – PTO SHAFT FPM Boljevac It is extremely important to properly adjust the 3.- The maximum permissible angle of deflection PTO shaft when attaching the rake to the of the PTO shaft may not exceed 30 degrees tractor. Never allow the universal joints to get (Figure 9).

  • Page 17: Operating Settings

    OPERATING SETTINGS FPM Boljevac During the harvesting process, the upper linkage point on the tedder frame must be in the free-floating position. Properly adjusted tines for rake operation touch the ground (soil) on the front side of the rake when looking in the driving direction. In this position, the rotor must be perfectly horizontal in relation to the ground.
  • Page 18 ROTARY RAKE OPERATION FPM Boljevac Never operate the rotary rake with a PTO shaft If the harvesting is unsatisfactory, this can rpm higher than manifest in two ways as follows: 540 min 1.- Poor harvesting with hay remaining in the middle of the swath (Figure 13). Depending on the thickness of the hay This is eliminated by shortening the upper harvested, you can make single or double...
  • Page 19 SWATH BOARD FPM Boljevac Side adjustment: 3 board support positions (T): depending on the hay thickness, extend or retract the board support. Height adjustment: 3 board positions (Z): Upper position: for harvesting extremely thick hay or on uneven ground. Lower position: for harvesting thin hay, in order to prevent the hay passing under the swath board.
  • Page 20 ROTARY RAKE PARKING FPM Boljevac To park the rotary rake after operation, use the scotch block (X) to prevent the machine resting on the operating components (tines). The block is secured with a spring lock (P). To protect the PTO shaft grooves from impurities and debris, put the PTO shaft in its bearing (Q) on the rake frame, preventing the PTO shaft from resting against the ground.

  • Page 21: Important Notes

    IMPORTANT NOTES Boljevac Before adjusting or maintaining the Prevent the PTO shaft guard from machine, turn off the tractor engine and rotating using the provided chains. remove the ignition key. Do not allow the friction clutch to slip for Check the tension of all the screws and more than a few seconds.
  • Page 22 Page 22...

  • Page 23: Spare Parts List

    Parts and components package For vineyard tractors For tractors of category I Replaceable with one or multiple parts For tractors of category 2 Washer thickness For tractors of category 3 Washer thickness for reducing clearance FPM AGROMEHANIKA d.o. BOLJEVAC Page 23...
  • Page 24 SUPPORT FRAME – assembly IDENTIFICATION NUMBER FOR ORDERING 627 16 055 627 16 079 627 16 835 10X70 000 09 381 627 10 472 000 39 392 000 38 497 M14x45 627 16 063 000 02 515 000 41 828 000 10 062 M20x85 805 41 521...
  • Page 25 ROTARY RAKE DRIVE – assembly IDENTIFICATION NUMBER FOR ORDERING 627 15 363 627 15 835 627 15 867 627 15 561 627 14 839 M14x45 627 15 583 627 15 369 627 15 368 000 23 131 627 12 653 627 15 487 627 15 026 627 15 027...
  • Page 26 LEFT AND RIGHT BUMPER RODS – assembly IDENTIFICATION NUMBER FOR ORDERING 627 16 092 627 16 093 627 16 089 627 16 088 000 05 606 M12x45 000 00 066 000 04 671 000 02 191 M10x25 000 23 240 000 02 208 000 12 879 M10x35...
  • Page 27 SWATH BOARD – assembly IDENTIFICATION NUMBER FOR ORDERING 627 16 114 627 15 397 627 15 398 627 15 396 000 05 333 M8x25 000 03 865 000 02 444 627 15 366 000 04 655 M8x55...
  • Page 28 DRIVING AXLE – assembly IDENTIFICATION NUMBER FOR ORDERING 000 41 333 COMMER head 000 02 444 627 16 076 627 16 094 000 10 402 627 16 096 000 00 066 000 38 589 000 05 462 M12x50 000 04 671 627 12 681...
  • Page 29 M12x65 627 16 147 000 04 671 000 00 072 627 15 255 000 18 527 627 16 104 For 627 035 627 16 748 For 627 183 627 17 015 For 627 035 627 17 015 For 627 183...
  • Page 30 This machinery meets the safety requirements of the European Machinery Directive. THE OPERATOR MUST OBSERVE ALL OCCUPATIONAL SAFETY AND HEALTH REGULATIONS, AS WELL AS ROAD SAFETY REGULATIONS. FOR PERSONAL SAFETY, USE ONLY ORIGINAL PARTS MANUFACTURED BY FPM AGROMEHANIKA DOO BOLJEVAC. THE MANUFACTURER MAY NOT BE HELD LIABLE FOR THE CONSEQUENCES OF IMPROPER USE OR FAILURE TO COMPLY WITH THE RECOMMENDATIONS GIVEN...
  • Page 31 PERFORMANCE WITH YOUR ROTARY RAKE, USE ONLY ORIGINAL PARTS MANUFACTURED BY FPM AGROMEHANIKA do BOLJEVAC FPM AGROMEHANIKA d.o. 19370 Boljevac, Đorđa Simeonovića br.25 PHONE NUMBERS: Sales Department: 030/463 455; 030/463 356 Import/Export Department: +381 (0) 30 463 531 FAX: +381 (0) 30 463 405...
