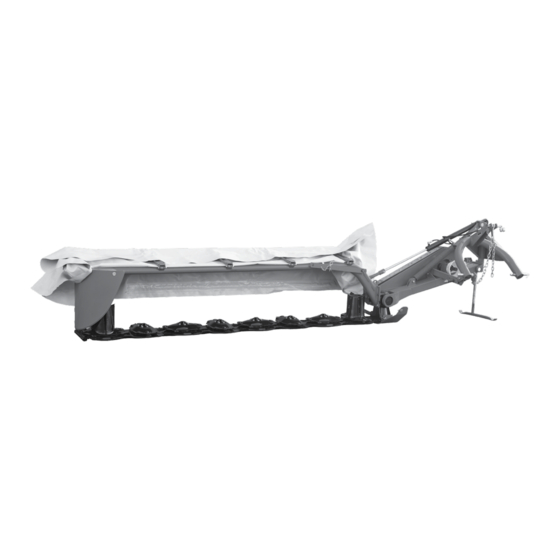

DISC MOWERS C
FPM 627 926C
FPM 627 927C
FPM 627 928C
FPM 627 715C
FPM 627 113C
USER GUIDE AND LIST OF SPARE PARTS
PLEASE READ CAREFULLY BEFORE USE
FPM AGROMEHANIKA | 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 627 926C and is the answer not in the manual?

Questions and answers

Related Manuals for FPM Agromehanika 627 926C

Summary of Contents for FPM Agromehanika 627 926C

  • Page 1 DISC MOWERS C FPM 627 926C FPM 627 927C FPM 627 928C FPM 627 715C FPM 627 113C USER GUIDE AND LIST OF SPARE PARTS PLEASE READ CAREFULLY BEFORE USE FPM AGROMEHANIKA | 1...

  • Page 2: Table Of Contents

    C O N T E N T S FOREWORD 1. INTRODUCTION General information about the product Technical characteristics Identification plaque Limited warranty 2. SAFETY WARNINGS Meaning of the warning signals Recommendations for safe use General recommendations Fitting the machine onto a tractor Using the Cardan joint Hydraulic installations Maintenance...
  • Page 3 Torque multiplier Cutter bar Oiling the grease fittings and sliding surfaces Oiling the Cardan joint Schedule for regular servicing and maintenance 7. FITTING THE MOWER Parking Storing 8. USEFUL TIPS 9. LIST OF SPARE PARTS Compliance statement FPM AGROMEHANIKA | 3...

  • Page 4: Foreword

    Failure to observe the recommendations and instruction can lead to damage to the product and to serious injury to the user and nearby persons. NOTE: FPM AGROMEHANIKA IS CONSTANTLY STRIVING TO IMPROVE AND ENHANCE ITS PRODUCTS AND THEREFORE RESERVES THE RIGHT TO CARRY OUT MODIFICATIONS AND IMPROVEMENTS WHEN NEEDED, WITH NO OBLIGATION TO MODIFY PREVIOUSLY MANUFACTURED OR SOLD EQUIPMENT.

  • Page 5: Identification Plaque

    I General conditions The company FPM AGROMEHANIKA A.D. (hereafter FPM) guarantees that the product will function properly for 2 years from the date of the product’s delivery to the buyer. This warranty covers all parts manufactured by FPM, whose lifetime is longer than two years and which have been determined to be faulty due to material defects, bad manufacturing, and/or incorrect assembly, by the assessment of FPM or its authorised service centre.

  • Page 6: Safety Warnings

    IV Responsibilities and liabilities of the user The user is obliged to respect all instructions stated in the user guide, and relating to proper use, setting, maintenance, servicing, and stor- ing of the product, as well as to carry out all actions intended for regular maintenance and servicing of the product at an authorised service centre.

  • Page 7: Fitting The Machine Onto A Tractor

    5. Regularly check protective parts intended for the safe use of the machine. Replace them immediately if needed. 6. Spare parts must comply with manufacturer recommendations and standards. Only use original FPM Agromehanika spare parts. 7. Repairs of parts that are under pressure or weighed down (hydraulic cylinders, tubes, springs, etc.) may only be carried out by trained staff with the appropriate equipment for such works.

  • Page 8: Warning Labels

    6. Before each use of the mower, check the condition of the cutting elements (blades, discs). In case they are damaged or overly-worn, replace them immediately. 7. When replacing worn-out or damaged blades, always replace them in pairs in order to avoid unbalancing the discs. 8.
  • Page 9 3. Lower the machine to the ground. The machine must always be parked with the cutter bar in the horizontal position (B). Be sure to use the appropriate original parts. Number of revolutions of the Cardan joint must not exceed 540 rpm. FPM AGROMEHANIKA | 9...

  • Page 10: Assembly

    3. ASSEMBLY Safety warnings of a potential danger are indicated in two ways: In order to facilitate the transport of the mower, certain parts and assemblies are disassembled. Depending on the target market, the extent of disassembling may vary. In order to assemble the mower properly and prepare it for use, do the following: 3.1 Assembling the protective frame carrier and hydraulic cylinder Fasten the carrier frame (D) (figure 11) to the four-screw multiplier For mowers FPM 627.928/715113, fasten the end of the protective...

  • Page 11: Assembling The Internal Protective Sheet

    (figure 16). Pay attention that the nut fits in such a way that the swath-former remains mobile. Fasten the wooden le- ver (R) to the sheet metal (U) using the connective panel (Y), screw (W)(M8x50), and two self-locking nuts (M8)(figure 16). FPM AGROMEHANIKA | 11...

  • Page 12: Assembling The Protective Frame

    3.4 Assembling the protective frame - Fasten the front half of the protective frame (C) with screws (F) (M10x25) to the appropriate holders (B), using plastic washers (Q) (ø10) and nuts (O) (M10) (figure 17). - Fasten the folded front half of the protective frame to openings (N) using bolts (M10x75) and secure it with self-locking nuts (M10).

  • Page 13: Fitting The Mower

    33. For tractors with a wheel gap of 1.65 m place the tractor levers as shown in figure 34. NOTE: ADJUST THE MOWER SO THAT THE GAP A IS AROUND 5 CM. CHECK THAT THE TENSION CHAIN (C) ALLOWS THE CUTTER BAR TO TAKE THE APPROPRIATE POSITION FOR OPERATION. FPM AGROMEHANIKA | 13...

  • Page 14: Cardan Joint

    Fitting is achieved in the following way: 1 – Move the tractor backwards, using hydraulics bring down the lower tractor levers to the height of the mower linkage point axis and carry out the fitting and locking of levers as shown under A in figure 35.

  • Page 15: Transport

    (10° at most)° (figure 31). DANGER! IN ORDER TO ENSURE SAFE FUNCTIONING OF THE CARDAN JOINT, PLACE ALL SAFETY PROTECTIONS AT THE APPROPRIATE PLACES AND SECURE THEM APPROPRIATELY. IF THE PROTECTIONS ARE DAMAGED OR WORN- OUT, REPLACE THEM IMMEDIATELY. FPM AGROMEHANIKA | 15...

  • Page 16: Using The Mower

    5. USING THE MOWER 4. Fold the front half of the protective canvas (A) backwards (see the arrow) (figure 38), and tie it with the appropriate belts. 5.1. Before first use Before starting the mower for the first time, perform the following checks: Description All right (√)

  • Page 17: Adjusting The Cutter Bar

    3. Using the hydraulic cylinder, lower the cutter bar into the working position. Managing the hydraulic cylinder is of great importance for the prop- er functioning of the mower. The managing is carried out during work, which will facilitate your work and increase working output. FPM AGROMEHANIKA | 17...

  • Page 18: Adjusting Cutting Height

    5.2.2 Adjusting the cutting height The cutting height is adjusted by rotating the entire cutter bar around the longitudinal axis. This is achieved by shortening or lengthening the coupling length (B) (figures 43 and 44). This adjustment should be carried out very carefully in order to achieve a proper cut while mowing (figure 44).

  • Page 19: Adjustments And Maintenance

    (see figure 50). The length of the oval opening (L) on the cutting blade must not exceed 18 mm. For tightening the screw (A) (figure 50) which holds the cutting blades, use a torque of 7.5 daNm. FPM AGROMEHANIKA | 19...

  • Page 20: V-Belts

    B) CUTTING DISCS): They should be checked regularly! (Especially - When the contact protective mass in the nut loses elasticity, check the screw tightening torque.) The tightening torque equals 7.5 which is characterised by frequent loosening. daNm. - When the wearing of the nut reaches a value of a = H/2. - Perform a check immediately after hitting a hidden obstacle.

  • Page 21: Torque Multiplier

    7. Clean all parts of the Cardan when it has not been in use for a long time. MODEL Litres FPM 627 926 1.98 FPM 627 927 2.70 FPM 627 928 3.06 FPM 627 715 3.50 FPM 627 113 3.78 FPM AGROMEHANIKA | 21...

  • Page 22: Schedule For Regular Servicing And

    6.4 Schedule for regular servicing and maintenance INTERVAL OF SERVICING Before each AFTER THE AFTER EVERY AFTER EVERY AFTER EVERY STORING ADJUSTMENTS FIRST 8 h 20 h 100 h 200 h Type of servicing adjustment Check for product integrity Check for damage to discs and cutting blades Check that all screws are CH+T...

  • Page 23: Parking

    - Lift the machine onto a wooden platform and place it under an awning or in an enclosed space in order to protect it from the elements. NOTE: THE LISTED TIMES FOR OILING ONLY REFER TO NORMAL WORKING CONDITIONS. IF YOU ARE WORKING IN MORE DIFFICULT CONDI- TIONS, MORE FREQUENT OILING IS NEEDED. FPM AGROMEHANIKA | 23...

  • Page 24: Useful Tips

    8. USEFUL TIPS No. PROBLEM POSSIBLE CAUSE SOLUTION Adjust the carrier frame so that the linkage The carrier frame is not properly adjusted points reach the height of 400 mm from the The cutter bar does not float (fit ground and are placed parallel the ground) The sleeves and forks on the cutter bar jam Oil the sleeves and forks...

  • Page 25: List Of Spare Parts

    APPROPRIATE DESIGNATIONS WHEN ORDERING PARTS. NOTE : USING ORIGINAL SPARE PARTS APPROVED BY FPM AGROMEHANIKA GUARANTEES PROPER FUNCTIONING OF THE MACHINE, AS WELL AS SATISFACTORY PERFORMANCE. USING SPARE PARTS AND EQUIPMENT NOT APPROVED BY FPM AGROMEHANIKA EXCLUDES ANY LIABILITY OF THE MANUFACTURER FOR ANY POSSIBLE DAMAGE.
  • Page 26 1. Group: Linkage and carrier frame...
  • Page 27 627 926c 018588 627.10.618 627 927c 025363 020.53.001 627 /928c/715c/113c 025363 020.53.001 Ds34 All models 005331 021.10.017 All models 005250 021.10.017 All models 005341 021.10.017 All models 018529 021.10.017 All models 005345 021.10.017 All models 005330 021.10.017 FPM AGROMEHANIKA | 27...
  • Page 28 2. Group: Hydraulic lifting system...
  • Page 29 007987 020.00.001 All models 007988 020.06.011 All models 007666 627.13.217 All models 005344 021.10.017 All models 015952 627.13.215 All models 023897 611.20.010 All models 005389 023.82.001 Ø 14xØ 20 627 926c/927c 005250 021.10.017 005345 021.10.017 928c/715c/113c FPM AGROMEHANIKA | 29...
  • Page 30 3. Group: Belt carryer...
  • Page 31 627 926c/927c 005799 627.10.534 627 928c/715c/113c 025326 627.14.432 627 926c/927c 004570 020.00.001 627 928c/715c/113c 004570 020.00.001 627 926c/927c 042984 627.15.783 627 928c/715c/113c 043168 627.15.768 All models 042988 627.15.784 All models 010080 020.00.001 All models 043001 627.15.778 FPM AGROMEHANIKA | 31...
  • Page 32 4. Group: Swath-former...
  • Page 33 627 928c/715c/113c 024441 020.00.003 All models 002444 020.06.011 All models 000061 020.06.010 627 928c/715c/113c 000062 020.06.010 All models 000071 021.22.005 All models 005606 020.00.001 All models 000072 021.22.005 627 926c/928c 26544 627.15.050 627 927c/715c/113c 49591 627.15.050 FPM AGROMEHANIKA | 33...
  • Page 34 5. Group: Protective awing Part Quantity num- Model of machine Part label Name Note per machine 627 926c 026650 627.14.465 627 927c 026652 627.14.980 627 928c 026651 627.14.689 627 715c 038437 627.14.795 627 113c 049582 627.16.290 627 926c 024426 627.14.460...
  • Page 35 All models 005344 021.10.017 All models 000368 627.10.472 All models 017201 575.74.001 627 926c/927c 022058 627.14.769 627 928c/715c/113c 038697 627.15.301 All models 000072 021.22.005 All models 000062 020.06.010 All models 049599 627.14.935 All models 051039 627.16.478 FPM AGROMEHANIKA | 35...
  • Page 36 6. Group: Cutter bar 1/5...
  • Page 37 Sliding shoe 380 2.520.1714.00 627.928c Sliding shoe 380 2.520.1714.00 628.113c / 627.926c / Sliding shoe 420 2.520.1716.00 928c 627.715c /927c Sliding shoe 420 2.520.1716.00 628.113c Gear Z45 M3 0.505.6002.00 627.715c / 928c Gear Z45 M3 0.505.6002.00 FPM AGROMEHANIKA | 37...
  • Page 38 6. Group: Cutter bar 2/5...
  • Page 39 0.505.1302.00 627.927c Mounting 0.505.1302.00 627.928c Mounting 0.505.1302.00 628.113c Spacer 0.404.7136.00 627.715c / 627.928c Spacer 0.404.7136.00 627.926c Spacer 0.404.7136.00 627.927c Spacer 0.404.7136.00 628.113c Cutterbed+cover 2.508.0301.00 627.715c Cutterbed+cover 2.507.0301.00 627.926c Cutterbed+cover 2.504.0301.00 627.927c Cutterbed+cover 2.505.0301.00 627.928c Cutterbed+cover 2.506.0301.00 FPM AGROMEHANIKA | 39...
  • Page 40 6. Group: Cutter bar 3/5...
  • Page 41 628.113c / 627.927c / 928c Alluminium washer 17x22x1.5 8.3.0.01353 627.715c / 627.926c Spring washer 17,16x22x2 8.3.3.00400 628.113c Locknut 20x1.5H17,3 8.2.6.00740 627.715c Locknut 20x1.5H17,3 8.2.6.00740 627.926c Locknut 20x1.5H17,3 8.2.6.00740 627.927c Locknut 20x1.5H17,3 8.2.6.00740 627.928c Locknut 20x1.5H17,3 8.2.6.00740 FPM AGROMEHANIKA | 41...
  • Page 42 6. Group: Cutter bar 4/5...
  • Page 43 Oil seal 40x56x8 8.7.3.00044 627.926c Oil seal 40x56x8 8.7.3.00044 627.927c Oil seal 40x56x8 8.7.3.00044 627.928c Oil seal 40x56x8 8.7.3.00044 All models Mounting 0.404.7118.00 628.113c / 627.715c / 927c Spacer 0.404.7137.00 627,926 Spacer 0.404.7136.00 627.928c Spacer 0.404.7137.00 FPM AGROMEHANIKA | 43...
  • Page 44 6. Group: Cutter bar 5/5...
  • Page 45 0.404.7152.00 628.113c Washer DCRT320 1.404.7109.00 627.715c Washer DCRT320 1.404.7109.00 627.926c Washer DCRT320 1.404.7109.00 627.927c Washer DCRT320 1.404.7109.00 627.928c Washer DCRT320 1.404.7109.00 627.927c Bolit M10x22 12.9 DCRT320 8.1.2.01531 627.927c Bolit M10x35 12.9 DCRT320 8.1.2.01532 627.927c Spacer 0.404.7113.00 FPM AGROMEHANIKA | 45...
  • Page 46 COMPLIANCE STATEMENT (EC) FPM Agromehanika D.O.O., Đorđa Simeonovića 25, 19370, Boljevac, Srbija declare, as the manufacturers, that the product Type: Disc Mowers Model: FPM 627 726 – 4 discs FPM 627 716 – 4 discs FPM 627 678 – 4 discs FPM 627 926 –...
  • Page 47 This machine complies with the relevant safety requirements of the EC directive for machines. FPM AGROMEHANIKA | 47...
  • Page 48 FPM AGROMEHANIKA Đorđa Simeonovića 25, 19370 Boljevac-Srbija www.fpm-agromehanika.rs TEL:+381 (0) 30 463 531 TEL:+381 (0) 30 463 405...
