Petzl CROLL S Quick Start Manual

Petzl CROLL S Quick Start Manual

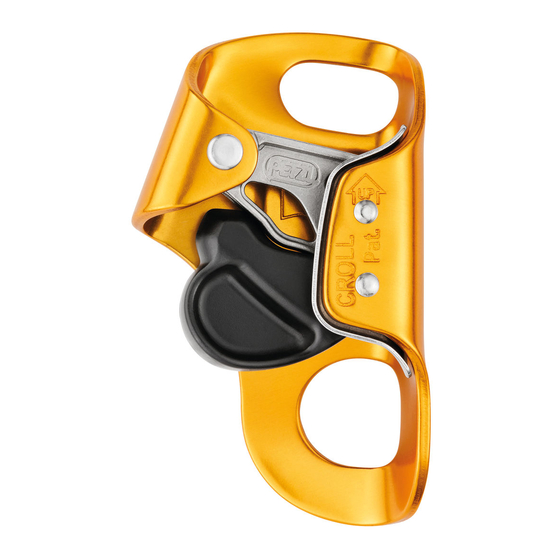

Ventral rope clamp
Hide thumbs Also See for CROLL S:

Advertisement

Quick Links

3 year guarantee
individually tested
CROLL S / CROLL L
Ventral rope clamp
Bloqueur ventral
8
11 mm
10
11 mm
WARNING
Activities involving the use of this equipment are inherently dangerous.
You are responsible for your own actions and decisions.
Before using this equipment, you must:
- Read and understand all Instructions for Use.
- Get specific training in its proper use.
- Become acquainted with its capabilities and limitations.
- Understand and accept the risks involved.
FAILURE TO HEED ANY OF THESE WARNINGS MAY RESULT
IN SEVERE INJURY OR DEATH.
Warning symbols
(1)
Panneaux d'alertes
PETZL
F-38920 Crolles
PETZL.COM
Sustaining our Community
Au service de la Communauté
ISO 9001
© Petzl
FONDATION-PETZL.ORG
Made in France
Traceability and markings / Traçabilité et marquage
k.
Body controlling the
a.
manufacture of this PPE
Notified body that carried
b.
out the CE type examination
APAVE SUDEUROPE SAS
8 rue Jean-Jacques Vernazza
Z.A.C. Saumaty-Séon - CS 60193
13322 Marseille CEDEX 16
N°0082
c.
Traceability: datamatrix
d.
Rope diameter
TECHNICAL NOTICE CROLL
8
13 mm
EN 1891
10
13 mm
EN 892
(2)
(3)
(4)
d. j.
e.
a. b.
e.
Individual number
YY M 0000000 000
Year of
f.
manufacture
Month of
g.
manufacture
h.
Lot number
i.
Individual identifier
j.
Standards
k.
Carefully read the instructions for use
®
NFPA CERTIFICATION
FOR CROLL S AND CROLL L
MEETS ASCENDER REQUIREMENTS OF NFPA
1983, STANDARD ON LIFE SAFETY ROPE AND
EQUIPMENT FOR EMERGENCY SERVICES,
2017 EDITION.
EMERGENCY SERVICES
ASCENDING DEVICE
IN ACCORDANCE
WITH NFPA 1983-2017
T (TECHNICAL USE)
Use only TECHNICAL or GENERAL USE LIFE
SAFETY ROPES, (core + sheath) diameter between
10 mm and 11 mm.
This CROLL S has passed the manner of function test
using the following rope:
[STERLING HTP static P105, 3/8", 10mm]
and [PETZL AXIS, 11mm]
Use only TECHNICAL or GENERAL USE LIFE
SAFETY ROPES, (core + sheath) diameter between
10 mm and 13 mm.
This CROLL L has passed the manner of function test
using the following rope:
[STERLING HTP static P105, 3/8", 10mm] and
[TEUFELBERGER FIBER ROPE KMIII 1/2", 13mm]
After removing the notice from the equipment, make a copy of it and
keep the original as part of a permanent record that includes the
usage and inspection history for the equipment. Keep the copy of
the notice with the equipment and refer to it before and after each
use. Additional information regarding auxiliary equipment can be
found in NFPA 1500, Standard on Fire Department Occupational
Safety and Health Program, and NFPA 1983, Standard on Fire
Service Life Safety Rope and System Components.
(text part)
1 .
Champ d'application
(partie texte)
2 .
Nomenclature
1
2
2
5
3
3
4
3 .
Contrôle, points à vérifier
PPE checking
Vérification EPI
PETZL.COM
(text part)
4 .
Compatibilité
(partie texte)
1
4
BOOO3300C (190118)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CROLL S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Petzl CROLL S

  • Page 1 EN 1891 11 mm 13 mm 10 mm and 11 mm. EN 892 This CROLL S has passed the manner of function test using the following rope: WARNING [STERLING HTP static P105, 3/8”, 10mm] and [PETZL AXIS, 11mm] Activities involving the use of this equipment are inherently dangerous.
  • Page 2 Function principle and test Installation on the harness Principe et test de fonctionnement Installation sur le harnais Installing and removing the rope Mise en place et retrait de la corde TECHNICAL NOTICE CROLL BOOO3300C (190118) ®...
  • Page 3 Stockage - transport Entretien + 30°C / + 86°F + 10°C / + 50°F Accessories Accessoires H. Modifications - Repairs I. FAQ - Contact Modifications - Réparations Questions - Contact SECUR TORSE petzl.com Petzl TECHNICAL NOTICE CROLL BOOO3300C (190118) ®...
  • Page 4 - The CROLL is not suitable for use in a fall arrest system. - To meet the requirements of the EN 12841: 2006 type B standard, use 891 type A low stretch kernmantel ropes: 10-11 mm diameter with CROLL S and 10-13 mm with CROLL L.
