Camera Link Module Accessory
The metal case will also require modification to allow the wire to pass out. A small hole can be drilled in
the metal case to match the approximate location shown in the image of the camera assembly.

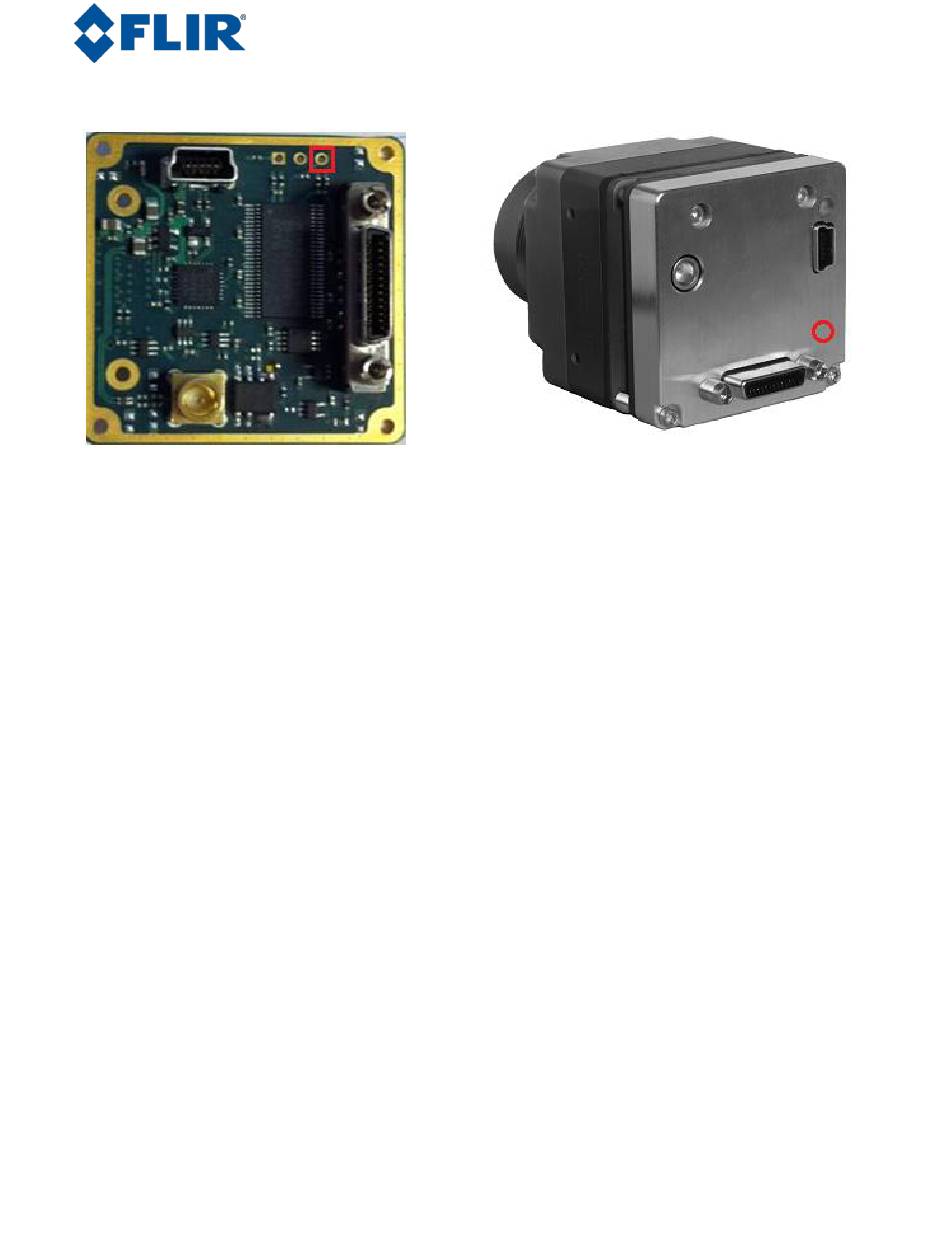

Figure 19: Ext Sync Header Connection
Figure 20: External Sync Location
