FLIR ACCKBD320 Instruction Manual

Network ptz keyboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

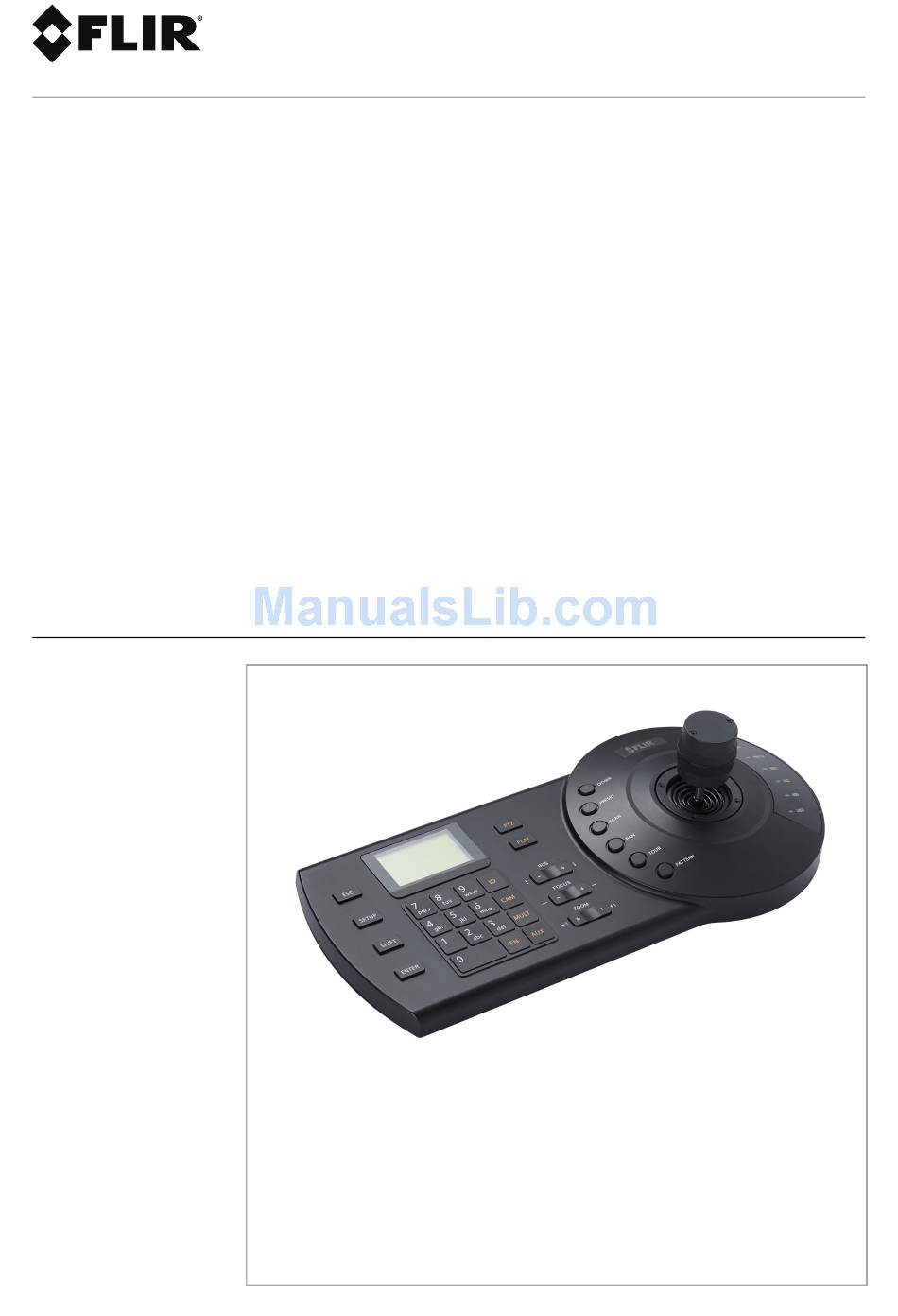

Instruction
Manual
ACCKBD320
Network PTZ
Keyboard

Advertisement

Table of Contents
loading

Related Manuals for FLIR ACCKBD320

Summary of Contents for FLIR ACCKBD320

  • Page 1 Instruction Manual ACCKBD320 Network PTZ Keyboard...
  • Page 3 Instruction Manual ACCKBD320 Network PTZ Keyboard #; r. 1.0/21073/21073; en-US...
  • Page 4 Thank you for purchasing this product. FLIR is committed to providing our customers with a high quality, reliable security solution. This manual refers to the following models: ACCKBD320 For the latest online manual, downloads and product updates, and to learn about our complete line of accessory products, please visit our website at: www.flirsecurity.com/pro...

  • Page 5: Table Of Contents

    Adding PTZ Cameras using RS485....13 5.2.3 Adding a DVR or NVR Using RS232....14 5.2.4 Finding RS232 Information on FLIR DVRs or NVRs ............16 Controlling Devices Using the Keyboard ......17 Selecting Devices ............. 17 Controlling DVRs or NVRs .......... 17 6.2.1...
  • Page 6 Config (Resetting to Factory Defaults) ......29 Info................ 30 Model ..............30 Menu Tree Overview ..........31 Upgrading Keyboard Firmware ........... 32 ACCKBD320 System Specifications........34 Dimensions ............. 35 Notices ................36 10.1 FCC Class A Notice ..........36 #; r. 1.0/21073/21073; en-US...

  • Page 7: Important Safeguards

    Important Safeguards In addition to the careful attention devoted to quality standards in the manu- facturing process of your product, safety is a major factor in the design of every instrument. However, safety is your responsibility too. This sheet lists important information that will help to ensure your enjoyment and proper use of the product and accessory equipment.
  • Page 8 Important Safeguards 4. Polarization - Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
  • Page 9 Important Safeguards 9. Uninterruptible Power Supplies (UPS) - Because this product is de- signed for continuous, 24/7 operation, it is recommended that you connect the product to an uninterruptible power supply. An uninterruptible power supply has an internal battery that will keep the product running in the event of a power outage.

  • Page 10: Service

    Important Safeguards 16. Mounting - The cameras provided with this system should be mounted only as instructed in this guide or the instructions that came with your cam- eras, using the provided mounting brackets. 17. Camera Installation - Cameras are not intended for submersion in water. Not all cameras can be installed outdoors.
  • Page 11 Important Safeguards 2. Product and Cart Combination - When product is installed on a cart, product and cart combination should be moved with care. Quick stops, ex- cessive force, and uneven surfaces may cause the product and cart com- bination to overturn. 3.

  • Page 12: Acckbd320 Features

    ACCKBD320 Features • Provides full control for FLIR IP & MPX PTZ cameras. • Manage FLIR NVRs and MPX DVRs. • Access multiple devices using the same keyboard. • Connect to devices over LAN with RJ45. • RS485 and RS232 supported.

  • Page 13: Acckbd320 Getting Started

    ACCKBD320 Getting Started The system comes with the following components: 12V Power adapter Network Video Recorder RS485 Block Ethernet cable #; r. 1.0/21073/21073; en-US...

  • Page 14: Keyboard Overview

    Keyboard Overview 4.1 Default User Name and Password The keyboard has the following user account by default: • admin: can access all functions. Default password is 000000. 4.2 Keyboard Ports 1. USB: Service only; not supported. 2. RS422: Not supported. 3.
  • Page 15 Keyboard Overview # Description Icon Button Name Function 1 General func- Cancels current operation tion panel In playback mode, press to return to live view Not supported SETUP Switch mode SHIFT Change input method Switch between input methods ENTER Confirm button Confirm current operation 0～9 Character and...
  • Page 16 Keyboard Overview # Description Icon Button Name Function 3 PTZ control Iris IRIS Control iris panel FOCUS Focus Control focus ZOOM Zoom Control zoom OTHER OSD menu Go to camera OSD menu Preset PRESET Go to preset setup menu SCAN Scan Go to scan setup menu Go to pan setup menu...

  • Page 17: Basic Setup

    Basic Setup 5.1 Start Up 1. Connect the included power adapter to the keyboard and to a power outlet or surge protector. 2. When the keyboard starts up it will show the current date and time on the display. Press ENTER to enter the sign in screen. 3.
  • Page 18 • IPAddr: Enter the IP address of the device you would like to add. • Client Port: Enter the Client Port of the device you would like to add. The default client port for FLIR products is 35000. • Password: Enter the password for the device’s admin account.

  • Page 19: Adding Ptz Cameras Using Rs485

    Basic Setup 10. Enter the ID you set for the device in step 6 and press ENTER. The keyboard will connect to the device. See 6 Controlling Devices Using the Keyboard, page 17 for instructions on how to control your device. 5.2.2 Adding PTZ Cameras using RS485 You can control PTZ cameras using the RS485 connection.

  • Page 20: Adding A Dvr Or Nvr Using Rs232

    Basic Setup 6. Configure the following: • ID: Enter an ID number to save this device under. Each device you con- nect to must have a unique ID number. • Name: Enter a name for the device of your choice. Link: Select COM485 to select a device over RS485.
  • Page 21 Basic Setup NOTE To find the RS232 address and connection information on FLIR DVRs/NVRs, see 5.2.4 Finding RS232 Information on FLIR DVRs or NVRs, page 16. To connect to a DVR/NVR using RS232: 1. Connect the RS232 cables from the keyboard to the DVR / NVR.

  • Page 22: Finding Rs232 Information On Flir Dvrs Or Nvrs

    Device No. by right-clicking and then clicking Main Menu> >General>General. See the example below. To find the Baud Rate, DataBit, Parity, and StopBit for RS232 on FLIR DVRs and NVRs, go to the RS232 menu. On DNR400 Series for example, to get to the RS232 menu click Main Menu>...

  • Page 23: Controlling Devices Using The Keyboard

    DVR/NVR or PTZ camera. 6.2 Controlling DVRs or NVRs Once you have added your FLIR MPX DVR or NVR to the keyboard, you can control connected PTZ cameras, control the live display or playback, and ac- cess the menus.

  • Page 24: Controlling Ptz Cameras

    Controlling Devices Using the Keyboard DVR/NVR keyboard controls: • Press the joystick UP or DOWN to change the split screen layout. • Press the joystick LEFT or RIGHT to select the camera / group of cameras. • Press the channel number and then CAM to select a camera. •...

  • Page 25: Basic Ptz Controls

    Controlling Devices Using the Keyboard 6.3.1 Basic PTZ Controls • Move the joystick LEFT, RIGHT, UP, and DOWN to control the camera. • Twist the joystick or use the ZOOM +/- buttons to zoom the camera. TWIST RIGHT to zoom in. TWIST LEFT to zoom out. •...

  • Page 26: Controlling Tours

    Controlling Devices Using the Keyboard 2. Under PreNo. enter the number of the preset you would like to go to. 3. Press the joystick DOWN to select Goto. Press ENTER to go to the preset. 6.3.4 Controlling Tours The tour function will set the camera to cycle through a series of presets. Once you have presets saved, you can use the keyboard to create tours.

  • Page 27: Controlling Scans

    Controlling Devices Using the Keyboard To start/stop a tour: 1. Press the TOUR button to open the tour menu. 2. Under TourNo. enter the number of the tour you want to run. 3. Press the joystick DOWN to select Start and press ENTER to start the tour.

  • Page 28: Running A Pan

    Controlling Devices Using the Keyboard 5. Select Set Left and press ENTER to save the current position as the left position. This exits the scan menu and returns to PTZ controls. 6. Use the joystick to move the camera into the desired right position. 7.

  • Page 29: Controlling Patterns

    Controlling Devices Using the Keyboard • Select Start and press ENTER to start panning. • Select Stop and press ENTER to stop panning. 6.3.7 Controlling Patterns The pattern function allows you to save a series of movements with the joy- stick to recall later.
  • Page 30 Controlling Devices Using the Keyboard To run a pattern: 1. Press the PATTERN button to open the pattern menu. 2. Under PatNo. enter the number of the pattern you want to run. 3. Select Start and press ENTER to run the pattern. 4.

  • Page 31: Using The Keyboard Menu

    Using the Keyboard Menu You can use the keyboard menu to configure the keyboard. 7.1 Navigating the Menu • Move the joystick UP and DOWN to select items. • Move the joystick LEFT and RIGHT to change parameters. • Press the keyboard buttons to enter characters. Press SHIFT to change in- put types.

  • Page 32: Address

    Using the Keyboard Menu To set a static IP address: 1. Move the joystick LEFT to set DHCP to Off. Press ENTER. 2. Configure the IP Address (IPAddr), Subnet Mask, Gateway, and Port as needed and press ENTER to save. 7.2.3 Address The Address menu allows you to configure the receiver address for the PTZ keyboard for RS232/RS485.

  • Page 33: Zone

    Using the Keyboard Menu • Backlight: Select ON to enable screen backlight or OFF to disable. Press ENTER to save changes. • AutoLogout: Select OFF to disable auto-logout, or select auto-logout in 10 minutes (10M), 30 minutes (30M), or 60 minutes (60M). Press ENTER to save changes.

  • Page 34: Add User

    Using the Keyboard Menu 3. Highlight OK and confirm the password. Press ENTER to save the new password. 7.4.2 Add User You can add additional user accounts to the keyboard. To add additional user accounts: 1. Highlight User and enter user name. 2.

  • Page 35: Modify Rights

    Using the Keyboard Menu 7.4.4 Modify Rights Modify Rights allows you to change rights assigned to user accounts you have created. To modify rights: 1. Highlight User and select the user account you want to modify. 2. Press down to highlight Right and press ENTER to configure user ac- count rights.

  • Page 36: Info

    Using the Keyboard Menu 2. Press ENTER again to confirm or ESC to cancel. To reset the keyboard to factory defaults: 1. Select Default and press ENTER. 2. Press ENTER again to confirm or ESC to cancel. 7.6 Info The Version menu shows the current version of the keyboard firmware. 7.7 Model The Model menu shows the model number of the keyboard.

  • Page 37: Menu Tree Overview

    Using the Keyboard Menu 7.8 Menu Tree Overview #; r. 1.0/21073/21073; en-US...

  • Page 38: Upgrading Keyboard Firmware

    Upgrading Keyboard Firmware When firmware upgrades are released, they will be available as free down- loads from www.flirsecurity.com/pro. NOTE A PC with Windows is required to install the firmware upgrade. Your keyboard must be connected to the same network as the PC before performing the steps below. To upgrade keyboard firmware: 1.
  • Page 39 Upgrading Keyboard Firmware 7. Configure the following: • IP Address: Enter the IP address of the keyboard. NOTE To find the IP address on the keyboard, go to Menu Settings>System>Network then select DHCP and press ENTER. • User Name: Enter admin. •...

  • Page 40: Acckbd320 System Specifications

    ACCKBD320 System Specifications Compatibility FLIR IP PTZ cameras and NVRs, MPX PTZ cameras and DVRs Keyboard Electromechanical Keypanel Joystick 3-axis, vector-solving, twisting, return to-center Connectors RJ45 Ethernet, RS232, RS485 Maximum # of 1024 Supported Devices Keyboard Direct Mode, Network Mode...

  • Page 41: Dimensions

    ACCKBD320 System Specifications 9.1 Dimensions As our products are subject to continuous improvement, FLIR Systems, Inc. and its subsidiaries reserve the right to modify product design, specifications, and prices without notice and without incurring any obligation. E&OE #; r. 1.0/21073/21073; en-US...

  • Page 42: Notices

    Notices This equipment has been certified and found to comply with the limits regu- lated by FCC, EMC, and LVD. Therefore, it is designated to provide reason- able protection against interference and will not cause interference with other appliance usage. However, it is imperative that the user follows the guidelines in this manual to avoid improper usage which may result in damage to the unit, electrical shock and fire hazard injury.
  • Page 44 All rights reserved worldwide. Names and marks appearing herein are either registered trademarks or trademarks of FLIR Systems and/or its subsidiaries. All other trademarks, trade names or company names referenced herein are used for identification only and are the property of their respective owners.
