ASSEMBLY INSTRUCTIONS (CONTINUED)

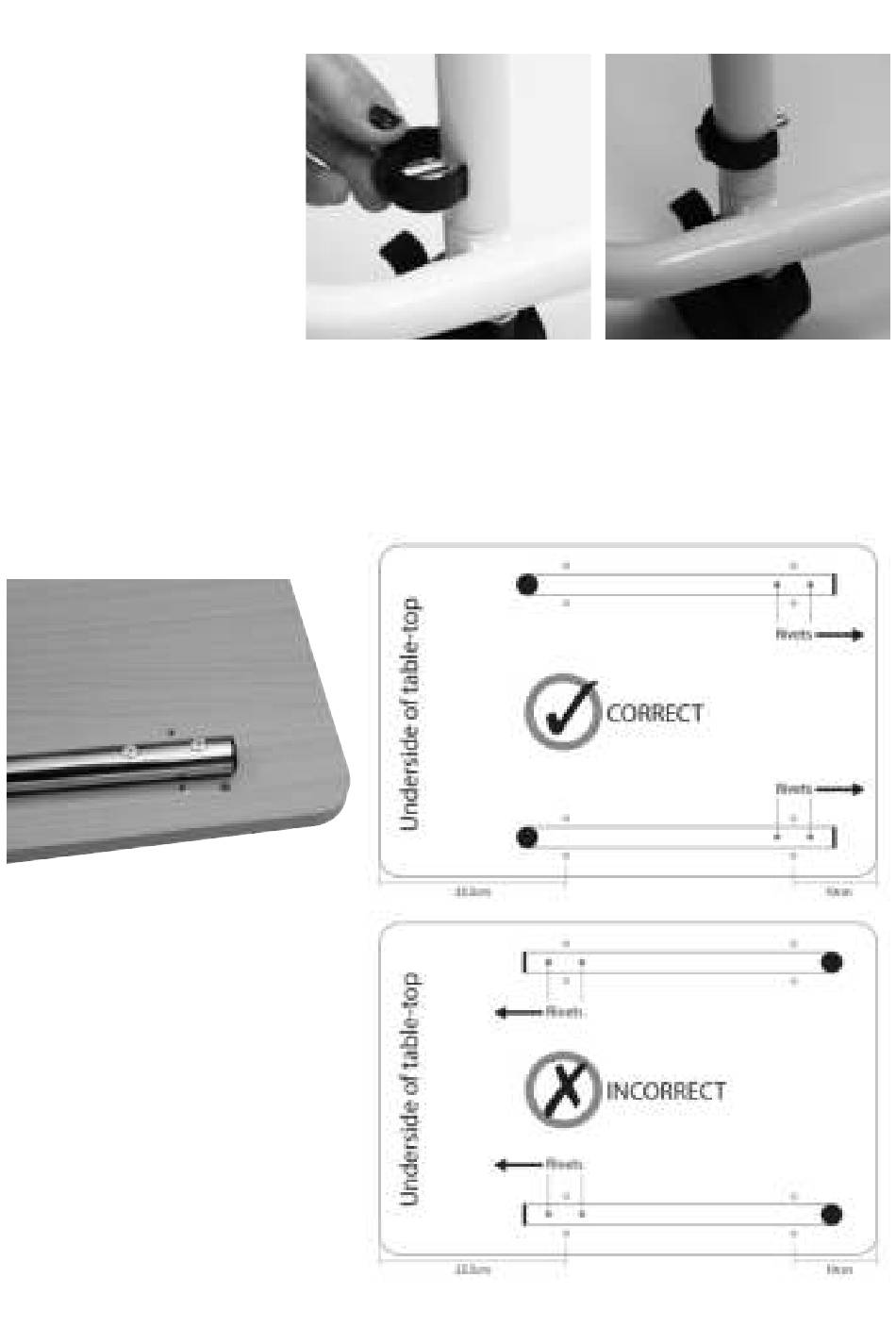

4. Align pre-punched holes
in bottom of H frame with
the pre-punched holes in
the spigots of the U frame.
Insert E-clips to lock in
position ensuring it clicks in
place and secure.
(see fig. 6 and 7)
5. Place the L shape tube onto the underside of the table top, observing the following
(VERY IMPORTANT)
• The riveted end of L shape tube MUST be placed onto the underside of table top (see fig. 8).
• The riveted end of L-Shape tube MUST be placed between pre-drilled holes nearest to the
edge of the table (approximately 10 cm from table edge). (see fig. 9 and 10)
(fig. 8)
(fig. 6) (fig. 7)
(fig. 9)
(fig. 10)
