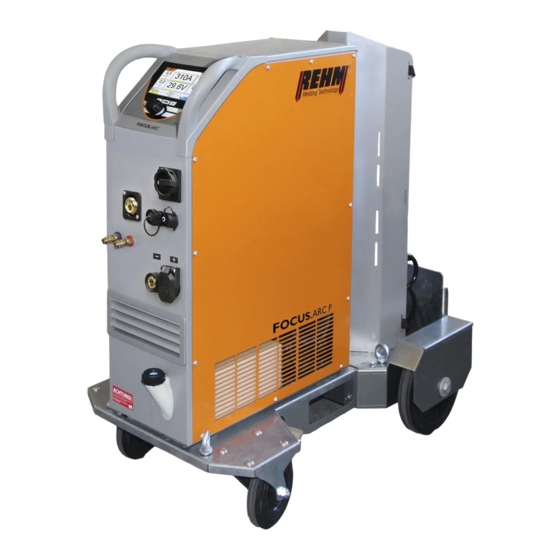

REHM FOCUS.ARC P Series Short Manual

Hide thumbs Also See for FOCUS.ARC P Series:

Advertisement

Table of Contents

D
GB
F
I
E
RUS NL
HU
Short Manual
FOCUS.ARC P and S
MEGA.ARC P and S
REHM SCHWEISSTECHNIK
This short manual does not substitute the original operator manual.
Please read this document carefully before your start operating the welding power source.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FOCUS.ARC P Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for REHM FOCUS.ARC P Series

Summary of Contents for REHM FOCUS.ARC P Series

  • Page 1 RUS NL Short Manual FOCUS.ARC P and S MEGA.ARC P and S REHM SCHWEISSTECHNIK This short manual does not substitute the original operator manual. Please read this document carefully before your start operating the welding power source.

  • Page 2: Safety Instructions

    • If external agents are used (e.g. solvents for cleaning), the operator of the system must guarantee the safety of the system during use. • Except when this is expressly stated in writing by REHM, REHM welding systems are only intended for sale to commercial / industrial users and only for their use.
  • Page 3 Persons, e.g. when using a pacemaker). The user is responsible for faults. Qualification of the operating personnel REHM welding systems may only be used by persons who are trained in the use, operating and maintenance of the welding systems.
  • Page 4 Personal protective equipment (PPE) Personal protective equipment (PPE) is mandatory when working with a welding system: • Welding protection filter, protection level 10-15 • Protective shield, screen or hood • Welding gloves • Leather apron The company is obliged to provide the operator with the necessary PPE. Intended Use The MIG / MAG welding systems are only to be used •...
  • Page 5 Device structure and connectors Compact machine power source with sepated (S) wire feeder unit Separate wire feeder unit Rear of Compact machine...
  • Page 6 Details 7 "screen (no touch) Turn / push control element (Encoder) Central adapter (ZA) for torch connection (Euro connection) 7-pin torch socket Burner cooling water connection flow Burner cooling water connection return Main switch Power socket welding circuit ground (-) Power socket welding circuit plus (+) for MMA welding Cooling air inlet grille Cooling water filler neck screw cap...
  • Page 7 User interface (UI) description Controls Functionality BF10 Display: Indication and Adjustment field BF1...BF10 Display: Total Overview BF11 Submenu button BF12 Home button BF13 Return button Corner Menu‘s: BF14 left top corner BF15 right top corner BF16 right bottom corner BF17 left bottom corner BF18 push-/turn button - Move Cursor - confirm selecti-...
  • Page 8 Symbol Description / Functionality Corner Menu - Welding Method MIG/MAG welding MIG/MAG welding by hand - Manual mode Stick welding Corner Menu - Operating Mode 2-Tact (2 step mode) 2-Tact with ramp down 4-Tact (4 step mode) 4-Tact with ramp down Dot welding Dot welding with ramp down 2-Tact Interval with/without ramp down...
  • Page 9 Symbol Description / Functionality Corner Menu - Welding characteristic Adjustment of material, wire diameter, gas, process and variant of welding characteristic Corner Menu - Welding Process Power.Arc Focus.Root Focus.Arcs Root Power.Puls Focus.Puls Indicate and adjust - welding current Indication of arc voltage Indicate and adjust in method MIG/MAG Hand Indicate and adjust - Thickness of meteri-...
  • Page 10 Symbol Description / Functionality BF19 MIG/MAG Parameter Parameter value view from left to right side in the figure Gas pre-flow time [0...20.0sec] Wire insert speed [0...99%] als Prozent des eingestellten V Ignition current [50...200%] Startstrom als Prozent von I Schweißen Ignition LBL correction [-9.9...+9.9V] Korrekturwert Lichtbogenlänge Time Ignition current...

  • Page 11: Create Folder

    Symbol Description / Functionality BF21 Job Memory The 12 Job short activate buttons are no longer available in that Version. Menu „Job Memory“ You get into Submenu „Job Menmory“ by allows to manage 500 pushing rotary encoder for 3 sec Jobs.
  • Page 12 Symbol Description / Functionality BF21 Job Memory Load Job By using „Load function“ screen jumps back to main screen. The active Job is shown in a green area in the center of the screen. You choose „Job forward“ or „Job backward“ by turning the encoder to the position in the picture above „Job 1“...

  • Page 13: Setup Parameter

    Symbol Description / Functionality BF22 Setup Setup Parameter Adjust- Description ment Double Pulse On / OFF Switch function on / off Shut down to Standby Function off time [min] Shut down after time (t) Select color schema Bright/Dark Time test gas flow time [sec] Time gas flows if button is pressed HOLD Function...
  • Page 14 Symbol Despriction / Functionality BF22 Setup Setup Parameter Adjust- Desription ment Factory Settings All values in the „Setup“ menu will be set to factory default values. Jobs are not included and stay unchanged!

  • Page 15: Language Settings

    Symbol Description / Functionality BF23 Assist (until now not available) BF24 Language settings Currently available languages: German Spain France Hungaria Italy Poland Serbia Romania Russia Turkey Chinese Indication field 1 - general use Indicates active welding characteristic Indication field 2 - general use Indicates active welding arc if color is black;...
  • Page 16 MIG/MAG Manually Mode Symbol Description / Functionality Get in by corner menu BF1 „Welding Method“, choose „MSG Manuell“. Get out by BF3 „Welding Characteristic“, choose a different characteristic. Screen in this mode. Changable values are voltage and wire feeding speed. It is poissible to save the manual settings in a JOB.

  • Page 17: Stick Welding Mma

    Stick Welding MMA Symbol Description / Functionality Get in by BF1 „Welding Method“ - choose „MMA“ Get out by über BF1 „Welding Method“ - choose any other method. Settings (Parameter) in the picture above from left to right: All values for increase of output current I an the welding current I limited by the power class of the inverter (250A, ..., 450A).
  • Page 18 Machine Types and Functionality Welding Method Mig/Mag √ √ √ √ Mig/Mag Manually √ √ √ √ √ √ √ √ Operation Mode 2-Tact √ √ √ √ 2-Tact with ramp down √ √ √ √ 4-Tact √ √ √ √...
  • Page 19 Setup Hold Mode √ √ √ √ Hold time √ √ √ √ Type of LBL-Correction √ √ √ √ Welding circuit adjustment: Automatic √ √ √ √ Welding circuit adjustment: : Inductivity √ √ √ √ Welding circuit adjustment: : Impedan- √...
  • Page 20 Updates Update per USB-Stick (since √ √ √ √ 15.1.2021) Update per Smartphone APP √ √ Update per USB Stick General All welding machines of this model series can be updated. The update files have the following names and could be used for all power classes: TYP_250-450A_BDE-V01_00_47_32.
  • Page 21 Update per Smartphone APP The Smartphone APP is available for android and ios. Home- In the service area on website of Rehm you will find the newest page files and characteristics but the APP is downloading the files automatic after connecting to the welding machine.
  • Page 22 Update per Smartphone APP Connection: Please connect the WLAN node Id of the welding machine to your smartphone and start the APP. Release code for the network connection is currently (12345678). The APP allows also the setting and indication of machine parameters and values.
  • Page 23 Update per Smartphone APP Important The update time for all components could take up to 30 minutes. Take care that the accu of your Smartphone ischarged. If Smartphone goes into Standby mode the communication stays active in the background. Please do not switch off the Smartpho- ne or swicht of the WLAN connection.

  • Page 24: Error Handling

    Error handling Safety notes If a fault occurs that represents a hazard for people, the system or the environment shut down the system immediately and secu- re it against being switched on again. • Faults can only be carried out by qualified personnel. It‘s mandatory to follow the safety instructions.
  • Page 25 EC-Declaration of Conformity for following listed products Focus.Arc P 450 WS 1307088 Focus.Arc P 350 W 1307066 Focus.Arc P 450 S 1307087 Focus.Arc P 350 1307065 Focus.Arc P 450 W 1307086 Focus.Arc P 300 WS 1307058 Focus.Arc P 450 1307085 Focus.Arc P 300 S 1307057 Focus.Arc P 400 WS...
  • Page 26 Arc welding equipment – Part 5: Wire feeders EN 60974-10: 2016-10 Arc welding equipment – Part 10: Electromagnetic compatibility (EMC) requirements This declaration is given for the manufacturer: REHM GmbH u. Co. KG Schweißtechnik Ottostr. 2 73066 Uhingen Uhingen, 2020/12/04 submitted by...
  • Page 28 REHM – The benchmark for modern welding and cutting REHM-product range - MIG/MAG inverter up to 450A Development, construction and production - all under one - TIG inverter up to 450A roof - in our factory in Uhingen. Thanks to this central...
