6. Technical Specifications

6. Technical Specifications

6.1. Introduction

The Pulse Generator and Monitoring Module is required to be high integrity but it is not in
itself intended to be a safety system.
The design concept maintains the advantages of TMR Systems while retaining a simple
implementation of a Damper Rod Control System by the use of redundant paths.
The PG/M generates a series of waveforms which rotate a stepper motor in either a
clockwise or anti-clockwise direction. The phasing of the outputs determines the direction
of rotation while the frequency determines the speed.

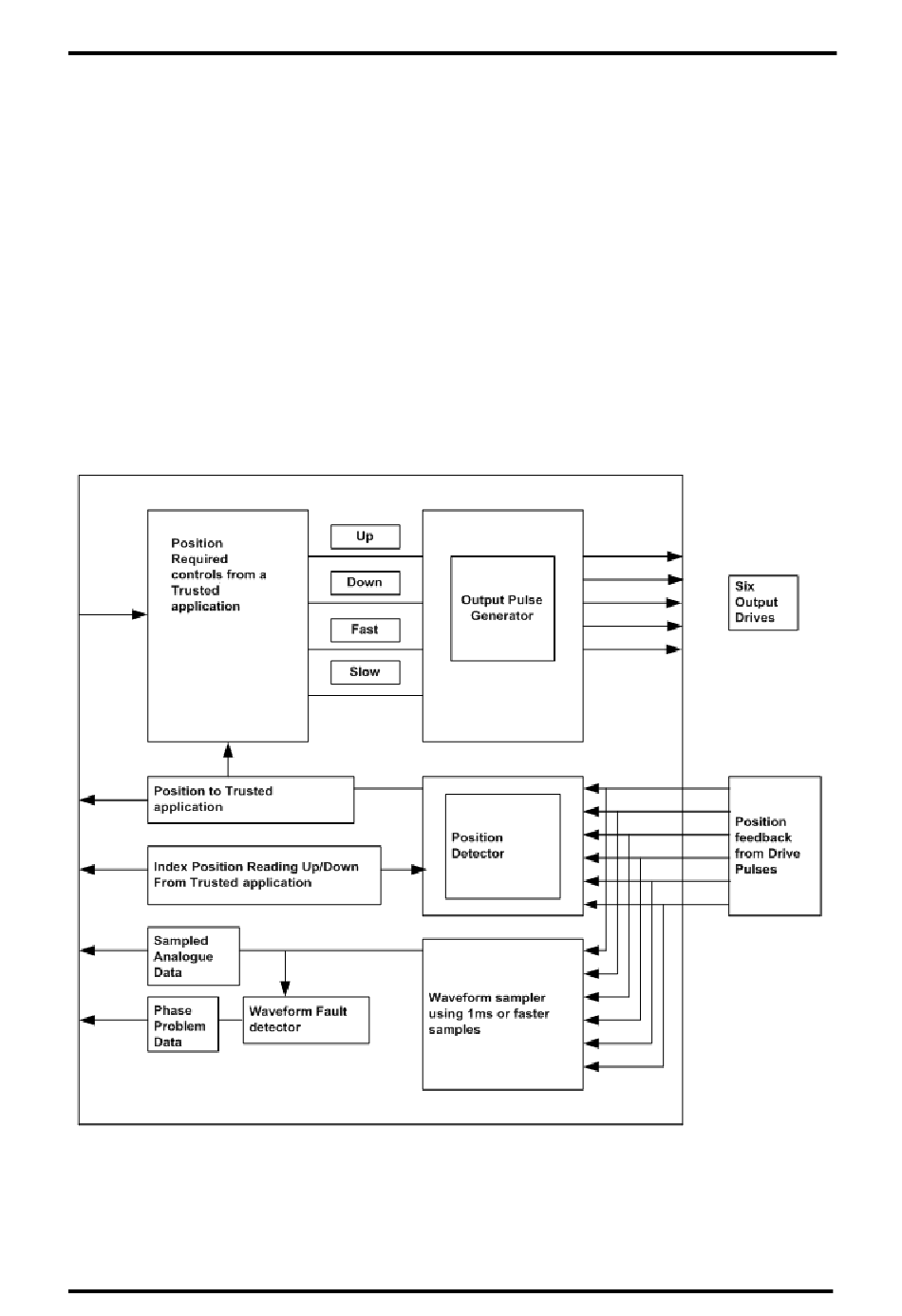

Figure 7 PG/M Functional Block Diagram
