PAGE 8 | GETTING STARTED
Connecting the NeuroNode Using EMG
Although the placement of the NeuroNode does not have to be exact, there are
some general guidelines for placing the device on the muscle site.

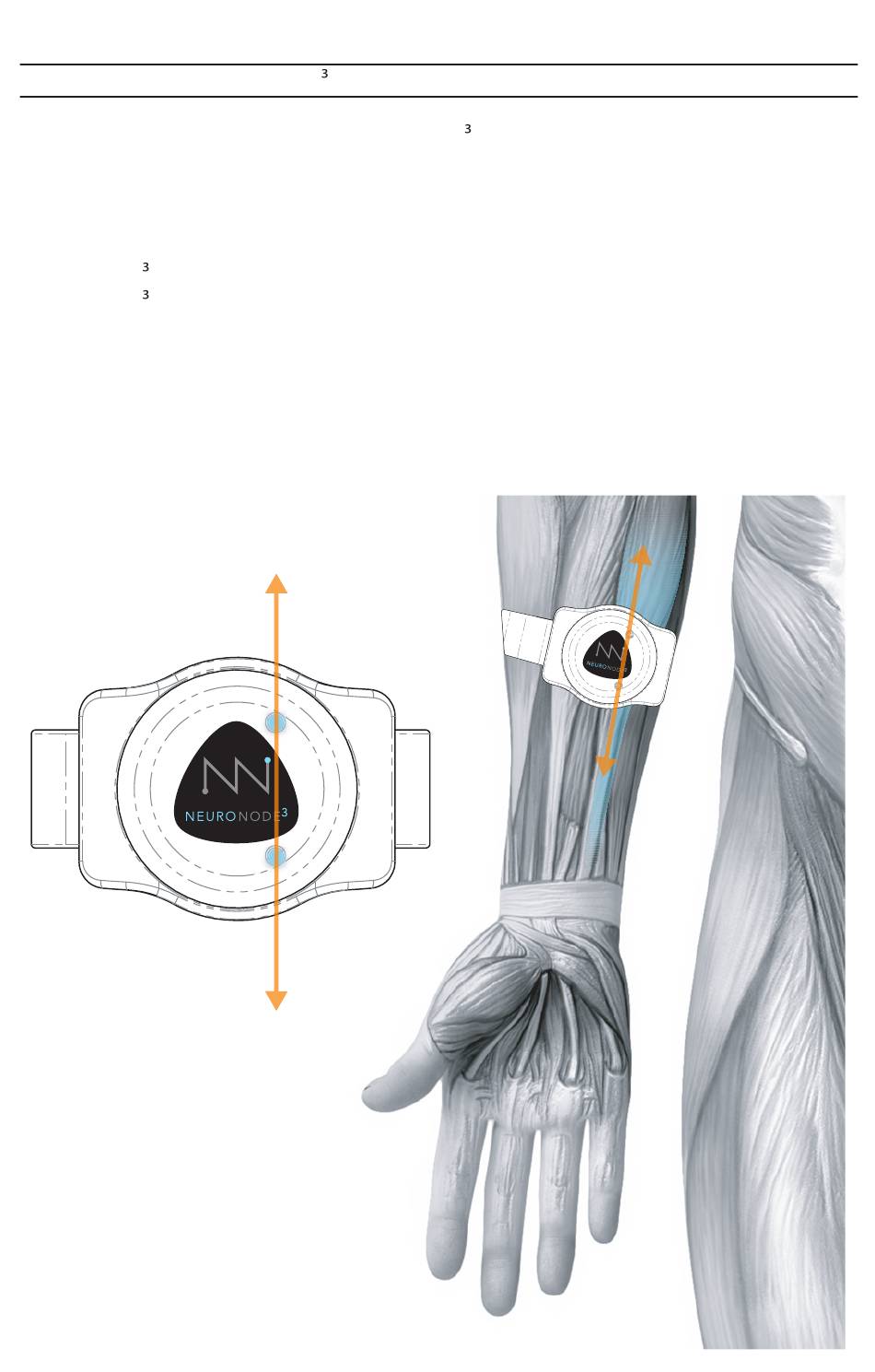

When using the Non-Adhesive Electrode and NeuroBand, or the "Triple" adhe-
sive electrode, the two active electrodes are located on the bottom of the
NeuroNode , as indicated by the Active Electrode Indicators on the top of the
NeuroNode . The active electrodes should be placed along the length of the
muscle chosen to generate a "Switch."
When using "Single" electrodes and the Leadwire Adapter Base, the two active
electrodes (white snaps) should be placed along the length of the muscle chosen
to generate a "Switch." The reference electrode (black snap) should be placed,
forming a triangle, to one side or the other of the two active electrodes.
